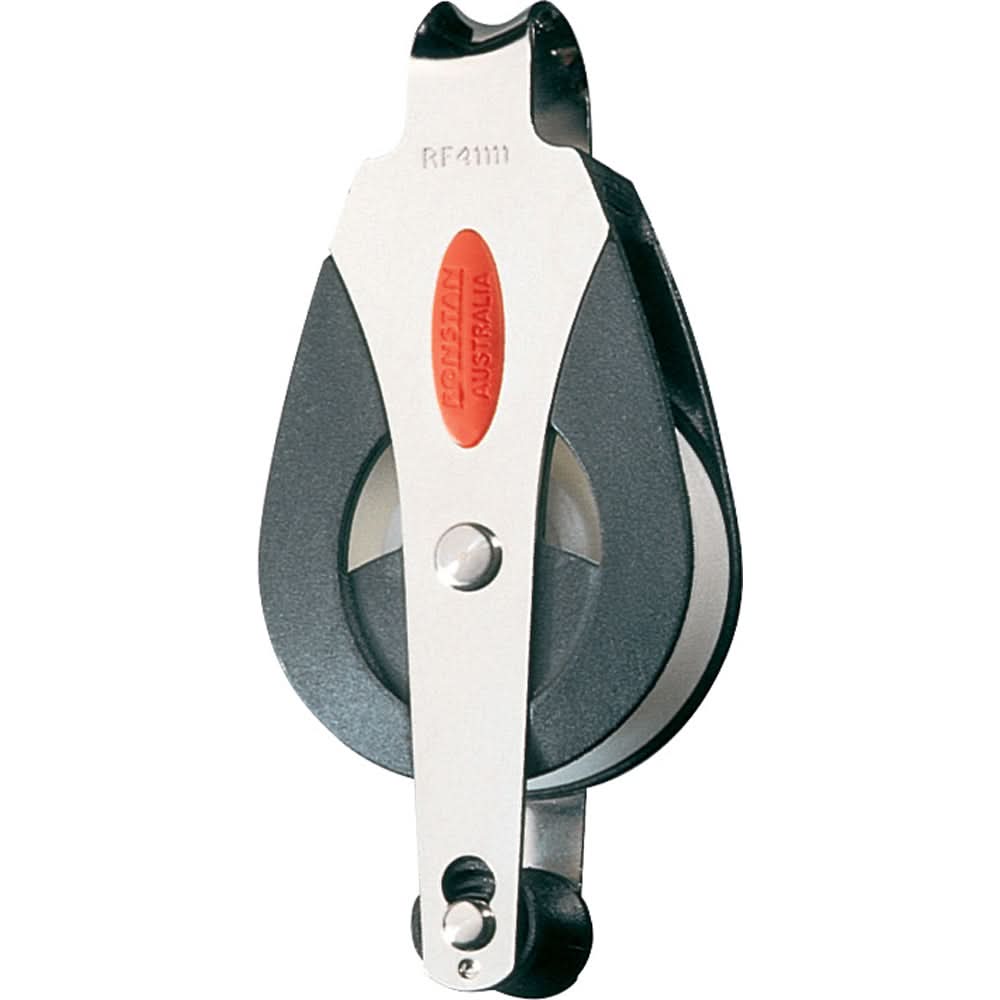

Ronstan Series 40 All Purpose Block - Single - Becket - Loop Top - RF41111

Series 40 All Purpose Block - Single - Stand Up

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.

Features:

• Exceptionally high working loads

• Low maintenance, long service life

• Self-lubricating sheave

• Snap fit removable becket pin

• Spare parts - RF41010 Replacement Becket Pin

Applications:

• Mainsheet

• Halyard

• Vang

• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')

Materials:

• U.V. stabilized Acetal sheaves

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

• Grade 316 stainless steel bearing race

• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø:40mm(1-9/16")
Max. Rope Ø:10mm(7/16")
M.W.L.:400kg(880lbs)
B. L.:1,000kg(2,200lbs)
Weight:61g(2.2oz)
Manufacturer : Ronstan
Manufacturer Part No : RF41111
UPC : 9316800243730
