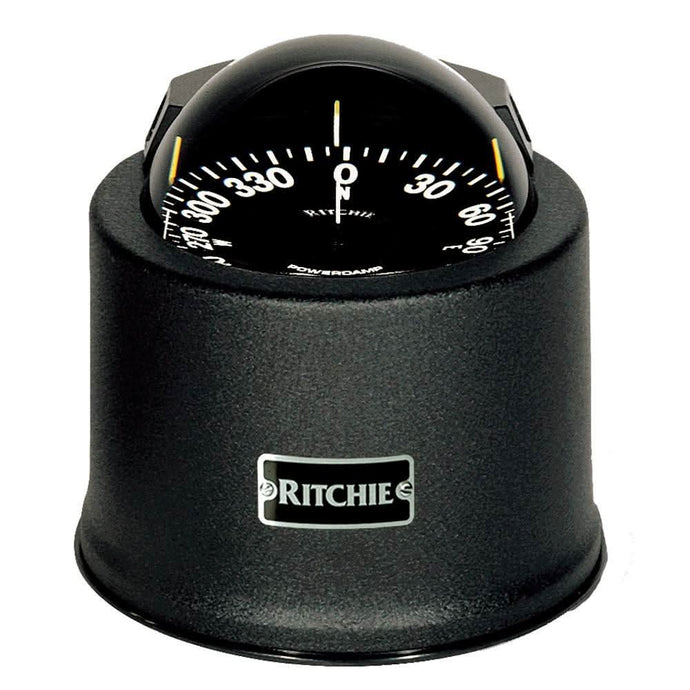

Ritchie SP-5-B GlobeMaster Compass - Black

Ritchie SP-5-B GlobeMaster Compass – Black

The Ritchie SP-5-B GlobeMaster Compass is a premium binnacle-mounted marine compass designed for serious offshore navigation on both powerboats and sailboats. Featuring a rugged black wrinkle-finish housing, it offers a modern, low-glare appearance while maintaining exceptional durability in harsh marine environments.

Built with a 5-inch (127 mm) open-face dial, the SP-5-B provides outstanding visibility and accuracy. It is available in multiple dial configurations, including 2°, 2° with points, or 5° increments, allowing you to choose the level of precision best suited to your navigation needs.

At the core of its performance is Ritchie’s PowerDamp® flat card technology, which minimizes oscillation and delivers smooth, stable readings—even in rough sea conditions. The compass also features full internal gimbals and built-in compensators, ensuring consistent accuracy and easy correction for magnetic deviation.

Designed for pedestal mounting, the GlobeMaster includes a lightweight, easy-to-align base that fits most popular sailboat pedestals. It also features 45° and 90° lubber lines for quick heading reference and 12V green LED illumination for clear nighttime visibility.

Built for longevity, the SP-5-B is 100% repairable and backed by Ritchie’s 5-year warranty, making it a trusted choice for long-distance cruising and professional marine use.

Key Technology & Performance

• Precision Viewing: Equipped with a 5" (127 mm) open-face dial that provides high visibility from multiple angles, ideal for locations where you look down at the compass to see your heading.

• PowerDamp® Stability: Features a specialized PowerDamp flat card with a lightweight baffle that eliminates dial spinning and "jumping" during high speeds or in rough sea conditions.

• Full Internal Gimbals: The dial remains level and functional despite the pitch and roll of the vessel, thanks to a full internal gimbal system.

• Universal Pedestal Fit: Features a lightweight, easy-to-align mounting base designed to fit all popular sailboat pedestals, including the Edson 300 series (6-7/8" top).

• Night Navigation: Includes integrated 12V green NiteVu LED lighting as standard, providing clear illumination that preserves night vision (24V and 32V options are also available).

• 100% repairable with 5-year warranty

In The Box

• (1) Ritchie SP-5-B GlobeMaster Compass - Black

• (1) Mounting Base and Hardware

• Built-in Compensators for Magnetic Deviation

• Installation, Compensation, and Maintenance Instructions

Specifications

• Brand: Ritchie Navigation

• Model: GlobeMaster SP-5-B

• Part Number: SP-5-B

• Mount Type: Binnacle / Pedestal Mount

• Dial Size: 5" (127 mm)

• Housing: Black Wrinkle Finish

• Lighting: 12V Green LED (optional 24V/32V)

• Weight: Approx. 6 lbs

• Application: Offshore navigation for sailboats and powerboats

Navigate with confidence using the Ritchie SP-5-B GlobeMaster Compass, delivering professional-grade precision, durability, and reliable performance for demanding marine environments.

Installation Tip: This compass is 100% repairable, making it a long-term investment for your boat. After installation, ensure you use the built-in compensators to adjust for magnetic deviation caused by nearby electronics or metal structures to maintain maximum accuracy.

Manufacturer : Ritchie
Manufacturer Part No : SP-5-B
UPC : 010342050458
