Raymarine TM265LH Transom Mount 1kw Chirp Transducer - A80013

Raymarine TM265LH Transom Mount 1kw Chirp Transducer - A80013

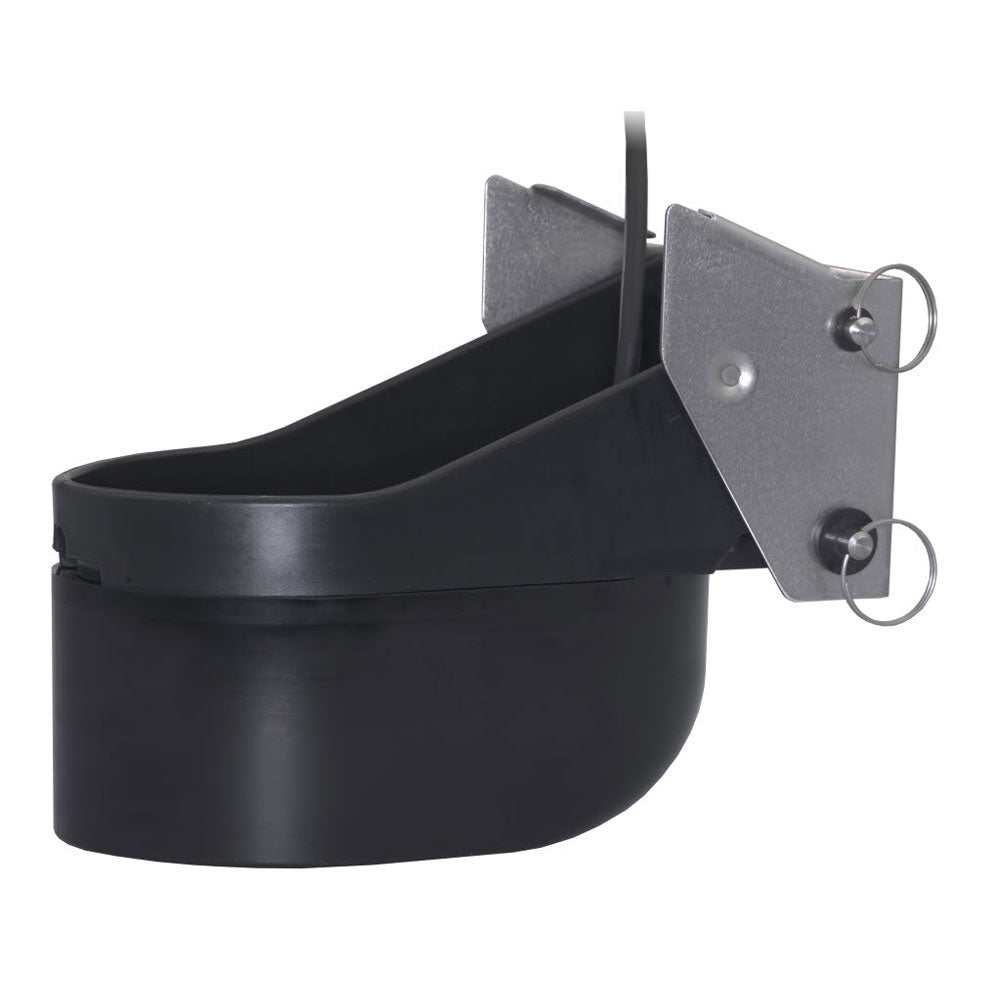

The Raymarine TM265LH Transom Mount 1kW CHIRP Transducer – A80013 is a high-performance sonar transducer designed to bring advanced CHIRP fish-finding and depth-sounding technology to your boat. Featuring low and high CHIRP frequency bands in a single transom mount unit, this transducer delivers excellent target separation, deep-water penetration, and detailed shallow sonar returns, making it ideal for fishing and depth monitoring on a wide range of powerboats and planing hulls. It also includes depth and fast-response water temperature sensing, so you can better understand water conditions and improve fish-finding precision.

Compatible with Raymarine CHIRP sonar modules and displays such as Axiom Pro, CP470, CP570, and legacy CHIRP systems, the TM265LH is engineered for performance, durability, and ease of installation.

🔧 Technical Specifications

Sonar Performance

• Power Rating: 1 kW (1000 W RMS) CHIRP output

• Frequency Ranges:

  • Low: 42 – 65 kHz (deep-water detection)

  • High: 130 – 210 kHz (high-resolution shallow imaging)

• Maximum Depth:

  • Low: Up to ~3,000 ft (914 m)

  • High: Up to ~1,000 ft (304 m)

• Beam Width:

  • Low: ~25° – 16°

  • High: ~10° – 6°

• CHIRP Range: Up to ~103 kHz of total usable bandwidth for better target separation

Depth / Temperature

• Depth: Yes – sonar depth returns

• Water Temperature: Fast-response temperature sensor included

Installation & Mounting

• Mounting Type: Transom Mount – designed for attachment to boat transoms

• Hull Compatibility: Fiberglass, wood or metal hulls with 0 – 25° transom/deadrise angles

• Cable Length: Approx. 33 ft (10 m) with 11-pin CHIRP connector

• Housing Material: Urethane with stainless-steel transom bracket (typical)

Compatibility

• Works with Raymarine CHIRP systems including Axiom Pro (RVX / RVM) and CP470 / CP570 sonar modules (and other CHIRP-ready Raymarine fishfinders)

⭐ Key Features

• Dual-band CHIRP sonar with low and high frequency bands in one transducer

• Excellent target separation in shallow and deep water thanks to wide CHIRP bandwidth

• Fast water-temperature sensing for accurate environmental data

• Transom mount design for easy installation on compatible boats

• Rugged urethane construction with stainless mounting hardware

• Long cable length with CHIRP connector for easy routing and connection

Manufacturer : Raymarine
Manufacturer Part No : A80013
UPC : 723193704189
