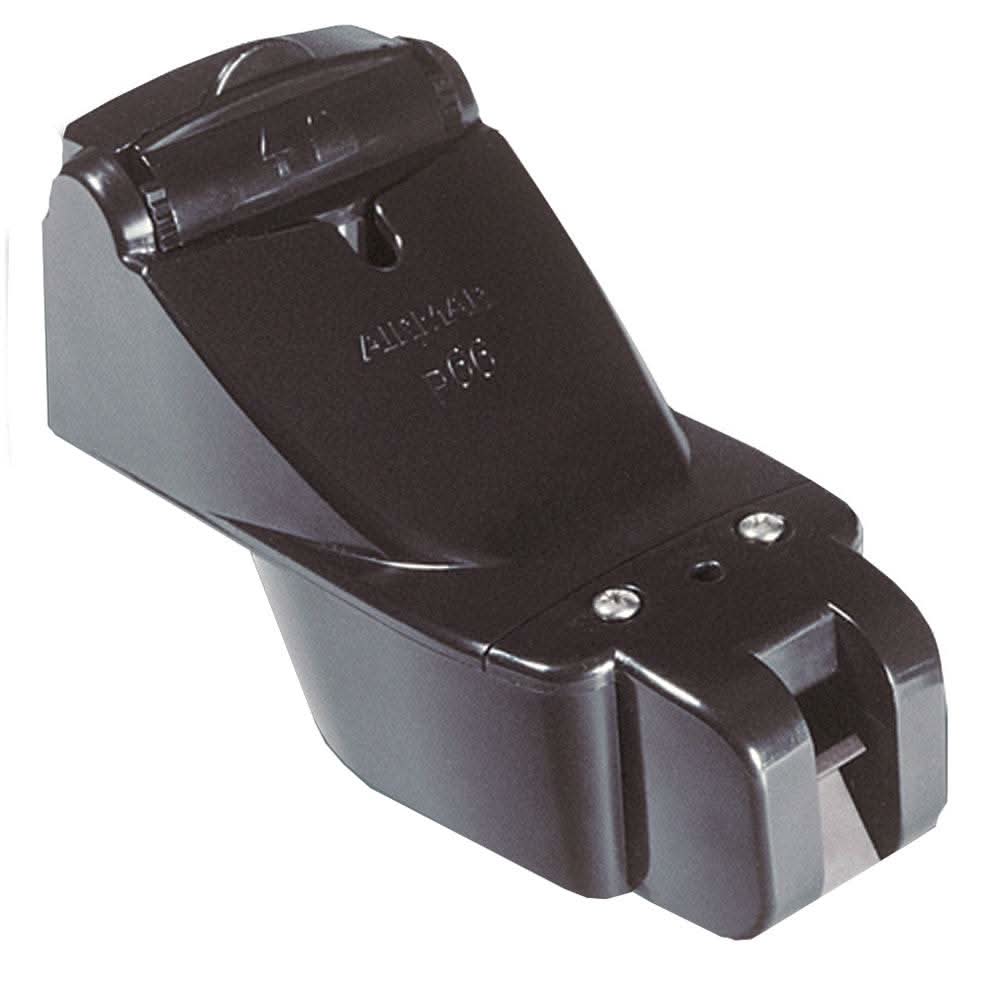

Raymarine Optional High Speed Transom Mount Transducer - E66054

The Raymarine E66054 Optional High Speed Transom Mount Transducer is a high-performance "Triducer" that provides depth, speed, and temperature data in a single unit. Engineered for high-speed powerboats, its hydrodynamic P66 housing features a rounded nose to reduce turbulence, ensuring clear sonar imagery and accurate readings even at cruising speeds.

Key Performance Features

• Three-in-One Data: Delivers precision Depth, Speed, and Temperature readings through one transom-mounted installation.

• Dual-Frequency Power: Operates at 50 kHz (45° beam) for deep-water tracking and 200 kHz (11° beam) for high-detail shallow-water resolution.

• Kick-Up Bracket: Includes a rugged plastic release bracket that protects the sensor from damage caused by floating debris or accidental impacts.

• Easy Maintenance: The sensor can be removed from the bracket without tools, and the paddlewheel assembly is fully replaceable.

Technical Specifications

• Part Number: E66054 (Airmar P66)

• Frequency: 50/200 kHz

• Power Output: 600W RMS

• Maximum Depth: 800–1,200 ft (50 kHz) / 400–700 ft (200 kHz)

• Cable Length: 30 ft (10m)

• Hull Material Compatibility: Metal, Wood, and Fiberglass

• Legacy Compatibility: Directly compatible with Raymarine DSM30, DSM300, CP300, and CP370 sounder modules.

Note for Modern Displays: If you are connecting this to a newer Axiom, a, c, e, or eS Series display, you will need the Raymarine E66066 Adapter Cable.
