Raymarine i40 Bidata Display System with Thru-Hull Transducers - E70145

Raymarine i40 Bidata Display System with Thru-Hull Transducers – E70145

The Raymarine i40 Bidata Display System (E70145) delivers critical depth and speed information in a sleek, easy-to-read instrument package designed for both sailboats and powerboats. This complete system combines a dedicated i40 Bidata display with high-quality thru-hull depth and speed/temperature transducers to provide accurate real-time readings for depth, speed through water, and water temperature—all from a single, compact interface.

Featuring a high-contrast, sunlight-readable LCD with red backlighting, the i40 Bidata display ensures excellent visibility in all lighting conditions on deck. With native SeaTalkng connectivity and backward compatibility with NMEA 2000 networks, this system integrates seamlessly into your Raymarine instrument network or can function as a standalone instrument set.

The thru-hull transducers included in this system deliver reliable underwater sensing for depth, speed, and temperature, helping you navigate safely and efficiently. Designed to match legacy ST60+ instrument footprints, the Raymarine i40 Bidata Display System installs easily and provides accurate, dependable performance that enhances situational awareness on every voyage.

📊 Technical Specifications — Raymarine i40 Bidata Display System (E70145)

📟 Display & Instrument

• Instrument Type: i40 Bidata multifunction display — simultaneously shows depth, speed through water, distance log/trip, and sea temperature on one compact screen.

• Display Format: High-contrast 2-line monochrome LCD with large digits for easy reading in varied light conditions.

• Backlighting: Integrated red backlight enhances visibility in low-light and nighttime conditions.

⚡ Power & Electrical

• Nominal Supply Voltage: 12 V DC (marine electrical systems).

• Operating Voltage Range: 10 V to 16 V DC.

• Current Consumption:

  • Typical: ~35 mA at 12 V DC.

  • Maximum: ~100 mA at 12 V DC.

🌐 Networking & Connectivity

• Network Interface: SeaTalk native connectivity; can communicate over SeaTalkng with an optional converter kit (sold separately).

• Transducer Interfaces: Built-in connectors for both thru-hull depth and thru-hull speed/temperature transducers.

🌊 Transducers (Included)

• Depth Transducer: Thru-hull depth sensor (typically Raymarine P7).

• Speed/Temperature Transducer: Thru-hull speed and water temperature sensor (typically Raymarine P371).

📏 Physical & Environmental

• Instrument Dimensions: 128 mm × 72 mm × 35 mm (approx. 5.04″ × 2.83″ × 1.4″).

• Waterproof Rating: IPx6 marine rating — splash- and spray-resistant.

• Operating Temperature: 0 °C to +70 °C (32 °F to 158 °F).

• Storage Temperature: –30 °C to +70 °C (–22 °F to 158 °F).

• Relative Humidity: Up to 93 %.

⚓ Installation & Use

• Mounting: Surface mount; optional trunnion mount kit available separately.

• Compatibility: Works with Raymarine autopilots and other SeaTalk network components; can serve as master or repeater instrument.

• Footprint: Matches the footprint of older Raymarine ST40 instruments, allowing easy retrofits.

📦 What's Included

• i40 Bidata instrument display

• Low-profile thru-hull depth transducer

• Low-profile thru-hull speed/temperature transducer

• Suncover for protection

• SeaTalk power cable and documentation

i40 SeaTalk Instruments - Bidata w/Thru-Hull Transducer

Compact and feature-packed instruments, the i40 series instruments are smart choice for boaters looking high performance and great value.

The i40 series is simple to operate thanks to the use of just three control buttons, i40 has extra-large digits and razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions.

These SeaTalk compatible instruments offer full integration with Raymarine autopilots and navigation equipment. The ultra-sleek design of i40 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. All i40 Instruments come with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i40 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 0.4 watts for superior run-time and excellent green credentials. The i40 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

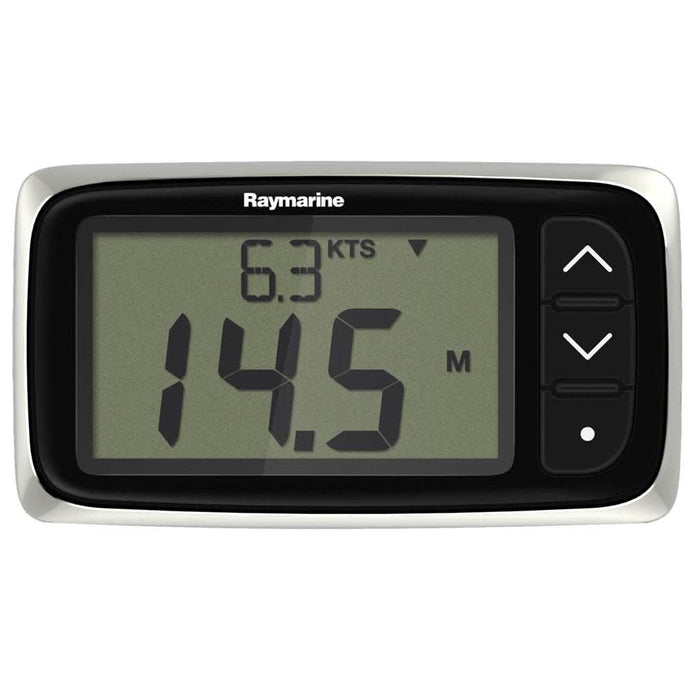

i40 Bidata Instrument
The Raymarine i40 Bidata offers all of the functionality of the Depth and Speed instruments combined in a single space-saving display. Like the other i40 Instruments, the Bidata is available as a complete system with depth and speed transducers or as a display-only solution for remote readout of depth and speed at another location.

The i40 Bidata's depth capabilities include easy-to-read displays of current speed, maximum speed, average speed, distance log, trip log as well as water temperature. Bidata also offers depth-related alarms and adjustments including shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm, and depth offset controls. Its speed capabilities include displays of current speed, maximum speed, average speed, distance log, trip log as well as water temperature.

i40 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.
• High contrast LCD displays with large digits for excellent visibility.
• Red backlighting for outstanding night-time visibility.
• Simple SeaTalk networking with other Raymarine instruments, autopilots and MFDs.
• Built-in transducer connections simplify installation.
• Small form factor saves space at the helm without sacrificing features.
