Raymarine HV-100 HyperVision Transom Mount Transducer - 6M Cable - HV100.02 New Version - E70643

Raymarine HV-100 HyperVision Transom Mount Transducer - 6M Cable - HV100.02 New Version - E70643

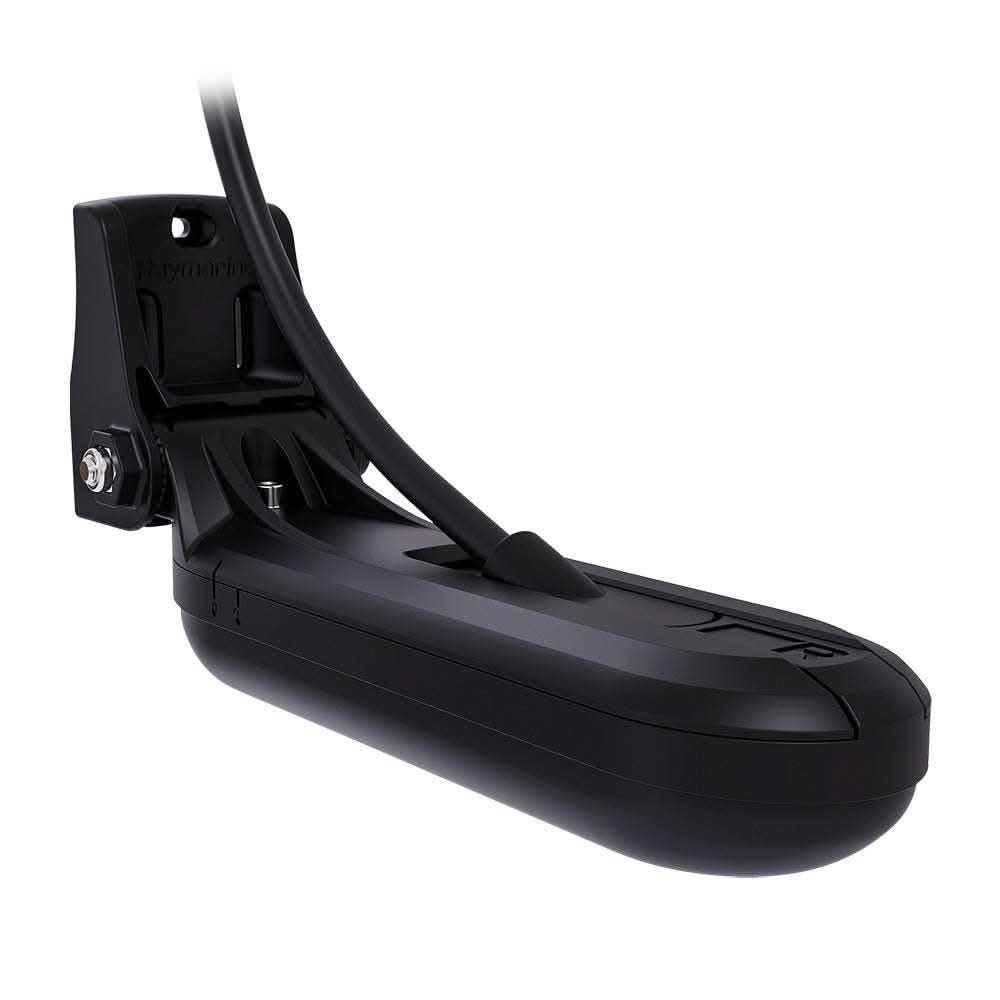

The Raymarine HV-100 HyperVision Transducer (E70643) is an all-in-one sonar solution designed specifically for the Element HV series of displays. The "HV100.02" is the latest version of this hardware, optimized for durability and precision.

High-Definition Imaging

This transducer utilizes 1.2 MHz HyperVision CHIRP technology to provide super-high-resolution imagery of fish and underwater structures. By using higher frequencies than traditional sonar, it delivers "photo-like" clarity in shallow to medium depths, making it easier to identify individual fish and subtle bottom features.

• 5-in-1 Sonar Capabilities: Simultaneously provides RealVision 3D, DownVision, SideVision, High-Frequency Conical CHIRP, and water temperature data.

• Dual Frequency Modes: Switch between 1.2 MHz Hyper mode for extreme detail (up to 125 ft) and 350 kHz Standard mode for greater range (up to 600 ft).

• High-Speed Tracking: The 200 kHz Conical CHIRP channel is optimized for high-speed bottom tracking at depths up to 900 feet.

• Durable Design: Constructed from rugged plastic and rated IPX8 waterproof, it is compatible with both fiberglass and metal hulls.

Technical Specifications

• Model: E70643 (HV-100.02)

• Frequency: 1.2 MHz / 350 kHz / 200 kHz

• Max Depth (Conical): 900 Feet

• Max Depth (3D/Side/Down): 300 Feet (Standard) / 125 Feet (Hyper)

• Cable Length: 6 Meters (19.7 ft)

• Beam Width: 180° (RealVision 3D) / 60° (DownVision)

• Material: High-Impact Plastic

Installation and Compatibility

The kit includes a stainless steel transom bracket and a built-in kick-up feature to protect the sensor from floating debris. It is designed for a direct "plug-and-play" connection to Raymarine Element 7, 9, and 12 HV models.

If your installation requires a longer run, I can find a Raymarine 4-Meter Extension Cable for this transducer. Would you like me to look for that?

Manufacturer : Raymarine
Manufacturer Part No : E70643
