Raymarine Evolution EV-150 Hydraulic Autopilot System Pack - T70330

Raymarine Evolution EV-150 Hydraulic Autopilot System Pack

The Raymarine Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The Raymarine EV-150 Autopilot system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.

Engineered for simplicity, the Raymarine EV-150 Autopilot eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The Raymarine EV-150 Autopilot system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running.

Anglers will also love the Raymarine EV-150 Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread.

The Raymarine EV-150 Autopilot system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes.

The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.

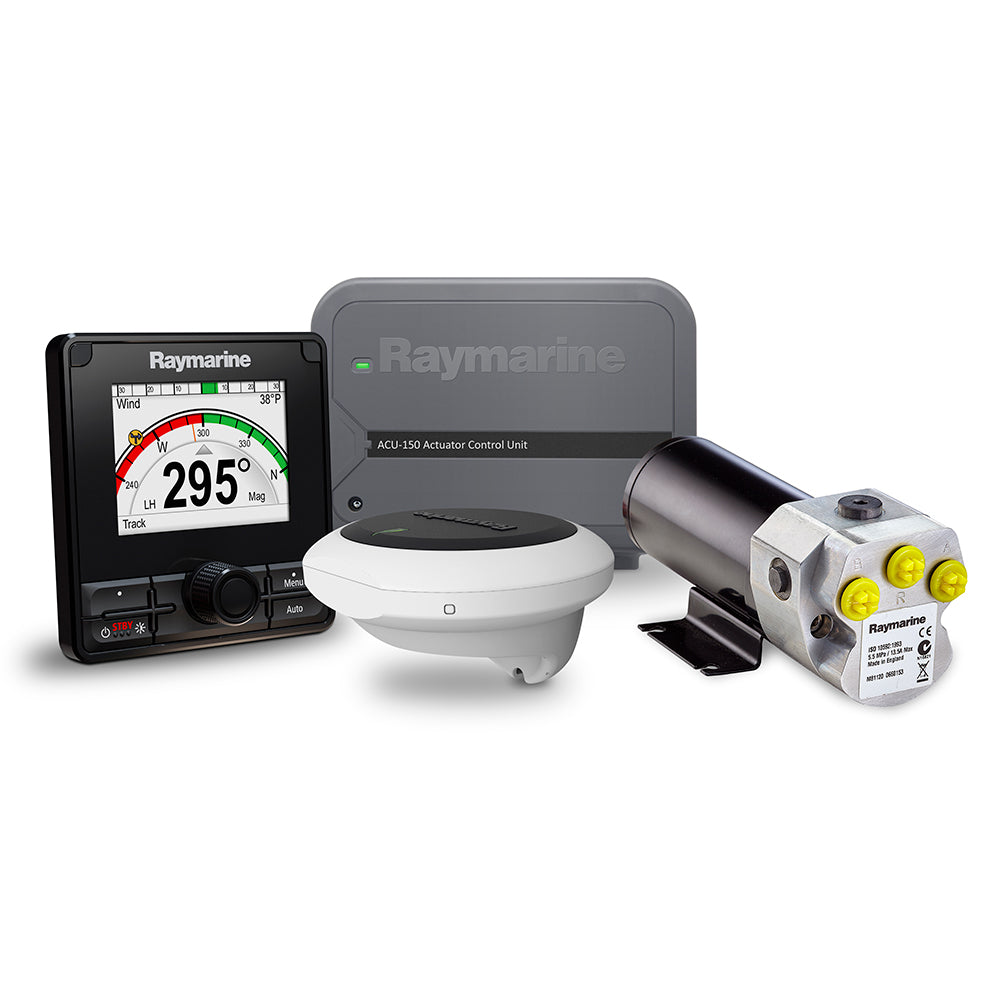

Raymarine EV-150 Autopilot Includes

• E70329 p70Rs Control Head
• E70096 EV-1 Sensor Core
• R70160 Evolution Cable Kit
• E70430 ACU-150 Actuator Control Unit
• M81120 Type 1 12v Hydraulic Pump

Technical Specifications — Raymarine EV-150 Hydraulic Autopilot System Pack (T70330)

⚡ Electrical

• Operating Voltage: 12 V DC only — designed for standard 12-volt marine electrical systems.

• Power Consumption: Low standby current for efficient power use (typical Raymarine Evolution levels).

🧠 Autopilot System

• Steering Type: Hydraulic steering systems — suitable for powerboats with hydraulic steering rams.

• Hydraulic Pump Included: Type 1 12 V hydraulic pump, compatible with piston capacities roughly 80 cc to 230 cc (4.9 – 14 cu in).

• Controller: p70Rs Autopilot Control Head — intuitive interface with dedicated autopilot modes and built-in patterns.

• Sensor: EV-1 9-axis intelligent sensor core — aerospace-grade heading and motion sensing for adaptive autopilot response.

• Actuator Control Unit: ACU-150 Actuator Control Unit — processes sensor and steering commands.

• Cabling Kit: R70160 Evolution Cable Kit — SeaTalkng/NMEA 2000 compatible wiring for easy integration.

📐 Performance & Features

• Hydro-Balance™ Technology: Automatically compensates for hydraulic system elasticity, steering asymmetry, and torque steer for smoother, more accurate course keeping.

• Evolution TrackIQ™ Algorithms: Delivers tighter track-keeping and faster track acquisition using vessel motion data (pitch, roll, yaw, and heave).

• Built-In Patterns: Includes fishing/trolling patterns (e.g., figure-8, circles) that allow hands-free operation during specific maneuvers.

🌐 Networking & Compatibility

• Network Compatibility: SeaTalkng / NMEA 2000 compatible, enabling integration with Raymarine chartplotters and multifunction displays for advanced control and display.

• Compass Safe Distance: Designed to meet typical marine electronics spacing requirements (exact safe distances vary by installation).

• Control Modes: Standby, Auto, Track, Pattern and more via the p70Rs interface.

📏 Physical & Environmental

• System Box Dimensions: Approx. 8″ H × 17″ W × 20″ L (package size; install components are separate).

• Pack Weight: Approx. 15.45 lb (7 kg) boxed system.

• Operating Temperature: Typical marine range (approximately –10 °C to +55 °C / 14 °F to 131 °F).

• Relative Humidity: Up to ~93% supported.

• Waterproof Ratings: Electronics are designed for marine environments (connector panel IPx2, drive electronics IPx6 when installed per Raymarine guidelines).

🚤 Application & Suitability

• Recommended For: Small to medium hydraulic-steered powerboats with single outboard or inboard engines.

• Steering Ram Capacity: Ideal for 80 cc to 230 cc (4.9 – 14 cu in) hydraulic ram systems.

• Installation: Professional installation recommended for correct hydraulic pump and helm integration.

📦 Included in the Pack

• p70Rs Autopilot Control Head

• EV-1 Sensor Core

• ACU-150 Actuator Control Unit

• Evolution Cable Kit (SeaTalkng)

• Type 1 12 V Hydraulic Pump

• Installation hardware and documentation
