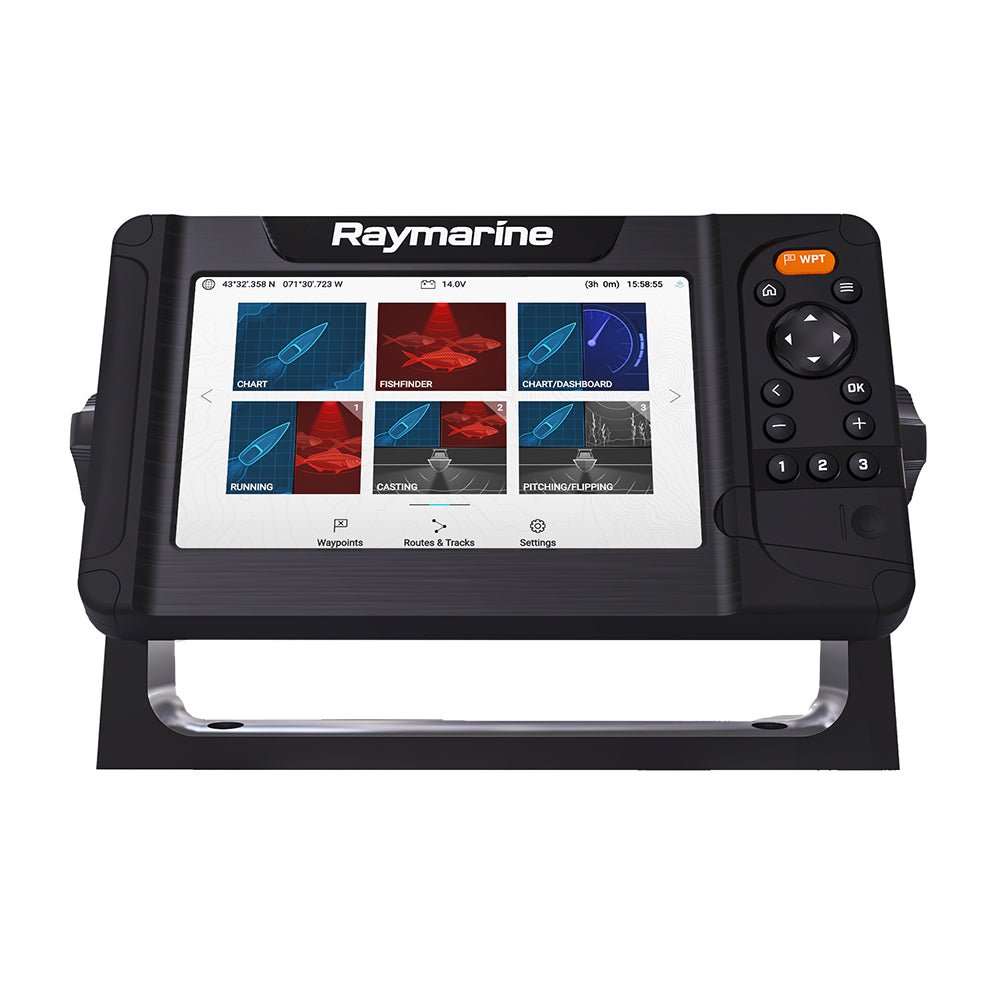

Raymarine Element 7 HV Chartplotter/Fishfinder - No Transducer - E70532

Raymarine Element 7 HV CHIRP Chartplotter & Fishfinder – No Transducer (E70532)

Knowledge is power—and the Element™ CHIRP sonar/GPS series gives you the upper hand when hunting for fish and their habitat. The Raymarine Element 7 HV is built for anglers who want to stay one step ahead. Featuring industry-leading 1.2 megahertz HyperVision™ sonar technology, this unit delivers the sharpest view of the underwater world. Experience photo-like clarity with DownVision, SideVision, and RealVision 3D, allowing you to identify structure, vegetation, and fish with unprecedented precision.

Driven by a powerful quad-core processor, the Element 7 HV offers instantaneous chart redraws and smooth 3D imaging, even when running multiple apps. The angler-centric LightHouse Sport operating system is fast and intuitive, featuring an oversized waypoint key for marking your favorite spots and three user-programmable keys for quick access to your most-used pages.

Key Features & Specifications:

• Superior Clarity: 1.2MHz HyperVision CHIRP sonar provides super high-resolution imaging up to 100 feet.

• All-in-One Sonar: Supports RealVision 3D, SideVision, DownVision, and high-frequency CHIRP.

• Sunlight Viewable Display: 7-inch optically bonded LCD with 1500 nits brightness for excellent visibility in all conditions.

• Powerful Performance: Quad-core processor ensures a lag-free experience and fast response times.

• Smart Mapping: Compatible with Raymarine LightHouse NC2, Navionics, and C-MAP charts.

• Personalized Maps: Create your own high-definition bathymetric maps on the fly with Raymarine RealBathy™.

• NMEA2000 Networking: Easily integrate with VHF radios, engines, tanks, and heading sensors.

What’s in the Box:

• Element 7 HV Display (E70532)

• Surface Mount Gasket & Trunnion Bracket with Hardware

• Sun Cover

• Power / NMEA2000 Cable (1.5m)

• Documentation Pack

[Note: This model (E70532) does not include a transducer. Compatible HyperVision™ transducers are sold separately.]

Features:

• High-visibility sunlight viewable 7” display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
