Raymarine CPT-S High CHIRP Bronze Thru-Hull Flush Mount Transducer - 0 Degree Angle - A80446

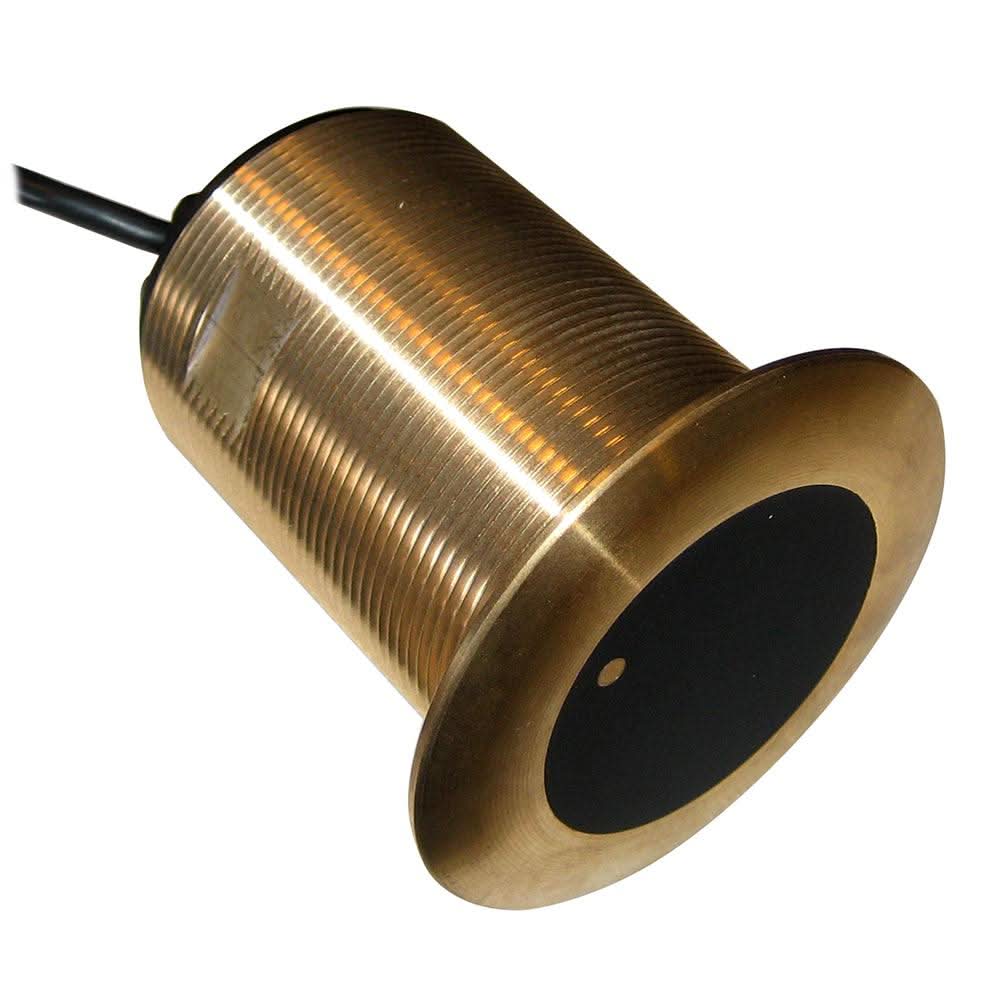

Raymarine CPT‑S High CHIRP Bronze Thru‑Hull Flush Mount Transducer – 0° Angle (A80446)

The Raymarine CPT‑S High CHIRP Bronze Thru‑Hull Flush Mount Transducer – 0° Angle (A80446) is a high‑resolution sonar transducer engineered for boats with minimal hull deadrise. Built with a marine‑grade bronze housing and flush‑mount design, this unit delivers High CHIRP sonar performance with a 25° conical beam that produces clear depth and fish‑finding returns up to approximately 900 ft (274 m). Its 0° angled element is optimized for hulls with 0 – 5° deadrise, ensuring the sonar beam remains vertical for accurate depth measurement and target separation. This transducer is compatible with Raymarine CHIRP‑enabled chartplotters and sonar modules, including Element S and Axiom Pro S series displays (adapter cable may be required for some models).

🔧 Technical Specifications

• Model: Raymarine CPT‑S High CHIRP Bronze Thru‑Hull Flush Mount Transducer

• Part Number: A80446

• Mount Type: Flush thru‑hull installation (bronze housing)

• Material: Bronze (marine‑grade)

• Sonar Type: High CHIRP fishfinder sonar

• Beam Angle: ~25° conical beam

• Hull Deadrise Compatibility: 0° – 5° deadrise (0° angled element)

• Maximum Depth: Up to ~900 ft (274 m)

• Cable Length: ~10 m (33 ft) factory‑attached

• Temperature Sensor: Integrated water temperature sensing

• Compatibility: Works with Raymarine Element S, Axiom Pro S, Axiom 2 Pro S, and all Axiom displays with sonar (adapter cables such as A80490 may be required for some models).

⭐ Key Features

• High CHIRP Sonar: Single element CHIRP provides excellent target separation and detail for depth and fish returns.

• Optimal for Low Deadrise Hulls: 0° angled element keeps the sonar beam vertical on hulls with little to no deadrise (0° – 5°).

• Bronze Flush Mount: Durable bronze housing and flush installation minimize drag and protect the transducer at speed.

• Broad Compatibility: Works directly with CP100 sonar and many Raymarine CHIRP chartplotters; adapter cables allow connection to Axiom Pro and Element HV series.

• Integrated Temp Sensor: Water temperature data adds insight for fishing and environmental monitoring.

• Up to ~900 ft Depth Range: Suitable for deep water fishing and depth sounding.

Manufacturer : Raymarine
Manufacturer Part No : A80446
