Raymarine B60-20, 20 Degree Tilted Element Transducer - E66085

Raymarine B60-20 20° Tilted Element Transducer – 20° Tilted Element Bronze Thru-Hull Transducer (E66085)

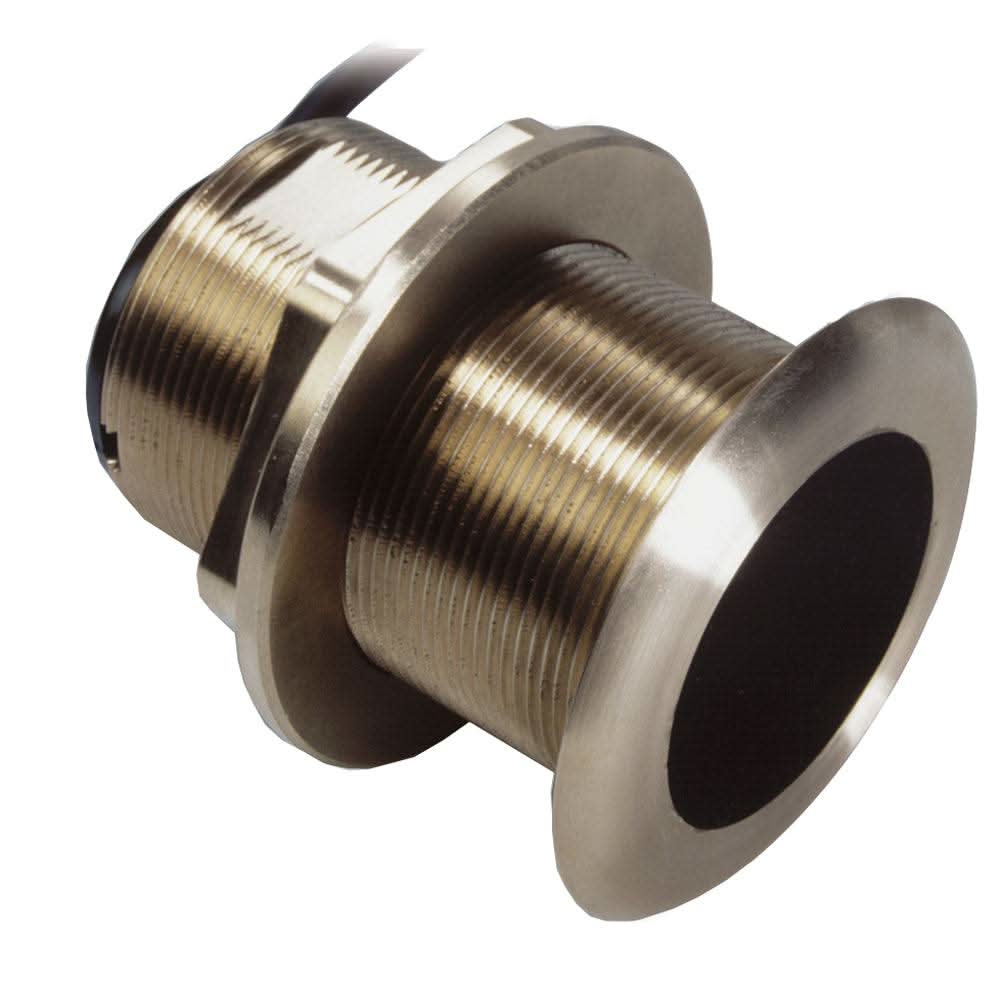

The Raymarine B60-20 20° Tilted Element Transducer (Model E66085) is a premium bronze thru-hull sonar transducer engineered to deliver accurate depth and temperature data for your boat’s fishfinder or depth sounder. Utilizing Tilted Element™ technology, the ceramic sonar element is installed at a 20° angle inside the housing to compensate for hull deadrise between 16° and 24° without needing a fairing block. The nearly flush bronze housing minimizes drag while maintaining a vertical sounding beam for clear echo returns and reliable performance in both shallow and deeper waters. It’s ideal for inshore, coastal, or freshwater fishing when paired with compatible Raymarine sonar modules like DSM250, DSM300/DSM300G, DSM30, or CP300.

🔧 Technical Specifications

• Model: Raymarine B60-20 Tilted Element Transducer – E66085

• Mount Type: Thru-hull installation (bronze)

• Material: Marine-grade bronze housing (ideal for fiberglass or wood hulls)

• Tilted Element: 20° fixed ceramic element for hull deadrise compensation (16°–24°)

• Power: 600 W RMS performance

• Frequencies: Dual 50 kHz / 200 kHz operation

• Beam Angles: ~45° @ 50 kHz (wide) / ~12° @ 200 kHz (narrow)

• Depth Capability:
  • Low frequency: up to ~1,200 ft (~366 m)
  • High frequency: up to ~700 ft (~213 m)

• Temperature: Integrated water temperature sensor

• Cable: ~33 ft (10 m) standard cable with DSM-style connector

• Hull Compatibility: Suitable for fiberglass or wood hulls (bronze)

• Drag: Very low-profile housing extends only ~5 mm (3/16″) outside hull

⭐ Key Features

• Tilted Element™ Technology: Ceramic element fixed at 20° to provide automatic deadrise compensation, keeping the sonar beam vertical without needing a separate fairing block — improves depth accuracy.

• Dual-Frequency Capability: 50/200 kHz operation gives versatile performance — deep bottom tracking on low frequency and better resolution on high frequency.

• Integrated Temperature sensing: Adds water temperature readings alongside depth data.

• Flush, Low-Profile Design: Minimizes hull obstruction, drag, and impact on performance, while delivering stable sonar returns.

• Bronze Construction: Durable marine-grade housing suited for fiberglass or wood hulls and longevity in saltwater conditions.

• Wide Compatibility: Direct fit with Raymarine DSM250, DSM300/DSM300G, DSM30, CP300 modules; adapter cables may allow compatibility with additional systems.

Manufacturer : Raymarine
Manufacturer Part No : E66085
UPC : 723193660850
