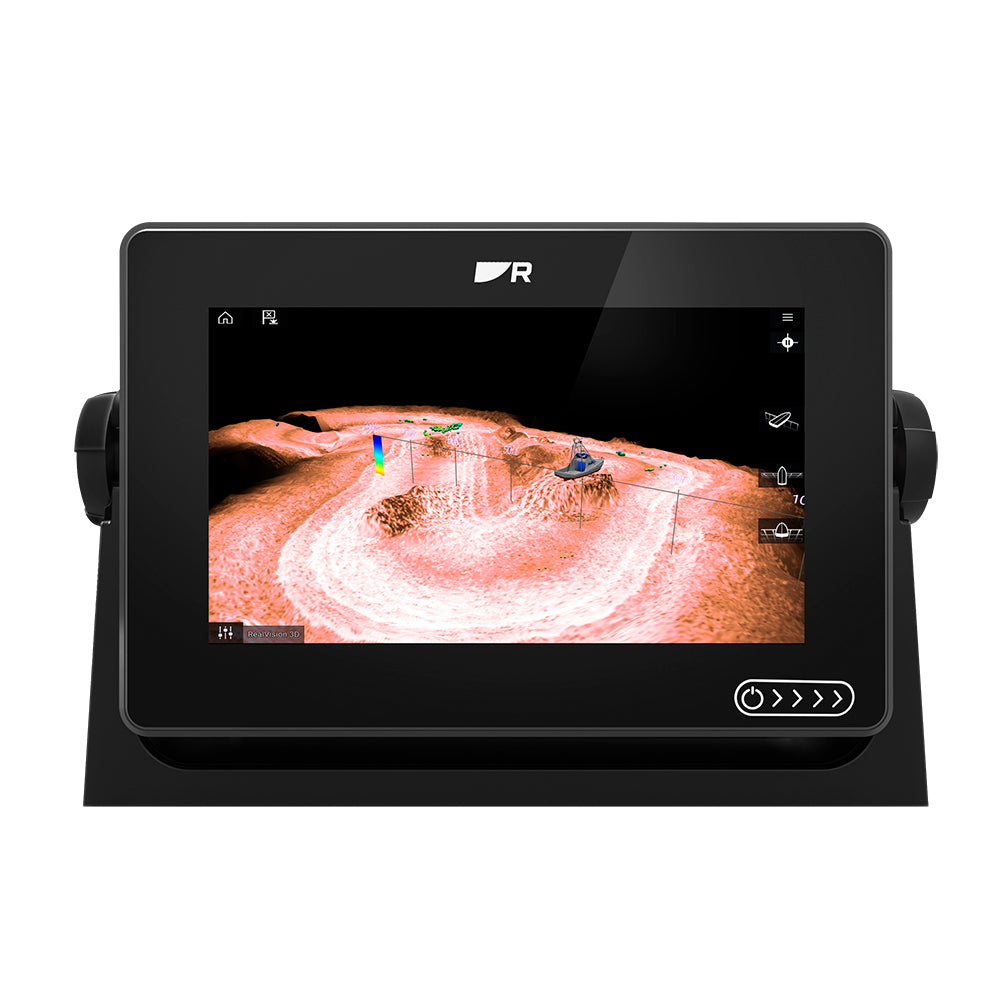

Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder w/Lighthouse North America Chart - E70635-00-102

Raymarine Axiom+ 7 RV - 7" Chartplotter/Fishfinder with LightHouse North America Chart - E70635-00-102

Take your navigation and fishing to the next level with the Raymarine Axiom+ 7 RV Chartplotter/Fishfinder. Powered by a high-performance quad-core processor, the Axiom+ delivers lightning-fast chart redraws, smooth touchscreen operation, and advanced sonar capabilities in a compact 7-inch multifunction display. Preloaded with LightHouse North America Charts, this all-in-one navigation system is ideal for freshwater, inshore, and coastal anglers who demand precision, speed, and expandability.

Built-in RealVision™ 3D sonar combines CHIRP DownVision™, SideVision™, conventional High CHIRP sonar, and 3D imaging to provide incredibly detailed underwater views of fish, structure, and bottom contours. The brilliant IPS display is up to 25% brighter than previous models and features Raymarine's HydroTough™ nano-coated glass, ensuring exceptional visibility and responsive touch control even in wet conditions.

Designed to grow with your vessel, the Axiom+ easily networks with Quantum radar, Evolution autopilots, FLIR thermal cameras, marine audio systems, IP cameras, AIS, and additional Axiom displays via RayNet Ethernet, NMEA 2000, Wi-Fi, and Bluetooth connectivity.

Features

• 7" high-resolution IPS touchscreen multifunction display

• Includes LightHouse North America Charts

• Built-in RealVision™ 3D sonar

• High CHIRP, CHIRP DownVision™, CHIRP SideVision™, and 600W traditional CHIRP sonar

• Powerful quad-core processor for fast chart rendering and smooth performance

• Up to 1,800-nit brightness for outstanding daylight visibility

• HydroTough™ nano-coated display repels water, oil, and fingerprints

• Built-in 10 Hz GPS/GNSS receiver for highly accurate positioning

• Supports LightHouse, Navionics®, and C-MAP® charts

• Expandable with Quantum radar, FLIR cameras, Evolution autopilot, AIS, IP cameras, and more

• Integrated Wi-Fi and Bluetooth connectivity

• RayNet Ethernet and NMEA 2000 networking

• Single microSDXC card slot for charts and data storage

• LightHouse OS with customizable interface and intuitive touchscreen controls

Specifications

• Display Size: 7"

• Display Resolution: 1024 × 600 (WSVGA)

• Display Type: IPS Multitouch Touchscreen

• Brightness: Up to 1,800 nits

• Internal Storage: 16 GB (approximately 14 GB usable)

• GPS: Integrated 10 Hz GPS/GNSS receiver

• Sonar:

  • RealVision™ 3D

  • CHIRP SideVision™

  • CHIRP DownVision™

  • High CHIRP

  • 600W Dual-Frequency (50/200 kHz)

• Networking:

  • RayNet Ethernet

  • NMEA 2000

  • Wi-Fi

  • Bluetooth 4.0

  • USB Micro-B

• Chart Compatibility: LightHouse Charts, Navionics®, C-MAP®

• Operating Voltage: 8–16 VDC (12V nominal)

• Waterproof Rating: IPX6/IPX7

• Part Number: E70635-00-102

In the Box

• (1) Raymarine Axiom+ 7 RV 7" MFD Display

• (1) LightHouse North America Charts (Pre-loaded or on MicroSD)

• (1) Trunnion Mount Kit with Knobs

• (1) Surface/Flush Mount Kit with Gasket & Hardware

• (1) Suncover / Protective Guard

• (1) Power/Data Cable (1.5 meter)

• (1) DeviceNet Female to SeaTalkng Adaptor Cable (120mm)

Perfect For

• Freshwater and coastal anglers

• Center consoles

• Bay boats

• Bass boats

• Offshore fishing vessels

• Cruisers seeking premium navigation and fishfinding in a compact display
