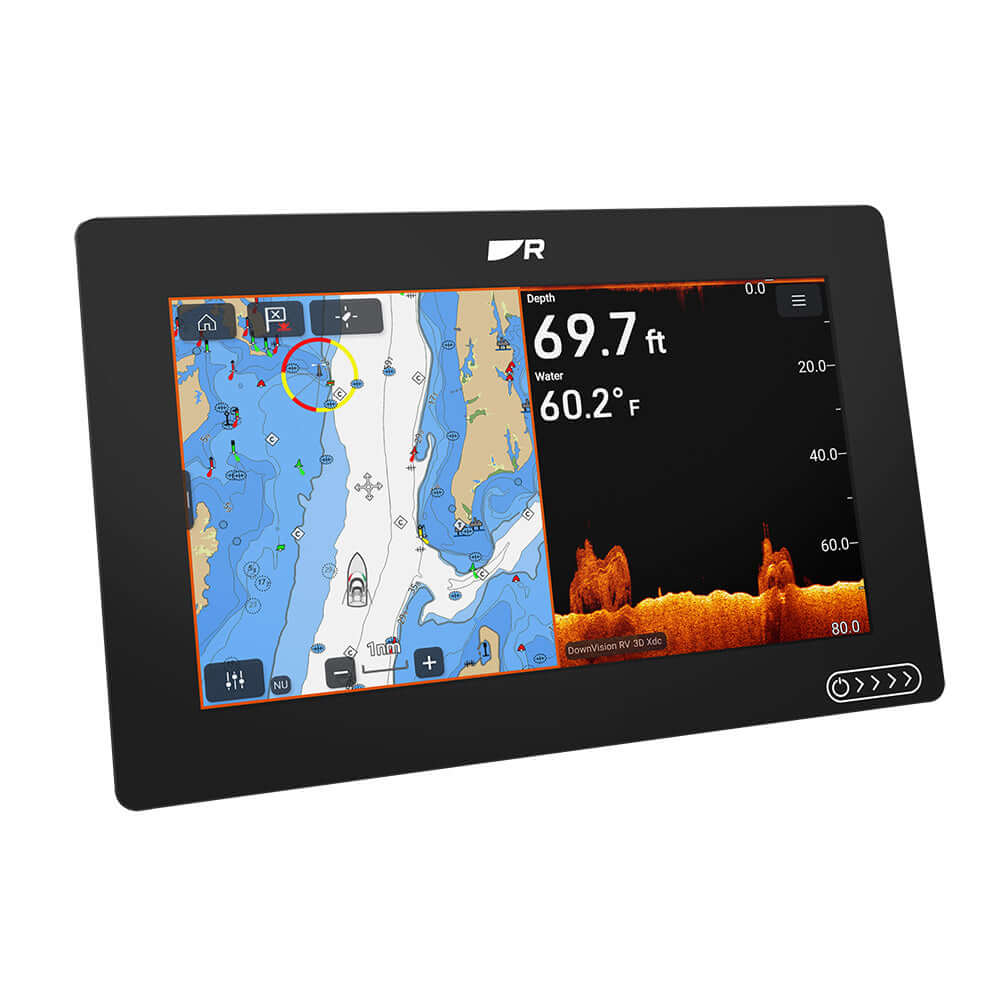

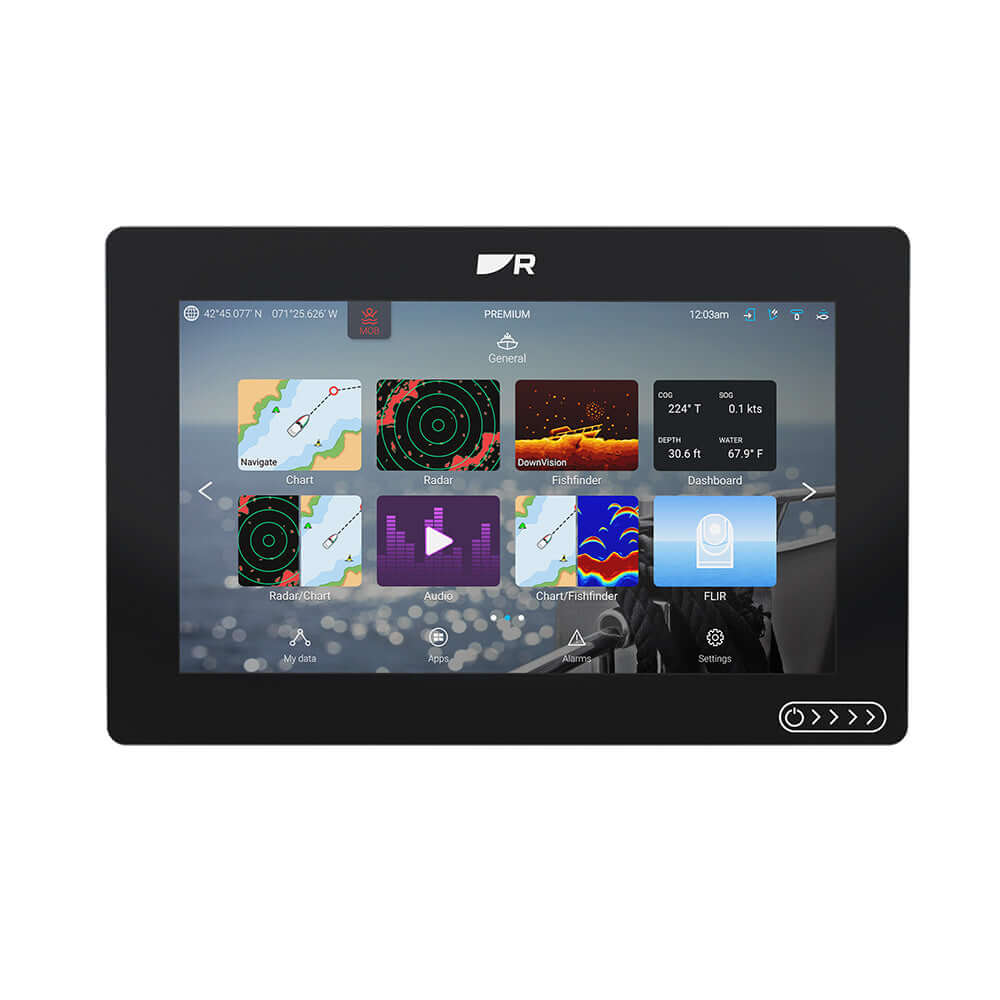

Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer - E70723

Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder with RealVision 3D Sonar – No Transducer – E70723

Take your on-water navigation and fishing to the next level with the Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder (E70723). Featuring a powerful quad-core processor and an intuitive LightHouse operating system, this advanced multifunction display delivers lightning-fast performance and a seamless user experience.

Equipped with RealVision™ 3D sonar capability, the Axiom 2 RV provides incredibly detailed underwater views, including DownVision, SideVision, and CHIRP sonar—when paired with a compatible transducer (sold separately). The brilliant 9-inch high-definition display offers exceptional clarity and visibility in all lighting conditions, making it easy to navigate, locate fish, and interpret sonar data with precision.

Built for serious anglers and boaters, this unit supports advanced networking, allowing integration with radar, autopilot, AIS, and other Raymarine systems for a fully connected marine experience.

Key Features:

• HydroTough™ Display: The screen features a specialized nano-coating that repels water, oil, and smudges. This ensures the touchscreen remains responsive even when wet and stays easy to clean.

• Integrated RealVision 3D: Supports CHIRP DownVision, SideVision, High-Frequency CHIRP fish finding, and RealVision 3D imagery all through a single 25-pin connection.

• LightHouse 4 OS: Powered by Raymarine’s most intuitive operating system, allowing for easy personalization and access to apps like Netflix, Spotify, and YouTube.

• Expanded Networking: Features a RayNet Gigabit Ethernet port for connecting radar, additional displays, or thermal cameras, plus NMEA 2000 and Bluetooth connectivity.

• 9" high-resolution touchscreen display with fast, responsive performance

• Built-in RealVision™ 3D sonar capability (transducer required, not included)

• Supports CHIRP, DownVision, and SideVision sonar technologies

• Powered by LightHouse OS for intuitive navigation and control

• Quad-core processor for smooth multitasking and fast chart redraws

• Expandable system integration with radar, autopilot, AIS, and more

• Wi-Fi and Bluetooth connectivity for mobile device integration

• Rugged, waterproof design built for harsh marine environments

What’s In The Box?

• (1) Axiom 2 RV 9" MFD

• (1) Trunnion Bracket Kit

• (1) Suncover

• (1) Panel Mount Gasket for Surface Mounting

• (1) Power/NMEA 2000 Cable (1.5m Power / 0.5m NMEA)

• (1) M5 x 58 Threaded Studs (x4) and Thumb Nuts (x4)

• (1) Documentation Pack

Whether you're navigating unfamiliar waters or targeting your next big catch, the Raymarine Axiom 2 RV 9" delivers cutting-edge technology, precision mapping, and superior sonar performance in one powerful unit.

Compatibility Note

This model is the "No Transducer" version. To utilize the sonar features, you will need to pair it with a compatible transducer, such as the RV-100 All-In-One Transom Mount. It is also compatible with CPT-S style transducers using an optional adapter cable (A80490).

BRAND: Raymarine
