Raymarine AIS5000 AIS Transceiver for Maritime First Responders - E70529

Raymarine AIS5000 AIS Transceiver – AIS Transceiver for Maritime First Responders (E70529)

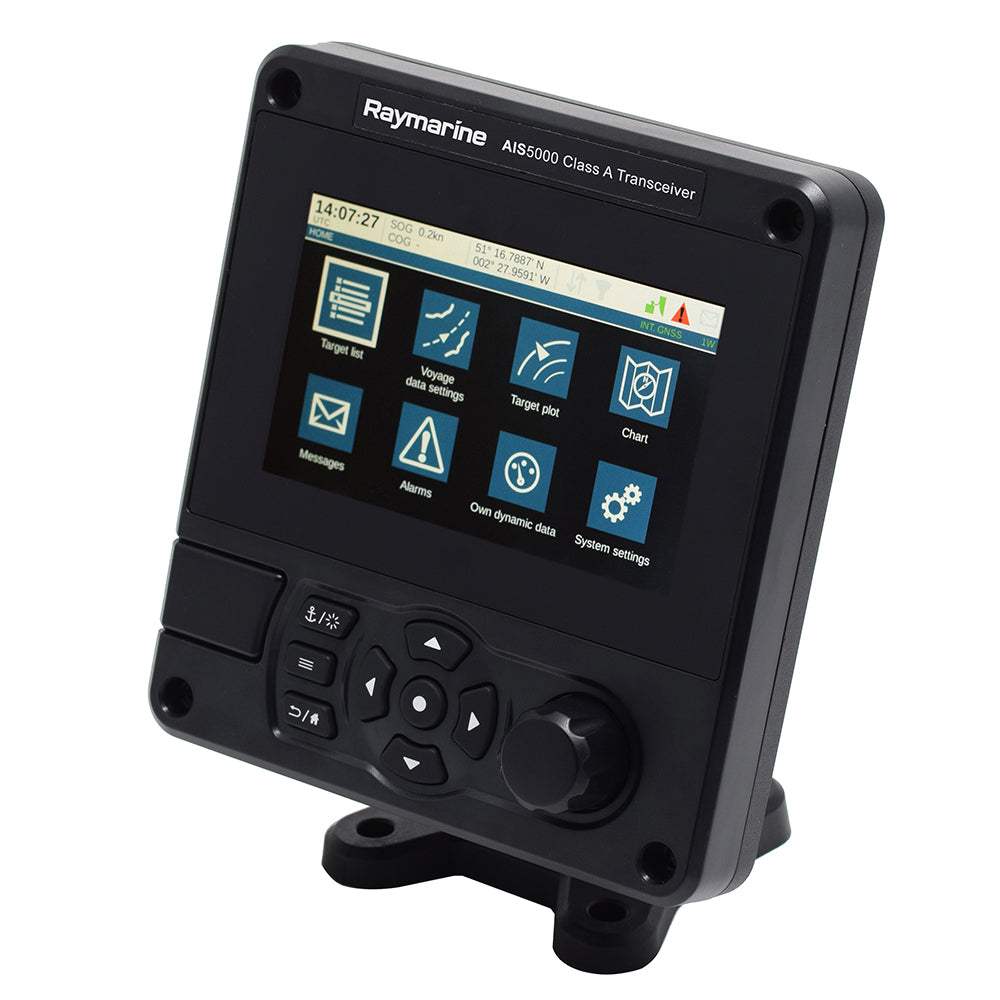

The Raymarine AIS5000 AIS Transceiver (E70529) is a rugged, Class A Automatic Identification System (AIS) transceiver designed for maritime first responders, search & rescue (SAR), law enforcement, and commercial vessels. It delivers fourth-generation AIS network capability with features tailored for demanding maritime operations. Engineered to withstand harsh offshore environments and certified to the highest waterproof, shock, and vibration standards, the AIS5000 enhances situational awareness with secure messaging, tactical tracking, and advanced AIS functions. It integrates seamlessly with Raymarine LightHouse OS encrypted multifunction displays for secure ship-to-ship and ship-to-shore data exchange.

🔧 Technical Specifications

Model: AIS5000 Class A AIS Transceiver – E70529

General

• Type: Class A Automatic Identification System (AIS) transceiver (transmit/receive)

• Intended Use: Maritime first responders, SAR, law enforcement, commercial operations (

• Certifications: Meets IEC AIS Class A standards & rugged marine environment standards (waterproof, shock, vibration)

• Power: 12–24 V DC supply; < 12 W power consumption

• Weight: ~2 kg (4.4 lb)

• Dimensions: ~152 × 165 × 79 mm (5.98″ × 6.50″ × 3.11″) (

AIS Performance

• Channels: 1 transmit, 3 receive (Class A transceiver)

• Frequency Range: 156.025 – 162.025 MHz (VHF band)

• Transmit Power: 1 W or 12.5 W (automatic switching)

• Modulation: CMSK-TDMA (AIS standard)

• Receiver Sensitivity: ~–107 dBm @ 20 % PER

GNSS & Navigation

• GPS/GNSS Receiver: Integrated 72-channel dual GPS + GLONASS for precise positioning

• GNSS Antenna: Included with unit

Networking & Interfaces

• NMEA 2000: Micro connector for network data sharing

• NMEA 0183: Multiple bidirectional ports (IEC 61162-1 & IEC 61162-2)

• VHF Antenna Connector: Standard VHF AIS antenna input included

• GNSS Antenna Port: Included

• Optional Junction Box: Available for expanded shipboard sensor / ECDIS connectivity

Environmental

• Waterproof: IPx6 & IPx7 rated

• Standards: IEC 60945 “Protected” maritime category

• Operating Temp: ~–15 °C to +55 °C (5 °F to 131 °F)

In the Box

• AIS5000 Transceiver Unit

• Mounting Bracket

• Power Cable

• Junction Box

• GNSS Antenna

• Interface Cables

• Quick Start Guide & Literature Pack

⭐ Key Features

• Class A AIS Transmission & Reception: Full AIS send/receive capability for identification, safety, and maritime domain awareness.

• Fourth-Generation AIS Tech: Enhanced speed, range, and processing performance.

• Secure Messaging & BFT: Integrates with encrypted LightHouse OS MFDs for Blue Force Tracking (BFT) and secure text/status sharing among friendly units.

• SAR and MOB Support: Built-in Man-Overboard (MOB) and SAR transponder tracking and management systems.

• Silent/Receive-Only Mode: Useful for EMCON/anti-piracy operations.

• Robust Marine Design: Certified waterproof, shock-resistant, and vibration-tolerant for extreme environments.

• Flexible Mounting: Bulkhead, overhead, desktop, or surface mount options.

• NMEA 0183 & NMEA 2000 Networking: Integrates with onboard electronics and displays.

What's in the Box?

• E70529 AIS5000 Tranceiver
• A80586 Mounting Bracket
• A80587 Power Cable
• A80588 Junction Box
• A80589 GNSS Antenna
• A80593 Interface Cable (x2)
• LIT70279 AIS5000 Literature Pack

Manufacturer : Raymarine
Manufacturer Part No : E70529
