Raymarine AIS4000 Class A Automatic Identification System (AIS) Transceiver - E70601

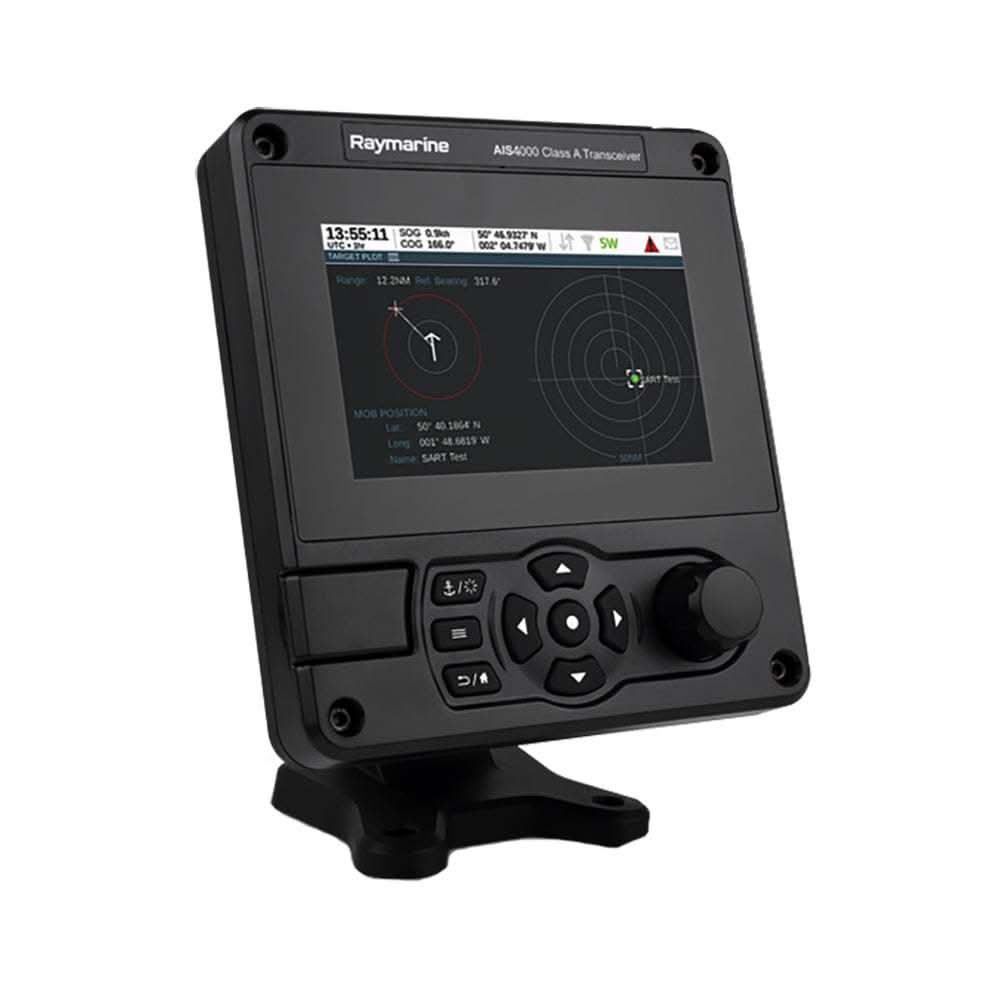

The Raymarine AIS4000 (E70601) is a commercial-grade Class A AIS transceiver designed for SOLAS-compliant vessels, luxury yachts, and high-seas shipping. Unlike standard recreational units, it features a dedicated 5-inch color display and 4th-generation AIS technology for superior processing speed and range.
Elite Navigation and Safety
The AIS4000 is engineered to operate as a standalone navigation tool or as the heart of a networked bridge system. It provides critical CPA/TCPA (Closest Point of Approach) alarms and features an integrated Man Overboard (MOB) tracking system to enhance crew safety in emergencies.
-
SOLAS & Inland Waterway Certified: Fully compliant with international regulations for commercial shipping and deep-water navigation.
-
Integrated 5" Color Display An 800 x 480 pixel screen provides instant access to target lists, radar-style plots, and optional C-MAP ENC mapping.
-
AHRS Stabilization: Features an internal sensor that compensates for boat motion, ensuring your transmitted position and received data remain stable in rough seas.
-
Broad Connectivity: Built-in Wi-Fi, NMEA 2000, and multiple NMEA 0183 ports allow for seamless data sharing with MFDs, ECDIS systems, and mobile devices.
Technical Specifications
| Feature | Specification |
| AIS Class | Class A (Transmit & Receive) |
| Display | 5" Full-Color LCD (800 x 480) |
| Output Power | 1W or 12.5W (Automatic) |
| Networking | NMEA 2000, NMEA 0183 (x6), Wi-Fi |
| GNSS Support | GPS, GLONASS, and BeiDou (72 Channels) |
| Waterproofing | IPX6 and IPX7 Rated |
| Included in Box | AIS4000 Unit, GNSS Antenna, Power/Data Cables, Junction Box |
Advanced Class A AIS Capabilities:
- AIS4000 is a full-function Automatic Identification System transceiver certified for SOLAS and Inland Waterway applications.
- Fourth generation AIS technology for expanded speed, range, and processing performance
- Full color target display with optional C-MAP ENC mapping
- Integrated Man Overboard/PLB alerting and tracking system
- CPA/TCPA data and alarms
The full-featured AIS4000 brings a level of functionality to Class A transceivers:
- Large 5” 800 × 480 color display
- Integrated Wi-Fi
- NMEA 2000
- Easy-to-use, intuitive interface
Designed for harsh conditions, AIS4000 is right at home on any vessel class:
- Certified to the highest industry standards for waterproofness, shock, and vibration
- Compact enclosure with NMEA2000 and NMEA0183 connectivity
- Junction box included for expanded shipboard sensor and ECDIS connectivity
- Flexible overhead, bulkhead, desktop, and surface mount options
Features:
- Large 5” 800 x 480 color display
- Navigation chart display via SD card
- Integrated Wi-Fi
- NMEA2000 and NMEA0183 connectivity
- Integrated MOB/PLB alerting and tracking system
AIS4000 Tranceiver System Includes:
- E70601 - AIS4000 Bundle
- A80589 - GNSS Antenna
- A80587 - Power Cable
- A80593 - 2 x Data Interface Cables
- A80586 - Fixings Pack
- A06045 - DeviceNet to STNg Cable
- Literature - Owner's Manual, Warranty Card, Mounting Template and Quick Start Guide
Manufacturer : Raymarine
Manufacturer Part No : E70601
