Raritan Atlantes Freedom Toilet with Vortex-Vac - Household Style - White - Freshwater Solenoid - Smart Toilet Control - 12v - AVHWF01201

$1,028.99 $1,745.00
SKU: 33766

Manufacturer Part #: AVHWF01201

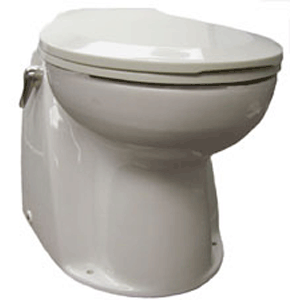

Raritan Atlantes Freedom Toilet with Vortex-Vac – Household Style – White – 12V – AVHWF01201

The Raritan Atlantes Freedom Toilet with Vortex-Vac (AVHWF01201) is a premium, household-style electric marine toilet engineered for boat owners who demand maximum comfort, ultra-low water consumption, and advanced smart control. Featuring Raritan’s industry-leading Vortex-Vac vacuum flushing technology, this toilet delivers powerful, odor-free performance while using significantly less water than conventional electric marine toilets.

Designed for vessels with 12V DC electrical systems, this model includes a freshwater solenoid, smart toilet control, and a full-size household bowl for unmatched onboard comfort.


Household-Style Comfort & Modern Design

The Atlantes Freedom toilet features a full-size, household-height porcelain bowl that provides superior comfort compared to compact marine toilets. The clean white finish blends seamlessly into luxury yacht and cruiser interiors, delivering a residential bathroom experience on the water.


Vortex-Vac Technology – Powerful & Efficient

Raritan’s patented Vortex-Vac system uses vacuum-assisted flushing to rapidly and completely evacuate waste using minimal water per flush. This results in:

  • Faster, cleaner bowl evacuation

  • Reduced odors

  • Lower freshwater consumption

  • Less strain on holding tanks and plumbing


Freshwater Flush with Integrated Solenoid

This model uses freshwater flushing, improving hygiene and reducing salt buildup compared to raw-water systems. The integrated freshwater solenoid ensures consistent water delivery and reliable flush performance.


Smart Toilet Control System

The Atlantes Freedom includes Smart Toilet Control, allowing users to select flush modes, control water usage, and ensure optimal operation. The intelligent control system improves reliability while enhancing user convenience and customization.


12V DC Electric Operation

Designed for 12V marine electrical systems, this toilet is ideal for recreational yachts, cruisers, and premium vessels seeking advanced sanitation without requiring higher-voltage power.


Marine-Grade Construction

Built to Raritan’s exacting standards, the Raritan Atlantes Freedom Toilet AVHWF01201 features:

  • Heavy-duty vitreous china bowl

  • Corrosion-resistant components

  • Sealed electronics and robust vacuum system

It is engineered to withstand vibration, moisture, and long-term marine use.


Flexible Installation & Serviceability

The Atlantes Freedom is designed for flexible plumbing configurations and easy servicing. Raritan’s strong global support network ensures availability of replacement parts and long-term service confidence.


In the Box: Raritan Atlantes Freedom Toilet AVHWF01201

  • ** (1) Atlantes Freedom Porcelain Bowl:** High-quality, "Household Style" vitreous china.

  • ** (1) Vortex-Vac Macerating Pump:** Built-in high-performance shredder and vacuum system.

  • ** (1) Freshwater Solenoid Valve:** For connection to the vessel’s pressurized potable water system.

  • ** (1) Smart Toilet Control (STC):** Bulkhead-mounted wall controller.

  • ** (1) Slow-Close Seat & Lid:** High-impact plastic with non-slamming hinges.

  • ** (1) Installation Hardware Kit:** Includes floor mounting bolts and gaskets.


Key Features & Benefits

1. Vortex-Vac™ Technology

The Vortex-Vac system creates a vacuum internally, eliminating the need for a separate, noisy vacuum pump elsewhere on the boat. It is engineered to be significantly quieter than traditional macerating toilets while still being capable of moving waste up to 10 feet vertically or 30 feet horizontally.

2. Smart Toilet Control (STC)

The STC panel is a fully programmable digital controller that offers:

  • Normal Flush: Standard timed cycle.

  • Water Saver: Uses minimal water for liquid waste.

  • Dry Bowl Flush: Clears the bowl without adding new water (ideal for rough seas).

  • Fill Only: Adds water to the bowl before use.

3. Freshwater Solenoid Operation

By using the boat's pressurized freshwater system, this toilet completely eliminates the "rotten egg" odors associated with raw-water flushing (where sea creatures trapped in the rim die and decay). It also includes a built-in backflow preventer to protect your drinking water.

4. Household Comfort

The "AV" in the part number denotes the Household Style bowl, which features a larger footprint and a deeper seat than standard marine heads. It is specifically designed to feel identical to a high-end home toilet.


Technical Specifications

Feature Details
Model Number AVHWF01201
Voltage 12V DC
Bowl Color White
Flush Type Vortex-Vac (Vacuum/Macerator)
Water Source Pressurized Freshwater (Solenoid)
Controller Smart Toilet Control (STC) Included
Amp Draw 15 Amps @ 12V
Circuit Breaker 25 Amp
Discharge Port 1" ($25\text{mm}$) or 1.5" ($38\text{mm}$)


Pro-Tip for Installation:

"Since the Atlantes Freedom toilet uses a high-speed macerator, it is sensitive to voltage drop. Ensure you use at least 8 AWG wire for runs over 10 feet. If the voltage drops too low, the Vortex-Vac motor won't reach the RPM required to create a full vacuum, which can lead to incomplete flushing or clogs in the discharge line."


Ideal Applications

  • Luxury yachts

  • Premium cruisers

  • Liveaboard vessels

  • Boats seeking residential-style comfort

  • Vessels focused on water efficiency and odor control


Why Choose Raritan Atlantes Freedom Toilets

Raritan is a global leader in high-performance marine sanitation, known for innovation, reliability, and premium craftsmanship. The Atlantes Freedom with Vortex-Vac represents the pinnacle of onboard toilet technology—combining luxury, efficiency, and intelligent control into one advanced system.


Upgrade your vessel’s sanitation system with the Raritan Atlantes Freedom with Vortex-Vac – AVHWF01201, delivering household comfort, smart operation, and industry-leading water efficiency on the water.
