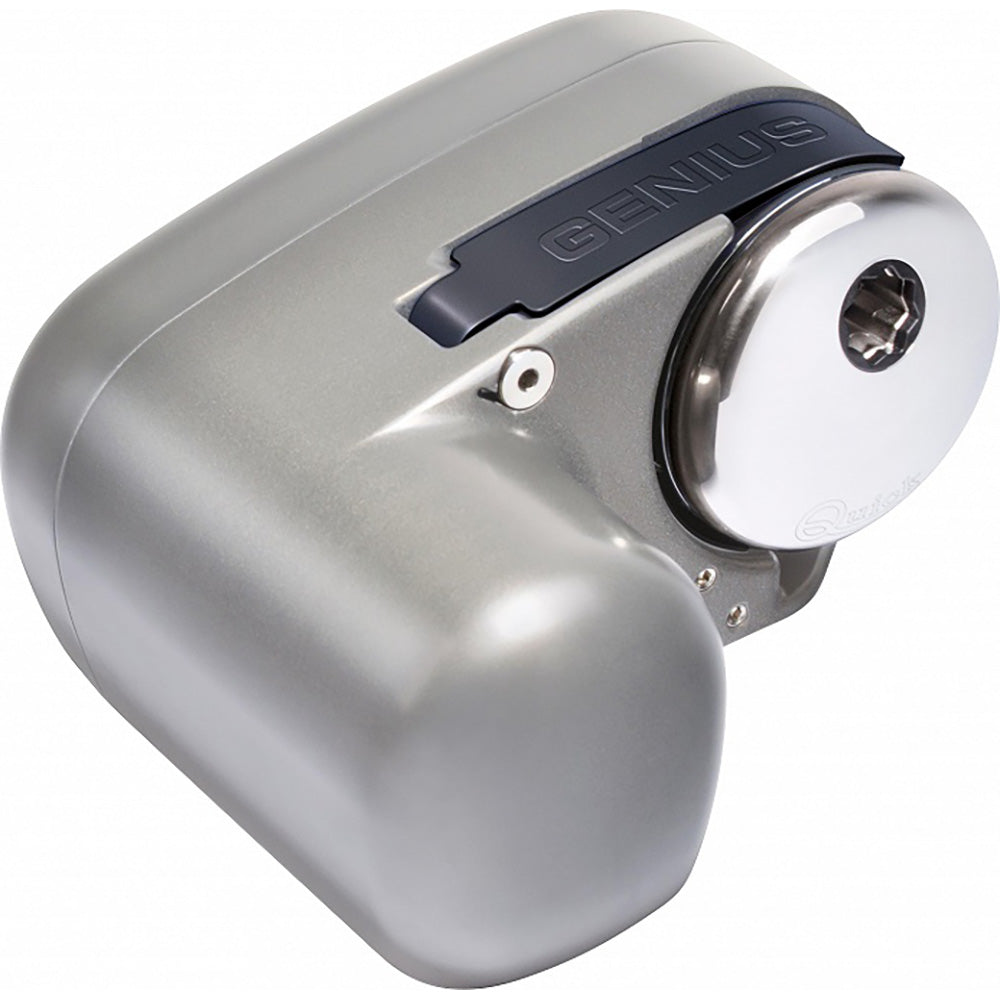

Quick Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy - FSGM01500007A00

Quick Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy

Genius GP2 500 Windlass - 150W, 12V, 1/4 Gypsy

The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Horizontal on-deck windlasses
• For boats 26-43FT
• 8MM or 5/16 Gypsy
• Requires 5/8 three-stranded polyester rope
• Anodized aluminium in hard oxide base
• White composite material base
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• IP66 watertight motor
• Includes T6411-12 Solenoid

Specifications:

• Motor power - 150 W
• Motor supply voltage - 12 V
• Maximum pull - 220 Kg / 485 lb
• Maximum working load - 70 Kg / 154 lb
• Working load - 35 Kg / 77 lb
• Current absorbtion @ working load - 29 A
• Maximum chain speed - 38,9 m/min / 127.6 ft/min
• Maximum chain speed @ working load - 28,5 m/min / 93,5 ft/min
• Weight - 13.2 lb

BRAND: Quick
Manufacturer Part Number: FSGM01500007A00
