Perko Bi-Color LED Horizontal Mount - Chrome Plated Zinc - 0647DP0CHR
Manufacturer Part #: 0647DP0CHR
Couldn't load pickup availability

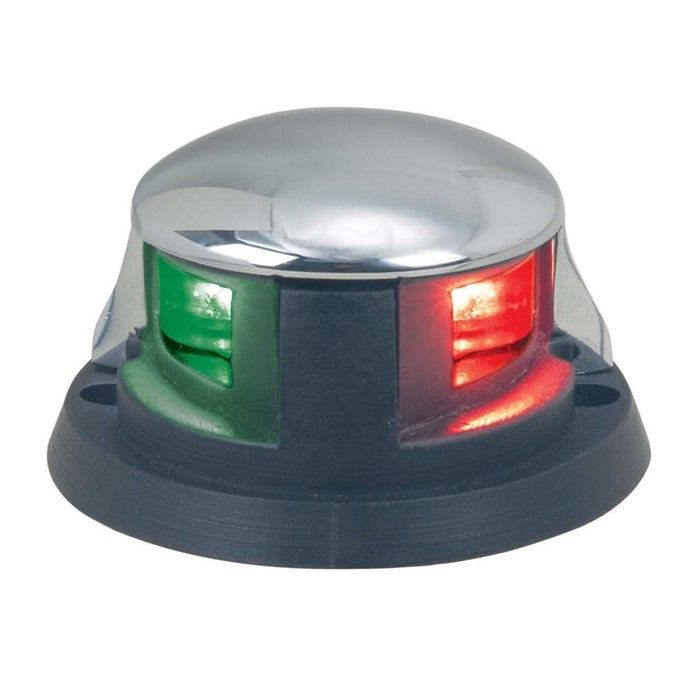

Perko Bi-Color LED Horizontal Mount Navigation Light – Chrome Plated Zinc – 0647DP0CHR
Upgrade your vessel’s navigation lighting with the Perko 0647DP0CHR, a bi-color LED horizontal mount navigation light designed for reliable marine performance. Crafted from chrome-plated zinc, this light combines durability, style, and high-visibility safety for boats of all sizes.
The bi-color LED design features integrated red and green lenses for port and starboard signaling, providing clear and efficient navigation lighting that meets U.S. Coast Guard regulations. The LED technology ensures long-lasting, energy-efficient illumination, reducing power consumption while delivering superior brightness in all weather conditions.
Designed for horizontal mounting, the chrome-plated zinc housing adds a polished, corrosion-resistant finish that complements your boat’s aesthetic while standing up to harsh marine environments. With easy installation and low maintenance, the Perko 0647DP0CHR is ideal for both recreational and professional marine vessels.
Core Technology & Performance
-
High-Efficiency LEDs: Unlike traditional incandescent bulbs, the LED array provides a much longer service life and remains cool to the touch during operation.
-
USCG Certified: Certified for use on sail or power driven vessels under 20 meters (65.6 ft) in length, providing a 2-mile visibility range.
-
Corrosion Resistance: The housing is constructed from chrome-plated zinc alloy with a black plastic base, offering excellent protection against saltwater spray and UV exposure.
-
Low Power Consumption: Operates on a 12V DC system with a minimal current draw, helping to preserve battery life for other critical onboard electronics.
Why Upgrade to the Perko LED Series?
-
Ultra-Low Power Draw: LEDs consume a fraction of the amperage of standard bulbs, keeping your battery bank fresh for other essential gear.
-
Vibration & Shock Resistant: Unlike filaments that break in rough seas, these LEDs are built to withstand the pounding and vibration of high-speed boating.
-
Certified Safety: USCG certified for 2 nautical miles, ensuring you meet all legal requirements for nighttime navigation.
-
Long-Life Performance: Say goodbye to mid-season bulb changes; these LEDs are designed for thousands of hours of maintenance-free operation.
-
Sleek, Low Profile: The horizontal mount design keeps a clean silhouette on your bow or pulpit while providing maximum light output.
Technical Specifications
| Feature | Specification |
| Manufacturer | Perko |
| Model Number | 0647DP0CHR |
| Light Type | LED (Red/Green Bi-Color) |
| Housing Material | Chrome Plated Zinc Alloy |
| Mounting | Horizontal (Deck Mount) |
| Visibility Range | 2 Nautical Miles |
| Vessel Length | Up to 20 Meters (65.6 ft) |
| Voltage | 12 Volt |
| Dimensions | 3-1/4" Length x 2-5/16" Width |
Installation & Care
-
Mounting: Requires #8 FH screws for a secure deck installation.
-
Wiring: Features pre-wired pigtails for easy connection to your existing 12V navigation light circuit.
-
Maintenance: Regularly rinse the chrome housing with fresh water to remove salt spray. To maintain the high-mirror shine, occasionally apply a high-quality marine chrome polish.
Buying Tip: The Perfect Match
If you are upgrading your bow light to LED, consider matching it with the Perko LED Stern Light to ensure your entire navigation system is energy-efficient and has a consistent color temperature.
In the Box
-
1 x Perko Bi-Color LED Horizontal Mount Light (Chrome Plated Zinc)
-
Integrated LED Modules: Pre-installed red and green light engines.
-
Installation Instructions: Technical guide and mounting compliance info.
-
Note: Mounting screws are typically not included to allow for different deck materials (e.g., fiberglass vs. wood).
Unit Dimensions
-
Length: 2-1/2 inches (64 mm)
-
Width: 2-5/8 inches (67 mm)
-
Height: 1-1/8 inches (29 mm)
-
Screw Size: #8 (Mounting hardware not included)
Installation Tip: To ensure a waterproof seal and protect your deck, apply a small amount of marine-grade silicone sealant around the screw holes and the wire exit point during mounting. This will prevent moisture from seeping into the core of your deck or cabin top.
