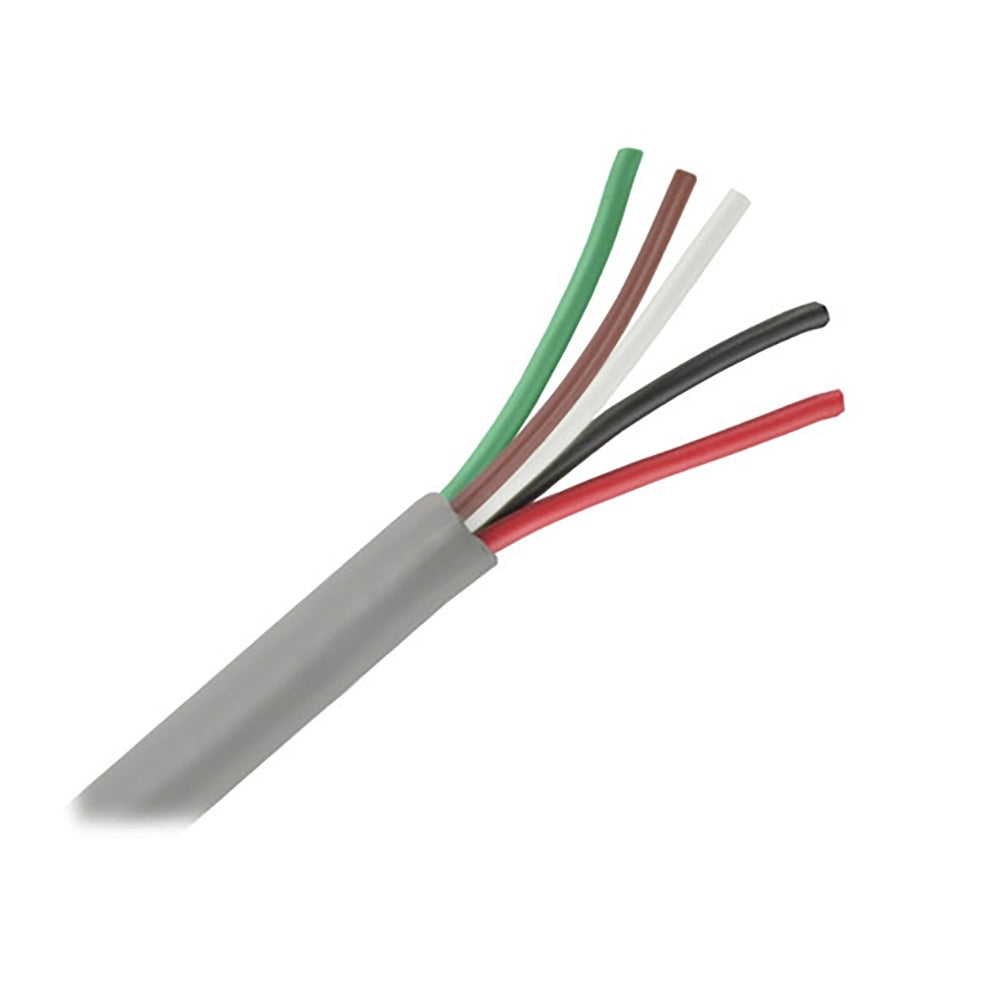

Pacer Group M18/5-25 Unshielded 5 Conductor Cable, 25 Feet - 18/5 AWG Multi-Conductor Cable in Green, Brown, White, Black & Red - M18/5-25

Unshielded 5 Conductor Cable - 25 - 18/5 AWG - Green, Brown, White, Black, Red

Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean Well, essentially, it means that multiconductor cables are used for controlling equipment.

Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable.

Features:

• 25 ft. of cable


• Fully annealed stranded tinned copper per ASTM B33


• Premium-grade color-coded PVC insulation


• Grey PVC jacket20C to 105C

Specifications:

• Number of Conductors: 5


• Conductor Colors: Green, brown, white, black, and red


• Conductor Stranding: 16/30


• Jacket Color: Grey


• Nom. Cap. pF/ft Between Conductors: 25.0


• Nom. Insulation Thickness: 5 conductors @ 0.016


• Jacket Thickness (inch): 5 conductors @ 0.032


• Nom. Cable O.D. (inch): 5 conductors @ 0.272

Applications:

• Public address systems


• Intercoms and internal telephones


• Suitable for EIA RS-232 applications


• Remote control circuits

Compliances:

• NEC Article 800 Type CM (UL: 75C)


• UL Style 2464 (UL: 80C, 300V, VW-1)


• CSA CMG (CSA: 60C) (Except 18/5)


• CE: Low voltage directive (LVD 2006/95/EC)


• RoHS compliant directive 2011/65/EU


• Vertical tray flame test (70,000 BTU)

The Pacer Group M18/5-25 is a versatile unshielded multi-conductor cable designed for a wide range of electronic and control applications. Featuring five color-coded conductors, this 25-foot cable is ideal for controlling equipment in both industrial and consumer environments. Its construction ensures reliable signal transmission, making it suitable for public address systems, intercoms, internal telephones, and remote control circuits.

Constructed from finely stranded, fully annealed tinned copper conductors meeting ASTM B33 standards, this cable provides excellent conductivity and flexibility. The color-coded PVC insulation offers durability and easy identification of conductors, while the grey PVC jacket provides added protection against physical damage and environmental factors. The cable's temperature rating spans from 20?C to 105?C, ensuring safe operation across various settings. It meets multiple industry standards, including UL, CSA, RoHS, and NEC, confirming its compliance with safety and environmental regulations.

Designed for reliable performance, the cable features a nominal capacitance of 25 pF per foot between conductors and a jacket thickness of approximately 0.032 inches. The conductors are stranded in 16/30 configuration, which enhances flexibility and durability during installation and operation. Its outer diameter is approximately 0.272 inches, making it easy to route through conduit and tight spaces. The cable also complies with fire safety standards, including a vertical tray flame test, ensuring safe use in various installations.

Whether used in controlling public address systems or in data communication setups, the Pacer M18/5-25 offers a robust and reliable solution. Its UL and CSA compliance, along with RoHS certification, makes it suitable for a broad array of applications where safety and environmental considerations are paramount. The cable's high-quality construction and adherence to industry standards guarantee long-lasting performance in demanding environments.

Features:
* 25 feet of cable for versatile installation options
* Fully annealed stranded tinned copper conductors for enhanced conductivity and flexibility
* Premium-grade, color-coded PVC insulation for easy conductor identification
* Durable grey PVC jacket providing protection against physical and environmental damage
* Temperature rating from 20?C to 105?C suitable for various operating conditions
* Meets UL, CSA, RoHS, and NEC standards ensuring safety and compliance
* Nominal capacitance of 25 pF per foot between conductors for reliable signal transmission
* Jacket thickness of approximately 0.032 inches for added durability
* Outer diameter of about 0.272 inches for easy routing and installation
* Suitable for applications including public address, intercoms, telephones, and remote controls
