Pacer Group 8 AWG Heat Shrink Butt Connector - 500 Pack for Durable Wire Terminations - TBSE8-500

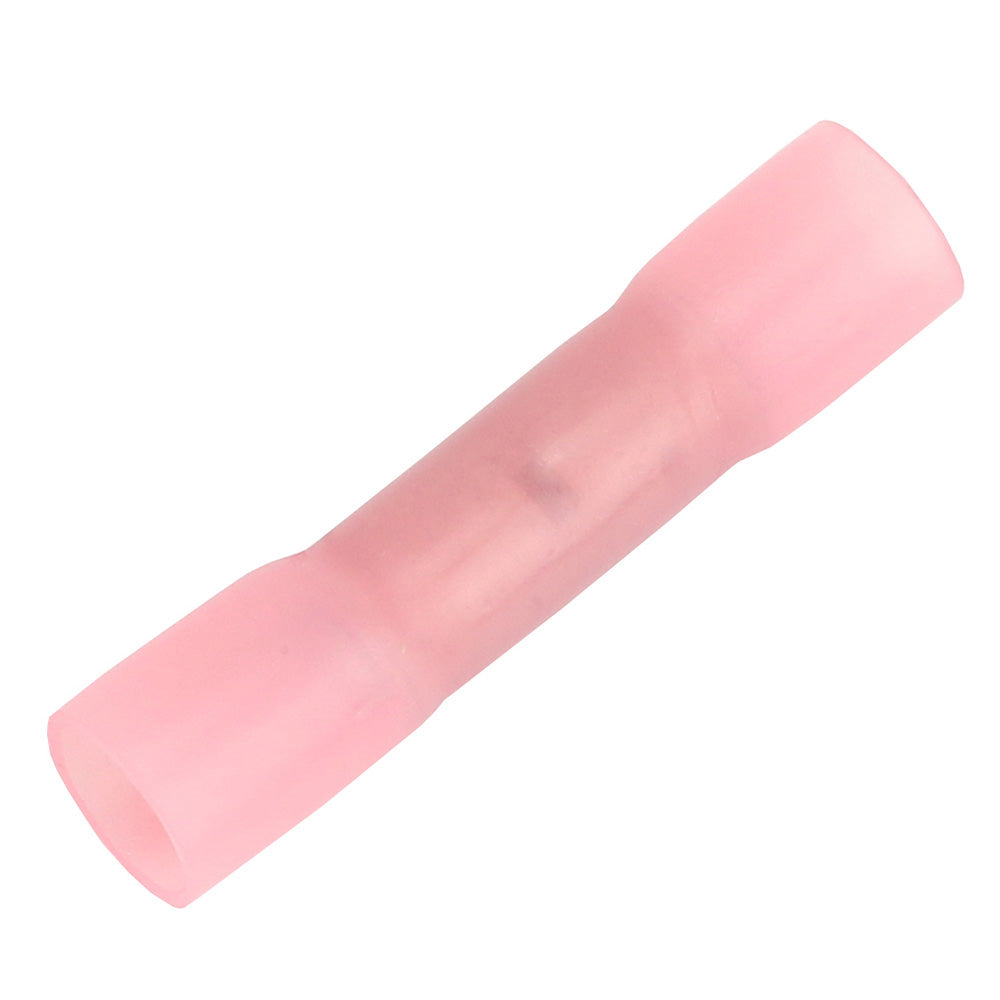

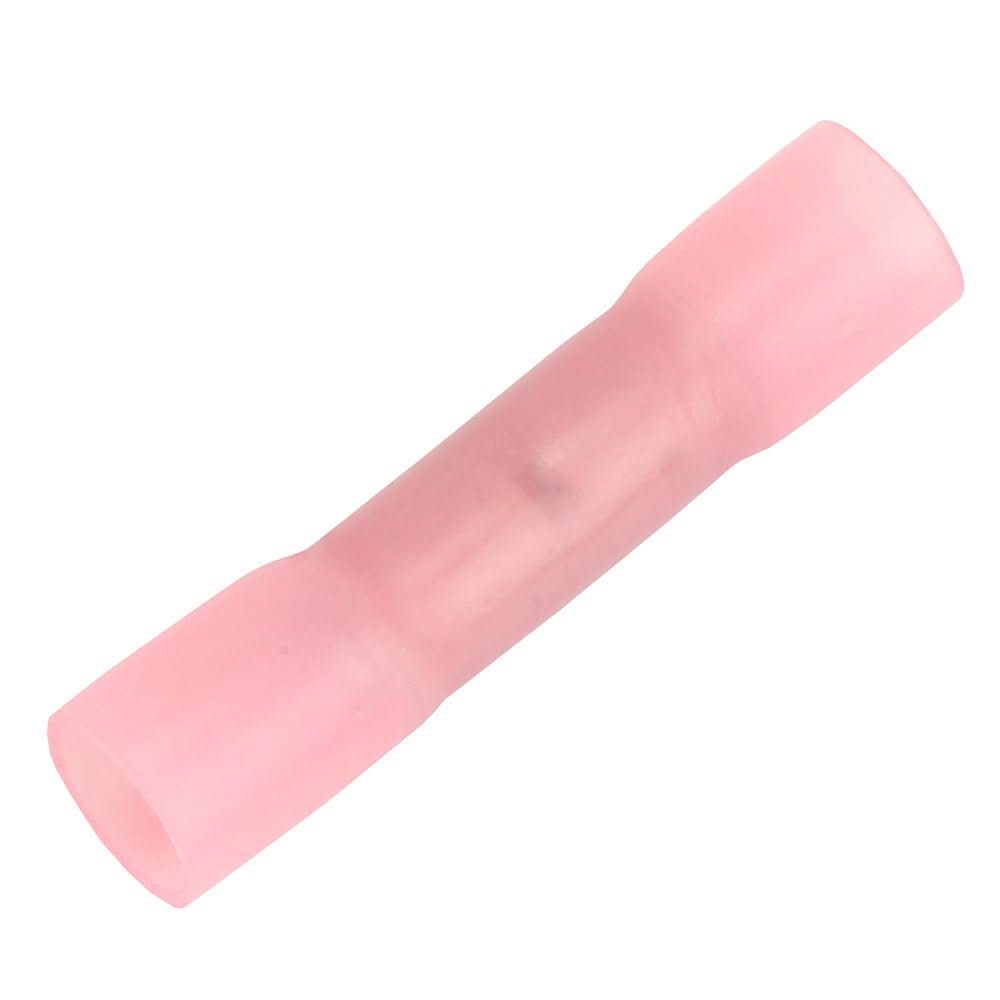

8 AWG Heat Shrink Butt Connector - 500 Pack

Butt splices are a type of connector used to connect one or more wires to another wire safely. Their economical pricing and ease of use make them common in electrical systems. Heat shrink butt splices create an environmentally sealed connection to handle harsh conditions. They are simple to use. First, ensure you have correctly stripped the wires to the proper length. Inside the butt splice, you will see an indentation your wires should butt up against. Be careful to make sure that the butt splice and the wire insulation are touching. Otherwise, you run the risk of damaging the wire due to exposure. So, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire, creating a solid connection. Next, you simply repeat the process on the other side. Alternatively, you can crimp the other end, creating a dead end. Before you heat it, dont forget the tug test. Once your wire is properly crimped, apply heat to the butt splice working outward. Be careful not to burn the butt splice or the wire insulation. And now youve created a durable, environmentally protected connection. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.

Terminals are a necessity for any electrical system. Heat shrink butt splices provide a rugged, environmentally sealed connection that is meant to last. These butt splices are designed for use with 8 AWG wires. How do you use 8 AWG heat shrink butt splices You start by preparing your wires. This means cutting and stripping them to the correct length. Every butt splice has an internal indentation of it where your wires should meet. So now, you insert the wire into the butt splice, making sure the tip touches the indentation. Using the proper tool, you need to crimp the side of the butt splice, which creates a solid connection. Repeat the process on the other side of the butt splice. Next, perform a tug test to make sure that the wires do not pull out. After that, use the proper heat gun or torch to correctly heat the outer heat shrink. Why use 8 AWG heat shrink butt splices Heat shrink butt splices offer the highest level of protection available. By using these splices, users are creating a moisture-proof seal that will last. Heat shrink butt splices protect connections from physical abuse and abrasion. They also protect from water, salt, and other corrosive compounds.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion


• Added vibration protection in rugged environments


• Provides strain relief


• Cost-effective

Characteristics:

• Shrink ratio: Approx.: 3-1 at 135 C


• Operating Temp: -55 C - 125 C


• Vol. Resistivity: 1015 Ohm-cm3


• Dielectric Strength: 900-V/mil

Specifications:

• Wire Range: 8 AWG


• Insulation Color: Pink


• Max Wire Insulation Outer Diameter (inch): 0.35


• Base Material: Tinned Copper


• Voltage Rating: 600-V


• Package Size: 500

Compliances:

• UL


• CSA


• RoHS

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Pacer Group TBSE8-500 is a high-quality set of 8 AWG heat shrink butt connectors designed for reliable and environmentally sealed wire connections. These connectors are ideal for applications requiring protection against moisture, corrosion, and physical wear. They are especially suitable for automotive, marine, and industrial electrical systems where durability and safety are critical. Each connector provides a secure, moisture-proof seal that ensures long-lasting performance in harsh conditions. The heat shrink technology creates a tight, insulated connection that resists salt spray, water, and other corrosive elements, making them a cost-effective solution for professionals and DIY enthusiasts alike. Proper installation involves stripping the wire to the correct length, inserting it into the connector until it touches the internal indentation, crimping with a suitable tool, performing a tug test to confirm a secure fit, and applying heat to shrink and seal the connection. This process guarantees a rugged, strain-relief connection that can withstand vibration and physical stress. The pink insulation color makes identification easy, and the connectors are rated for up to 600 volts, with a shrink ratio of approximately 3:1 at 135?C, ensuring versatility across various wire sizes and environments. Manufactured from tinned copper for corrosion resistance, these heat shrink butt splices meet UL, CSA, and RoHS standards, providing peace of mind regarding safety and environmental compliance. The package contains 500 connectors, making it suitable for large-scale electrical projects or ongoing maintenance needs. Whether used in automotive wiring harnesses or marine electrical systems, the Pacer Group heat shrink butt connectors are a dependable choice for creating sealed, strain-relieved wire terminations that last through demanding conditions.

Features:
* Protects terminations from water, condensation, salt spray, and corrosion
* Added vibration protection in rugged environments
* Provides strain relief
* Cost-effective
