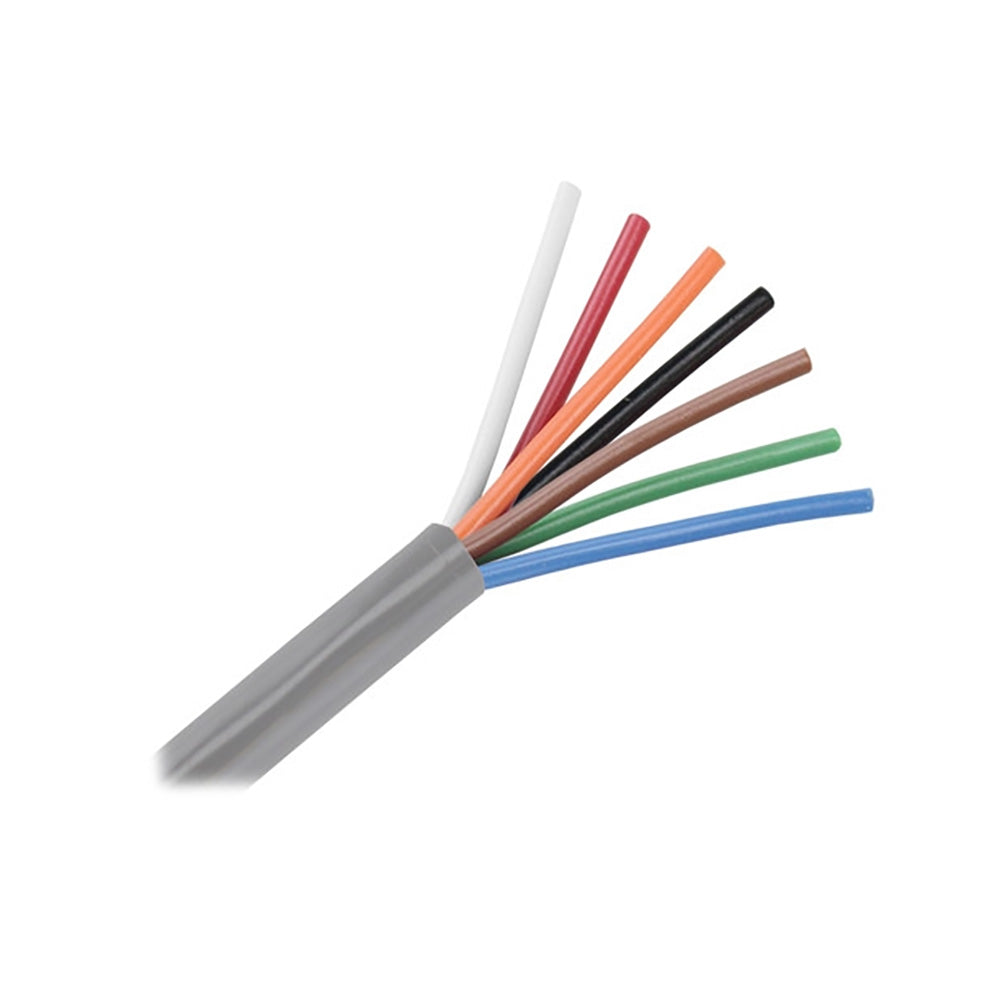

Pacer Group 18/7 AWG Unshielded Multiconductor Cable, 100 ft, White, Red, Orange, Black, Brown, Green & Blue - M18/7-100

Unshielded 7 Conductor Cable - 100 - 18/7 AWG - White, Red, Orange, Black, Brown, Green, Blue

Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean Well, essentially, it means that multiconductor cables are used for controlling equipment.

Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the exact same from cable to cable.

Features:

• 100 ft. of cable


• Fully annealed stranded tinned copper per ASTM B33


• Premium-grade color-coded PVC insulation


• Grey PVC jacket20C to 105C

Specifications:

• Number of Conductors: 7


• Conductor Colors: White, red, orange, black, brown, green, and blue


• Conductor Stranding: 16/30


• Jacket Color: Grey


• Nom. Cap. pF/ft Between Conductors: 30.5


• Nom. Insulation Thickness: 7 conductors @ 0.016


• Jacket Thickness (inch): 7 conductors @ 0.032


• Nom. Cable O.D. (inch): 7 conductors @ 0.309

Applications:

• Public address systems


• Intercoms and internal telephones


• Suitable for EIA RS-232 applications


• Remote control circuits

Compliances:

• NEC Article 800 Type CM (UL: 75C)


• UL Style 2464 (UL: 80C, 300V, VW-1)


• CSA CMG (CSA: 60C) (Except 18/5)


• CE: Low voltage directive (LVD 2006/95/EC)


• RoHS compliant directive 2011/65/EU


• Vertical tray flame test (70,000 BTU)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Pacer Group 18/7 AWG unshielded multiconductor cable is designed for a variety of control and signal transmission applications. Its construction features finely stranded tinned copper conductors insulated with color-coded PVC, providing durability and flexibility for demanding environments. This cable is suitable for consumer electronics, industrial control equipment, public address systems, intercoms, internal telephones, and remote control circuits. Its versatile design ensures reliable performance in applications requiring precise signal control and transmission. The cable's durable grey PVC jacket offers excellent protection against wear while maintaining flexibility for installation in tight spaces. Manufactured to meet UL, CSA, RoHS, and NEC standards, this cable supports safe and compliant operation across different regions and industries. Its construction includes seven conductors, each color-coded for easy identification, with a nominal capacity of 300V and a temperature range from 20?C to 105?C. The conductors are stranded with 16/30 stranding, ensuring optimal flexibility and conductivity. The cable's outer diameter of approximately 0.309 inches makes it suitable for various installation environments. Its design also meets flame and safety standards, including vertical tray flame testing, making it a reliable choice for both commercial and industrial applications. Whether used for control circuits, intercoms, or public address systems, this 100-foot cable provides the performance and flexibility needed for effective signal transmission and control. The product is backed by quality manufacturing standards, ensuring longevity and consistent performance in demanding settings. Please note that this product may not be returned to the original point of purchase, and direct contact with the manufacturer is recommended for any issues or concerns.

Features:
* 100 ft length for extended use and flexibility
* Constructed with fully annealed stranded tinned copper per ASTM B33 for superior conductivity
* Premium-grade, color-coded PVC insulation for easy identification and durability
* Durable grey PVC jacket providing protection and flexibility
* Meets UL, CSA, RoHS, and NEC standards for safety and compliance
* Temperature range from 20?C to 105?C suitable for various environments
* 7 conductors with color coding: white, red, orange, black, brown, green, and blue
* Nominal capacity of 300V with a flame-resistant design
* Ideal for control circuits, public address systems, intercoms, and telephones
