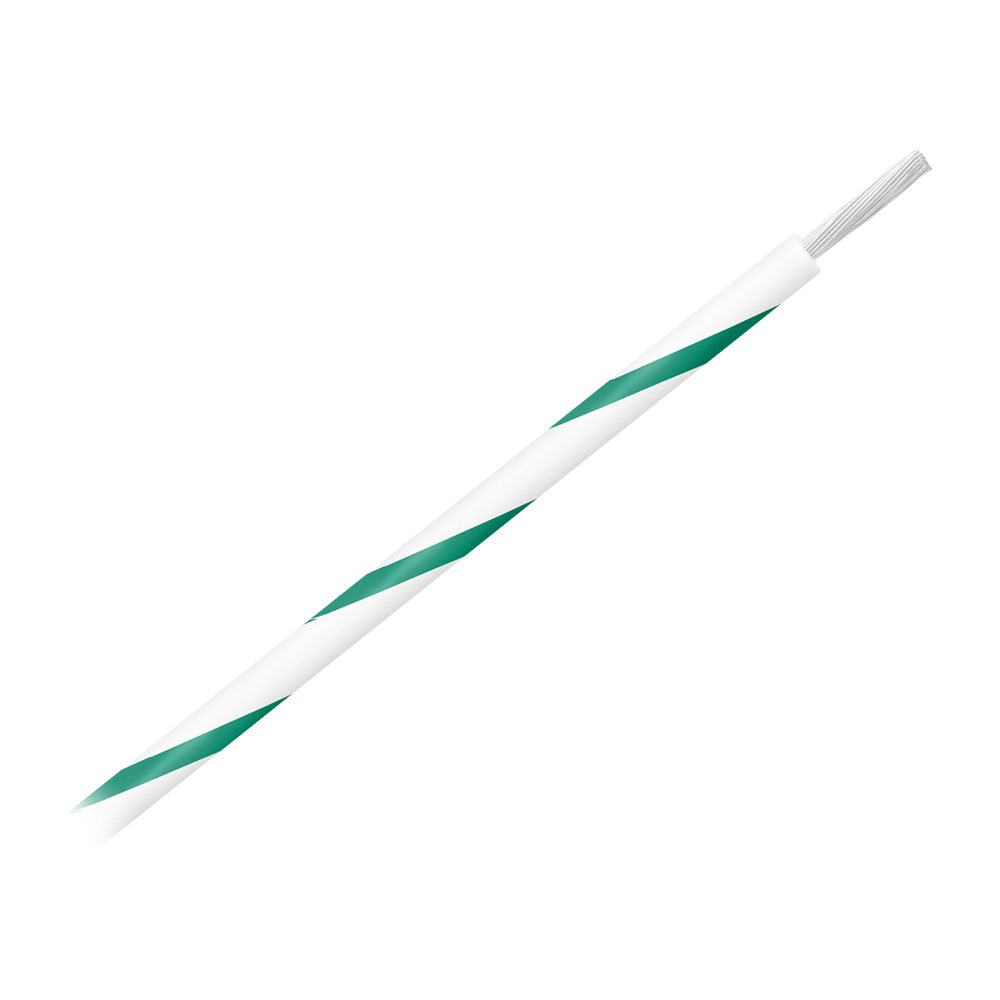

Pacer Group 14 AWG Striped Marine Wire 500 ft Spool - White with Green Stripe - WUL14WH-5-500

14 AWG Gauge Striped Marine Wire 500 Spool - White with Green Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

Pacer Group*s 14 AWG striped marine wire is designed for extensive wiring applications requiring easy identification and reliable performance. Crafted from Type III Class K tinned copper conductors, this wire ensures optimal conductivity and durability. The flexible PVC insulation, color-coded in white with green stripes, makes it simple to distinguish between multiple wires, streamlining installation and maintenance processes. Manufactured in Sarasota, FL, USA, all Pacer primary wire complies with industry standards such as UL, ABYC, and NMMA, guaranteeing safety and quality for marine environments. This extensive selection offers over 100 different color and stripe combinations, providing versatility to meet diverse wiring needs. Whether for new installations or repairs, this wire is suitable for point-to-point wiring, internal panel wiring, and motor connections, making it a versatile choice for marine professionals and hobbyists alike.

Features:
* Stranded, tinned copper conductors
* Highly flexible color-coded insulation
* Annealed Finely Stranded Tinned Copper ASTM b172 Class K
* Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
