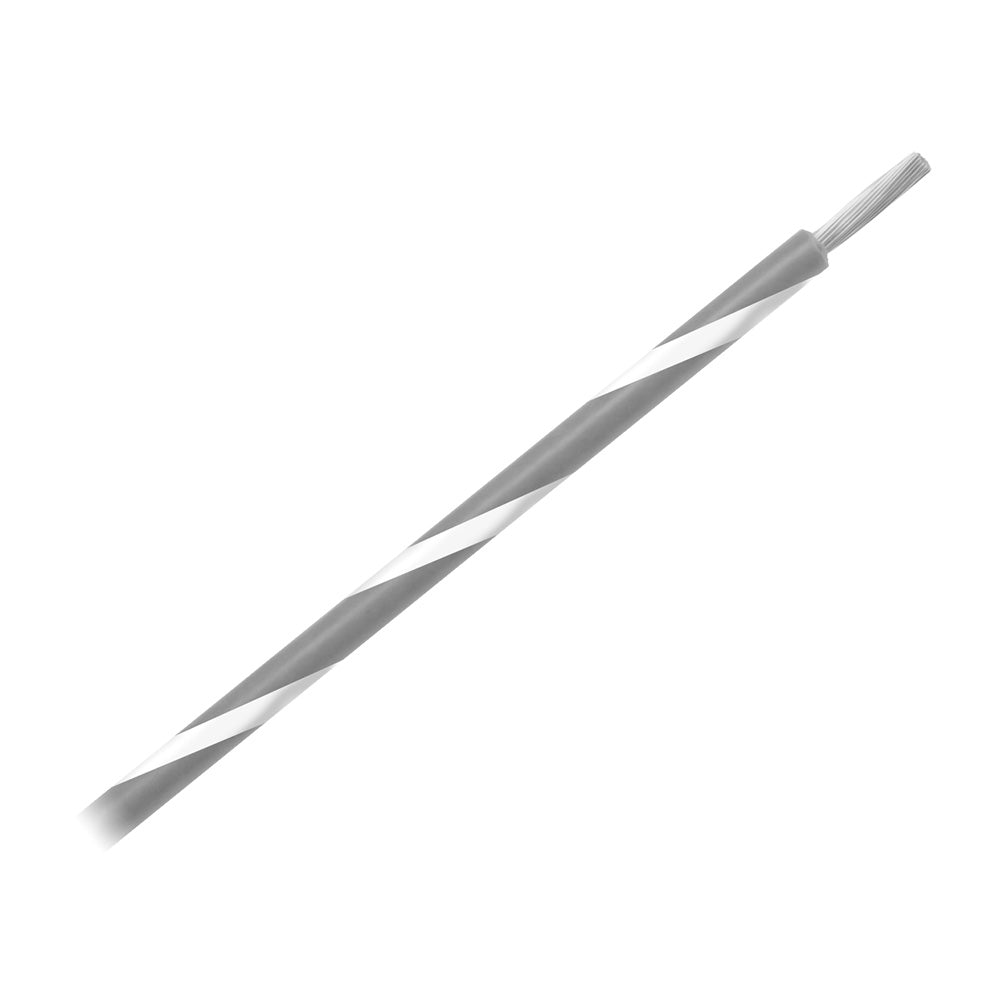

Pacer Group 14 AWG Striped Marine Wire 500 ft - Grey with White Stripe - WUL14GY-9-500

14 AWG Gauge Striped Marine Wire 500 Spool - Grey with White Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer Group 14 AWG Gauge Striped Marine Wire offers a reliable solution for complex wiring applications in marine environments. Constructed in Sarasota, FL, USA, from Type III Class K tinned copper, this wire ensures excellent conductivity and corrosion resistance. The flexible PVC insulation features a distinctive grey color with a white stripe, facilitating easy identification among multiple cables during installation or maintenance. Its stranded, annealed tinned copper conductors provide durability and flexibility, making it suitable for point-to-point wiring, internal panel wiring, and motor connections on boats and other marine vessels. All conductive materials are UL, ABYC, and NMMA compliant, attesting to their high quality and safety standards.

Features:
* Stranded, tinned copper conductors for enhanced durability and conductivity
* Highly flexible, color-coded PVC insulation for easy identification and handling
* Annealed Finely Stranded Tinned Copper ASTM b172 Class K for superior performance
* Resistant to acid, alkali, abrasion, flames, gasoline, oil, and moisture for durable marine use
