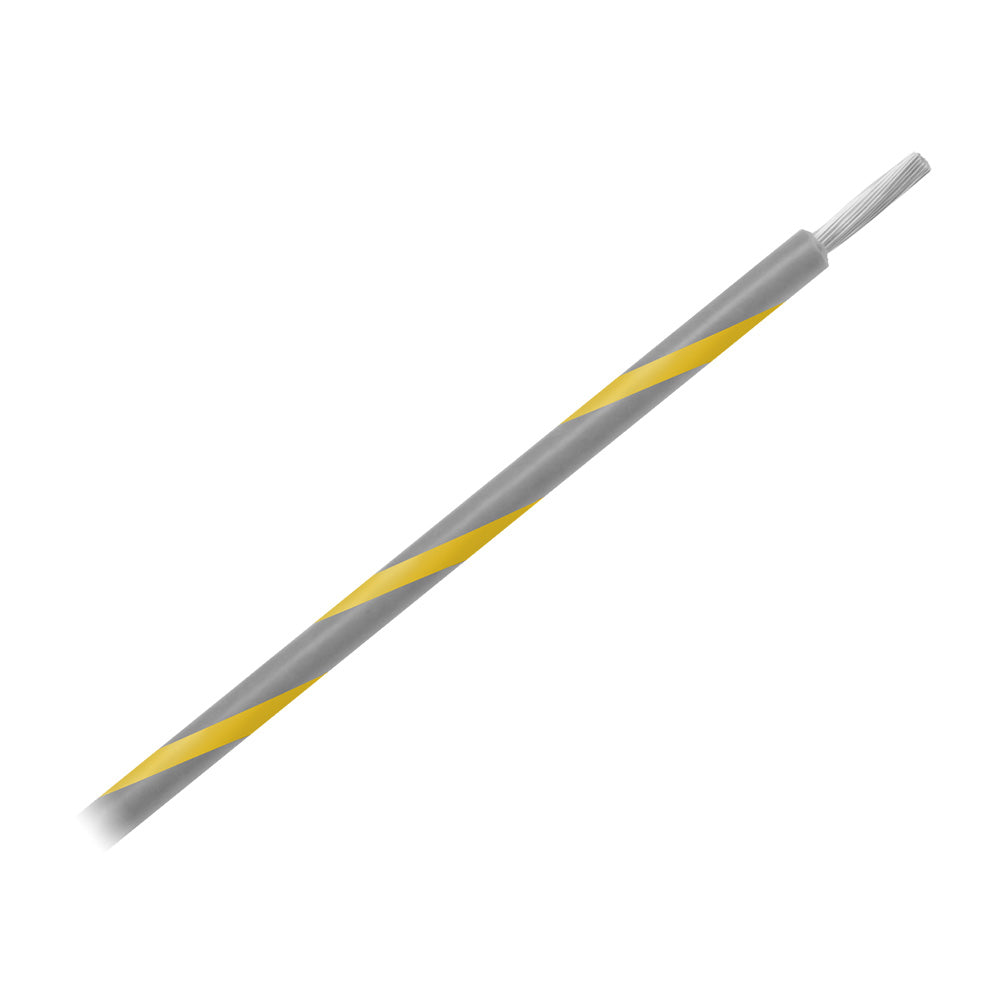

Pacer Group 14 AWG Striped Marine Wire 500 ft Spool * Grey with Yellow Stripe - WUL14GY-4-500

14 AWG Gauge Striped Marine Wire 500 Spool - Grey with Yellow Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer Group 14 AWG Striped Marine Wire is an essential component for marine electrical applications, offering a reliable and color-coded solution for complex wiring tasks. Constructed with stranded, tinned copper conductors, this wire ensures excellent conductivity and flexibility, making installation and adjustments straightforward. The durable PVC insulation is designed to withstand harsh marine environments, including exposure to moisture, oil, gasoline, and abrasion, while maintaining flexibility across a broad temperature range. This wire is suitable for point-to-point wiring, internal panel wiring, and motor connections, enhancing both safety and efficiency on your vessel.
The wire's high-quality construction meets strict industry standards, including UL 1426, ABYC, and NMMA, ensuring compliance and safety in marine environments. With a voltage rating of 600 volts and temperature ratings up to 105?C in dry conditions, this wire performs reliably in demanding conditions. The color-coded insulation, with grey and yellow stripes, simplifies identification and troubleshooting, saving time during installation and maintenance. Pacer offers over 100 possible color and stripe combinations, providing versatility to match your specific wiring scheme.
Manufactured in Sarasota, Florida, USA, all Pacer primary wires are crafted with precision and quality control, guaranteeing consistent performance. Whether you need to wire panels, motors, or complex electrical systems, this 500-foot spool of 14 AWG striped marine wire provides a dependable solution that combines safety, durability, and ease of use. For any questions or assistance, contact a Pacer expert to ensure you select the right wiring for your marine project.

Features:
* Stranded, tinned copper conductors for enhanced conductivity
* Highly flexible color-coded PVC insulation for easy identification
* Annealed, finely stranded Tinned Copper ASTM B172 Class K for durability
* Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
