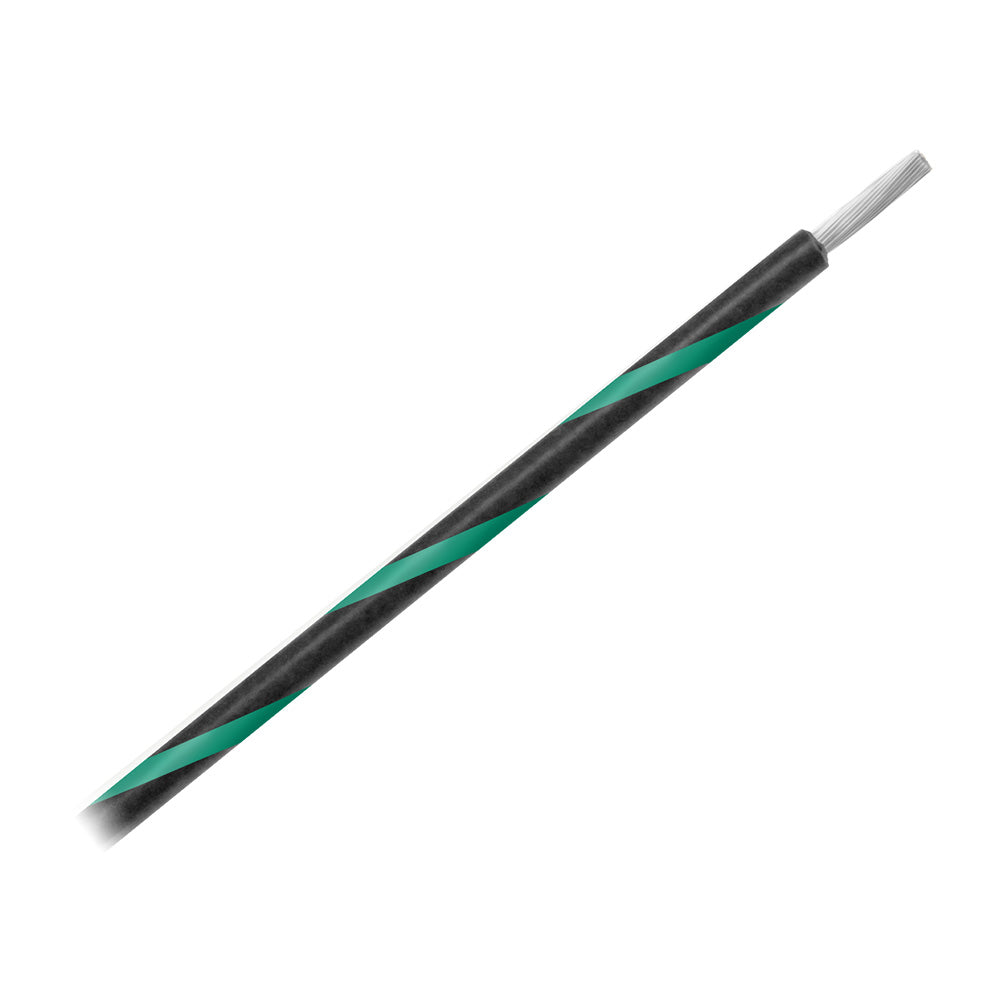

Pacer Group 14 AWG Striped Marine Wire 500 ft Spool - Black with Green Stripe - WUL14BK-5-500

14 AWG Gauge Striped Marine Wire 500 Spool - Black with Green Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer Group WUL14BK-5-500 is a 14 AWG gauge striped marine wire designed for efficient and reliable electrical connections in marine environments. Constructed with stranded, tinned copper conductors, this wire offers excellent flexibility and durability, making it ideal for applications requiring frequent movement or vibration. The wire's PVC insulation is color-coded in black with a green stripe, allowing for quick identification among multiple wires, which enhances installation efficiency and reduces errors during wiring tasks. All materials are manufactured in Sarasota, FL, USA, adhering to stringent standards such as UL, ABYC, and NMMA, ensuring safety and quality assurance. This wire is suitable for point-to-point wiring, internal panel wiring, and motor connections, providing versatility for various marine electrical systems.

Features:
* Stranded, tinned copper conductors for enhanced flexibility and corrosion resistance
* Highly flexible, color-coded PVC insulation for easy identification
* Annealed, finely stranded Tinned Copper ASTM b172 Class K for superior conductivity
* Resistant to acids, alkalis, abrasion, flames, gasoline, oil, and moisture, ensuring longevity in harsh environments
