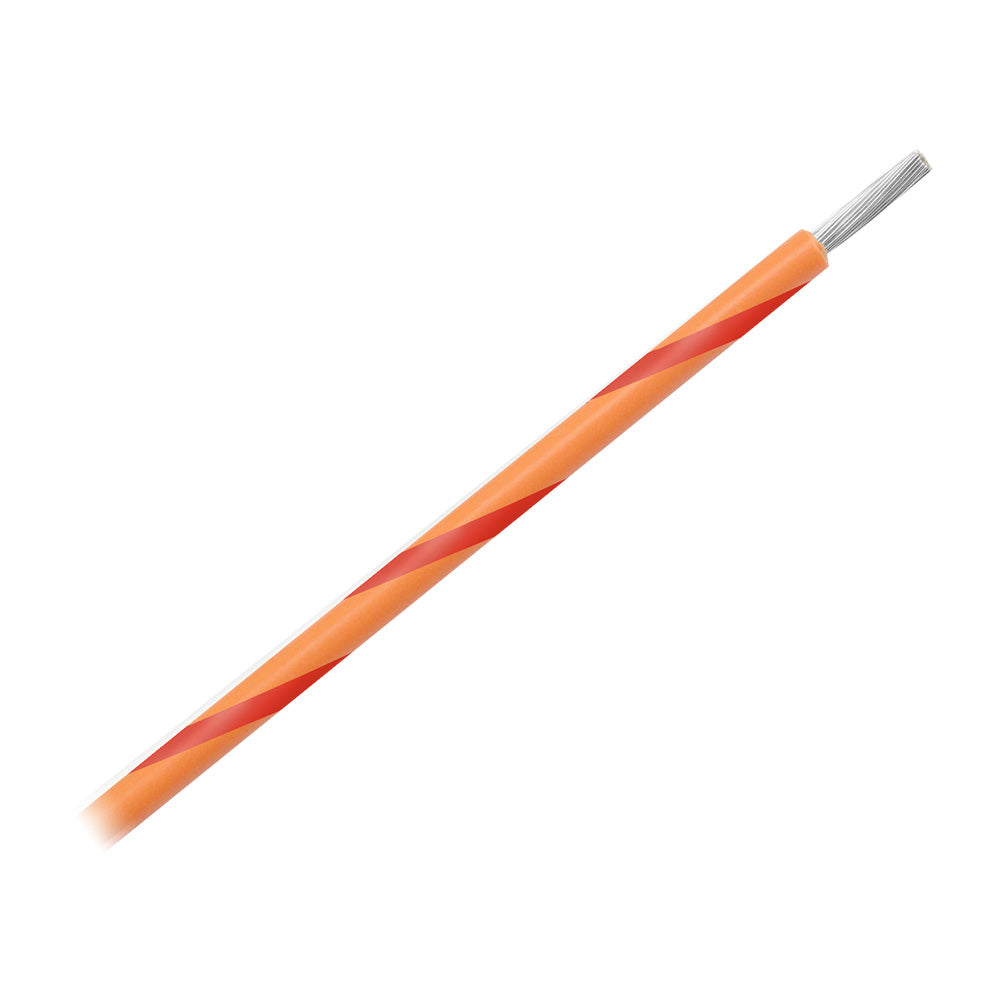

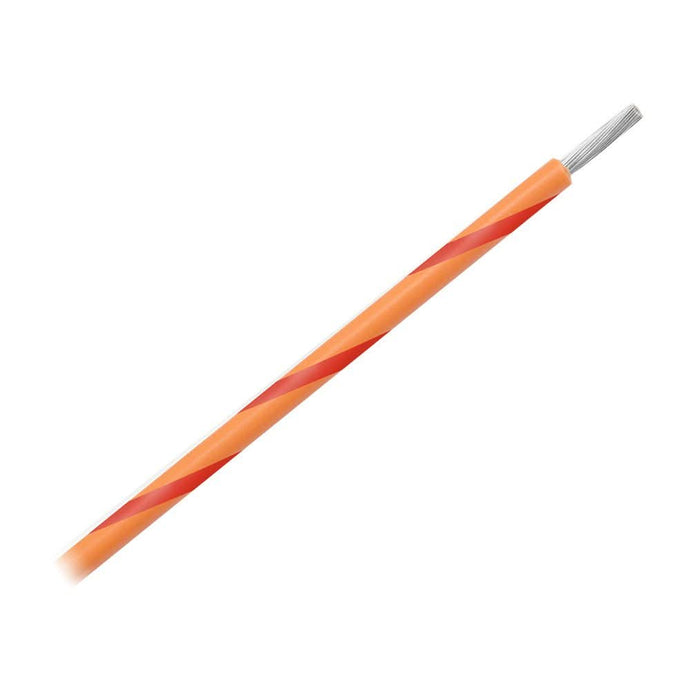

Pacer Group 14 AWG Striped Marine Wire 500 ft Orange with Red Stripe - WUL14OR-2-500

14 AWG Gauge Striped Marine Wire 500 Spool - Orange with Red Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer Group 14 AWG Striped Marine Wire offers a reliable and efficient solution for complex wiring needs on boats and marine applications. Measuring 500 feet, this spool features vibrant orange insulation with a red stripe, making wire identification quick and straightforward, which enhances installation speed and accuracy. Crafted in Sarasota, FL, USA, from high-quality Type III Class K tinned copper conductors, this wire ensures excellent conductivity and durability in marine environments. The PVC insulation is designed to be flexible, resistant to various harsh conditions, and suitable for point-to-point wiring, internal panel wiring, and motor connections. This wire meets stringent standards including UL, ABYC, and NMMA, ensuring compliance and safety for marine use. With over 100 color-coded combination options, Pacer provides versatility to match specific project requirements, making it easier to organize and troubleshoot wiring systems. Whether you*re an experienced marine electrician or a DIY enthusiast, this wire offers the performance and flexibility needed for demanding marine electrical work. The stranded tinned copper conductors provide enhanced corrosion resistance, especially in saltwater environments, and the flexible PVC insulation maintains integrity across a wide temperature range. The wire*s voltage rating of 600 volts and temperature ratings up to 105?C in dry conditions make it suitable for various marine power applications. Pacer's marine wire is resistant to acids, alkali, abrasion, flames, gasoline, oil, and moisture, ensuring longevity and reliable performance over time. Designed to meet or exceed industry standards, this marine wire is an essential component for safe and effective wiring in marine vessels and equipment. Trust Pacer Group*s expertise for high-quality, durable wiring solutions tailored to marine environments, backed by rigorous testing and compliance with industry standards.

Features:
* Stranded, tinned copper conductors
* Highly flexible color-coded insulation
* Annealed Finely Stranded Tinned Copper ASTM b172 Class K
* Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
