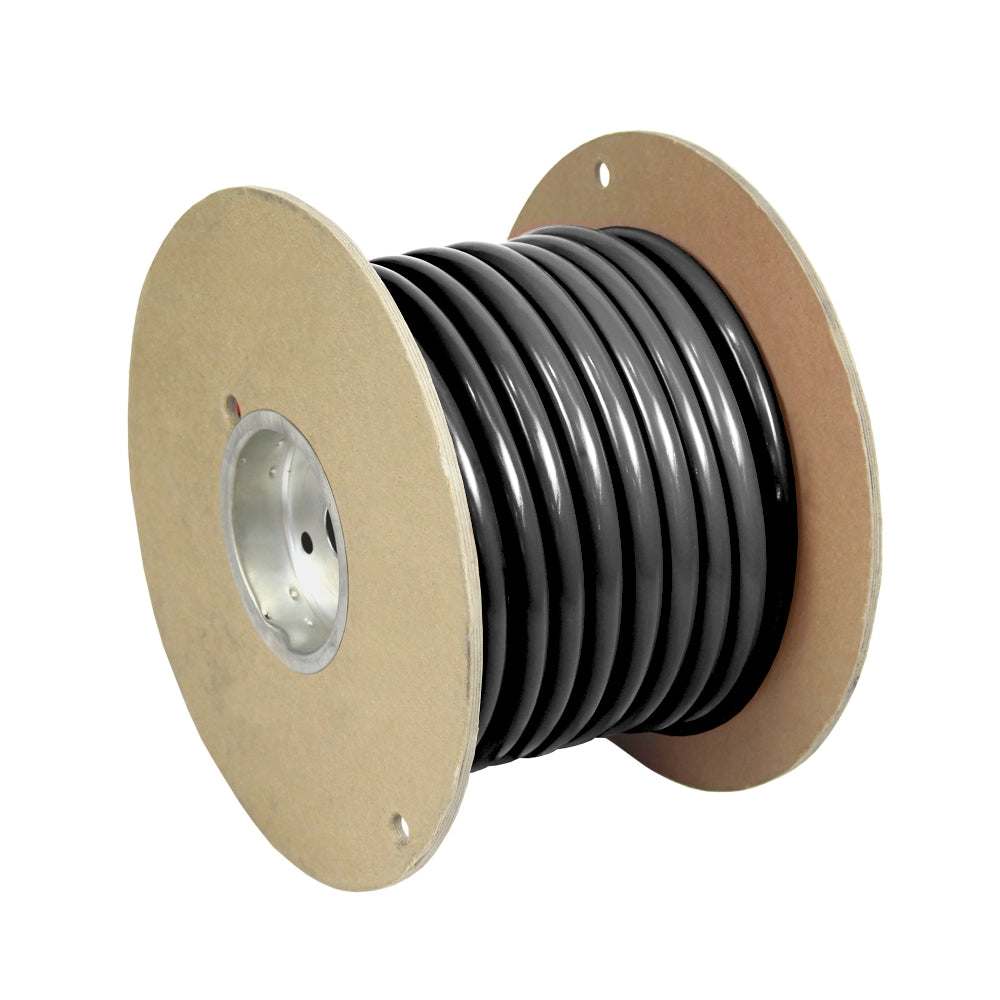

Pacer Black 2/0 AWG Battery Cable - 25' - WUL2/0BK-25

Pacer Black 2/0 AWG Battery Cable – 25' (WUL2/0BK-25)

The Pacer Black 2/0 AWG Battery Cable (WUL2/0BK-25) is a high-performance marine-grade power cable designed for demanding electrical systems requiring maximum current flow and reliability. Ideal for battery banks, inverters, and high-load marine or RV applications, this cable delivers superior conductivity and long-lasting durability.

Manufactured with Type III finely stranded tinned copper, this cable offers excellent resistance to corrosion, making it perfect for harsh marine environments. The flexible construction allows for easy routing in tight spaces, while maintaining strength and performance under heavy electrical loads.

The cable is insulated with a durable, flexible PVC jacket, rated for extreme conditions including resistance to oil, acid, abrasion, and moisture. With a 600V rating and high temperature tolerance, it meets or exceeds stringent marine standards for safety and performance.

Whether you're upgrading your boat’s electrical system or installing a high-capacity power setup, this cable provides dependable performance and professional-grade quality.

Technical Specifications

• Model Number: WUL2/0BK-25

• Wire Gauge: 2/0 AWG

• Length: 25 Feet

• Color: Black (Standard for Negative/Ground connections)

• Conductor Material: Fully annealed tinned copper (Type III stranding)

• Insulation: Premium PVC (Highly flexible)

• Voltage Rating: 600 Volts

• Temperature Rating: 105°C (221°F) Dry / 75°C (167°F) Wet

• Compliance: UL Standard 1426, BC-5W2, SAE J1127, and ABYC standards

Key Features

• Maximum Corrosion Resistance: Each individual strand of copper is tinned. This prevents the "green rot" oxidation common in non-tinned copper when exposed to salt air and moisture.

• Superior Flexibility: The Type III stranding uses a high count of fine copper wires, allowing the thick 2/0 cable to be routed through tight hull sections and battery boxes without kinking.

• Rugged Insulation: The PVC jacket is resistant to acid, alkalis, oil, flame, moisture, and gasoline, ensuring the cable maintains its integrity in an engine room environment.

• High Conductivity: Tinned copper ensures minimal voltage drop over the 25-foot run, which is critical for starting large diesel or outboard engines.

Installation & Usage

• Terminals: Requires heavy-duty 2/0 AWG tinned copper lugs. For the best connection, use a high-pressure hex crimp tool and finish with adhesive-lined heat shrink.

• Current Capacity: Rated for high-current loads (check ABYC E-11 tables for specific ampacity based on your run length and engine room temperature).

• Application: Ideal for connecting battery banks in parallel, grounding large marine engines, or wiring high-draw DC bow thrusters.

Power your system with confidence using the Pacer 2/0 AWG Battery Cable, delivering maximum conductivity, flexibility, and durability for demanding marine and electrical applications.

Manufacturer : Pacer Group
Manufacturer Part No : WUL2/0BK-25
