Octopus Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI Cylinder - OCTAF1012
Manufacturer Part #: OCTAF1012
Couldn't load pickup availability

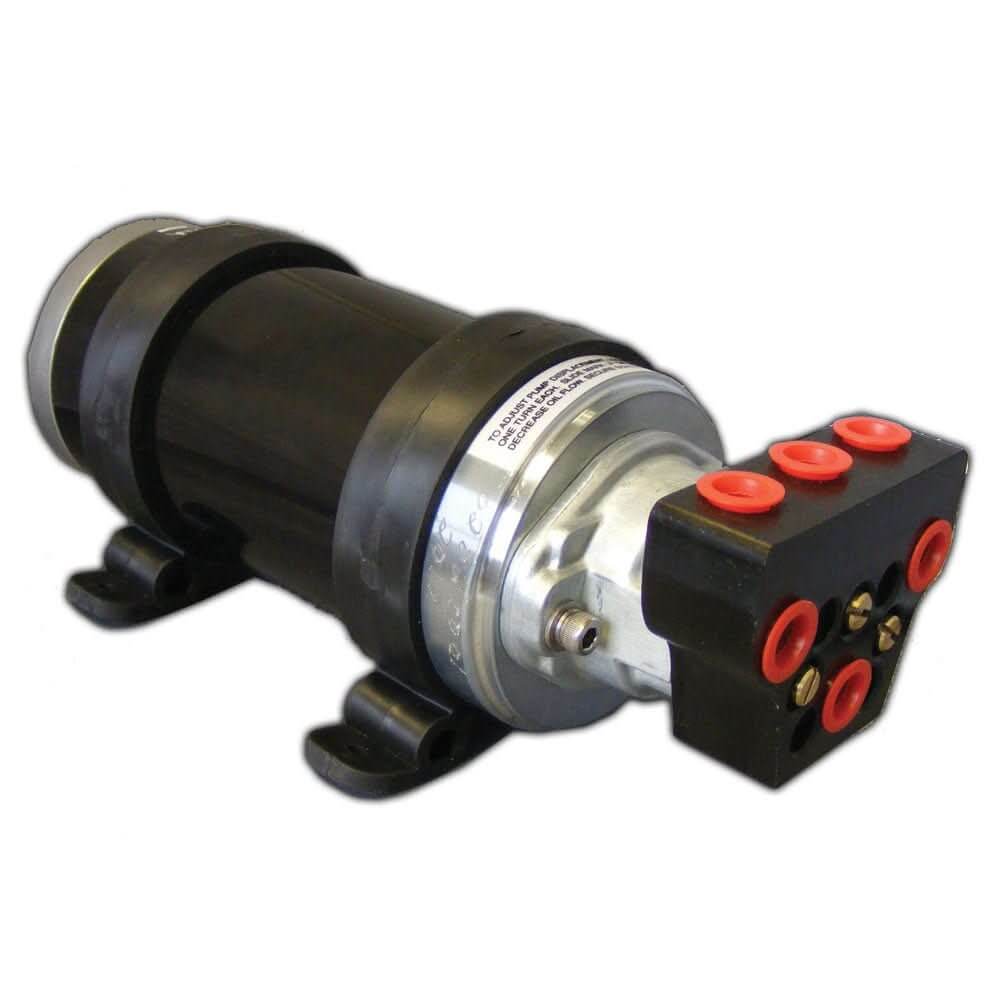

Octopus Autopilot Pump Type 1 Adjustable Reversing 12V – Up To 15 CI Cylinder (OCTAF1012)
The Octopus OCTAF1012 Type 1 Autopilot Pump is a high-performance hydraulic reversing pump designed for precise and efficient steering control in autopilot systems. Engineered for boats with hydraulic steering systems and cylinder capacities up to 15 cubic inches, this pump delivers smooth, responsive handling for both recreational and professional marine applications.
Utilizing advanced piston pump technology, the OCTAF1012 produces over twice the hydraulic output per watt compared to traditional gear pumps, while consuming significantly less power. This results in improved steering accuracy, reduced battery drain, and less wear on your hydraulic system.
The pump features an adjustable flow rate, allowing you to fine-tune performance based on your vessel’s steering requirements. With only three moving parts, the design enhances reliability and minimizes maintenance needs.
Designed for convenience, the system includes integrated shut-off valves, enabling easy servicing or removal without draining the hydraulic system. Its compact footprint and flexible mounting options make installation straightforward in a variety of boat layouts.
Key Features
-
Piston Pump Efficiency: The unique radial piston design eliminates the internal oil leakage common in gear pumps. This results in pinpoint accuracy, allowing many autopilot systems to operate effectively without a separate rudder feedback unit.
-
Adjustable Flow Rate: The pump features an adjustable displacement (from 500cc to 1L/min), allowing you to precisely match the pump's output to your specific steering cylinder's volume (9-18 CI).
-
Low Power Consumption: By reducing unnecessary course corrections and providing higher output per watt, it consumes up to 50% less battery power than competing models.
-
Integrated Shut-Off Valves: The manifold includes built-in isolation valves, allowing for easy servicing or removal of the pump without having to drain or bleed the entire steering system.
-
Reliable Design: With only three moving parts, the pump is designed for maximum longevity and quiet operation in demanding offshore environments.
In the Box
-
(1) Octopus Type 1 Adjustable Reversing Pump (12V)
-
(1) Integrated Shut-Off Manifold (1/4" NPT Ports)
-
(1) Molded Rubber Mounting Foot
-
Installation Hardware & Quick Start Guide
Specifications
| Feature | Specification |
| Model Number | OCTAF1012 |
| Voltage | 12V DC |
| Cylinder Capacity | 9 - 18 Cubic Inches (150cc - 300cc) |
| Flow Rate | 500cc - 1000cc (1.0L) / min (Adjustable) |
| Max Current | 19 Amps |
| Average Current | 4 - 6 Amps |
| Mounting | Floor Mount (Molded rubber foot) |
-
Brand: Octopus Autopilot Drives
-
Model: Type 1 Adjustable Reversing Pump
-
Part Number: OCTAF1012
-
Voltage: 12V DC
-
Cylinder Capacity: Up to 15 CI
-
Flow Rate: Adjustable (approx. 500cc–1L/min)
-
Max Current: ~19A
-
Average Current: 4–6A
-
Weight: Approx. 8.3 lbs
-
Application: Hydraulic autopilot steering systems
Enhance your vessel’s autopilot performance with the Octopus OCTAF1012 Pump, delivering efficient power, precise control, and long-lasting reliability for smooth and accurate steering on the water.
Frequently Asked Questions (FAQs)
1. What is the Octopus OCTAF1012 autopilot pump used for?
The Octopus OCTAF1012 is a Type 1 adjustable reversing hydraulic pump designed for marine autopilot systems. It controls hydraulic fluid flow to the steering cylinder, allowing a compatible autopilot system to steer the boat automatically.
2. What size hydraulic steering cylinder is compatible with the OCTAF1012?
The Octopus OCTAF1012 is designed for hydraulic steering cylinders with a capacity of approximately 6 to 15 cubic inches (CI) according to the current selection guide. Verify your steering cylinder displacement before purchasing.
3. What voltage does the Octopus OCTAF1012 require?
The OCTAF1012 operates on a 12V DC electrical system, making it suitable for boats equipped with compatible 12-volt marine electrical systems.
4. Is the Octopus OCTAF1012 an adjustable autopilot pump?
Yes. The OCTAF1012 features an adjustable flow rate, allowing installers to fine-tune hydraulic output to match the boat's steering cylinder capacity and autopilot performance requirements.
5. What is the flow rate of the Octopus OCTAF1012?
The OCTAF1012 has an adjustable flow rate of approximately 600 to 1,000 cc per minute, depending on the pump setting and operating conditions.
6. What is the difference between a Type 1 and Type 2 autopilot pump?
Type 1 autopilot pumps are generally designed for smaller hydraulic steering cylinders, while Type 2 pumps provide higher hydraulic flow for larger steering systems. The correct pump depends on cylinder displacement and autopilot compatibility rather than boat length alone.
7. Is the Octopus OCTAF1012 compatible with Garmin autopilot systems?
The OCTAF1012 may be compatible with certain Garmin autopilot systems that support a 12V Type 1 reversing hydraulic pump. Compatibility depends on the Garmin course computer and its motor-drive specifications.
8. Can the Octopus OCTAF1012 work with Raymarine autopilots?
Yes, the OCTAF1012 may work with compatible Raymarine autopilot systems that support Type 1 hydraulic reversing pumps. Verify the autopilot control unit's voltage and current ratings before installation.
9. Does the Octopus OCTAF1012 support port and starboard steering?
Yes. The pump operates in both directions, allowing the autopilot to move hydraulic fluid as needed for port and starboard steering corrections.
10. Does the Octopus OCTAF1012 include shut-off valves?
Yes. The OCTAF1012 features integrated shut-off valves that help simplify hydraulic system servicing and maintenance.
11. What type of pump mechanism does the OCTAF1012 use?
The OCTAF1012 uses an adjustable hydraulic piston pump design. This technology helps reduce internal leakage and supports accurate steering cylinder positioning.
12. Can the OCTAF1012 be used with an existing hydraulic steering system?
Yes. The OCTAF1012 can be integrated into many compatible marine hydraulic steering systems. Verify cylinder capacity, hydraulic fittings, steering configuration, and autopilot controller requirements before installation.
13. What is the maximum current draw of the Octopus OCTAF1012?
The OCTAF1012 has a specified maximum current draw of approximately 19 amps, with typical operating current around 4–6 amps. Electrical protection and wiring must follow the manufacturer's installation requirements.
14. Is the Octopus OCTAF1012 suitable for saltwater boating?
The OCTAF1012 is designed for marine installations, including boats operating in saltwater environments. Install it in a protected location and inspect electrical and hydraulic connections regularly.
15. Can the Octopus OCTAF1012 replace an existing autopilot pump?
Yes. It can replace a compatible 12V Type 1 hydraulic autopilot pump, provided the steering cylinder displacement, flow requirements, hydraulic connections, and autopilot electronics are suitable.
16. Does the OCTAF1012 require a separate autopilot computer?
Yes. The OCTAF1012 is a hydraulic drive pump, not a complete autopilot system. It requires a compatible autopilot course computer and associated control components to operate automatically.
17. Does the Octopus OCTAF1012 require regular maintenance?
Routine maintenance includes inspecting hydraulic fittings for leaks, checking electrical connections, monitoring hydraulic fluid levels, and ensuring the steering system remains properly bled and free of trapped air.
18. Can the OCTAF1012 be installed vertically or horizontally?
Installation orientation must follow Octopus's mounting instructions. The pump should be securely mounted in an accessible, protected location with appropriate hydraulic hose routing and clearance.
19. Does the Octopus OCTAF1012 come with hydraulic hoses and fittings?
The OCTAF1012 is sold as an autopilot pump assembly. Required hoses, adapters, fittings, and installation accessories may vary depending on the vessel's steering system. Confirm the manufacturer's package contents before ordering.
20. How do I know if the Octopus OCTAF1012 is the right autopilot pump for my boat?
Check your hydraulic steering cylinder displacement, onboard voltage, autopilot course computer specifications, and hydraulic system configuration. For the OCTAF1012, the current selection guide specifies a cylinder capacity range of approximately 6–15 cubic inches.
Installation Tip: For the quietest operation, mount the pump on a solid, reinforced surface using the provided rubber vibration-dampening foot. If the pump is located near the helm, ensure the hydraulic lines are well-secured to prevent "knocking" during rapid course corrections.
