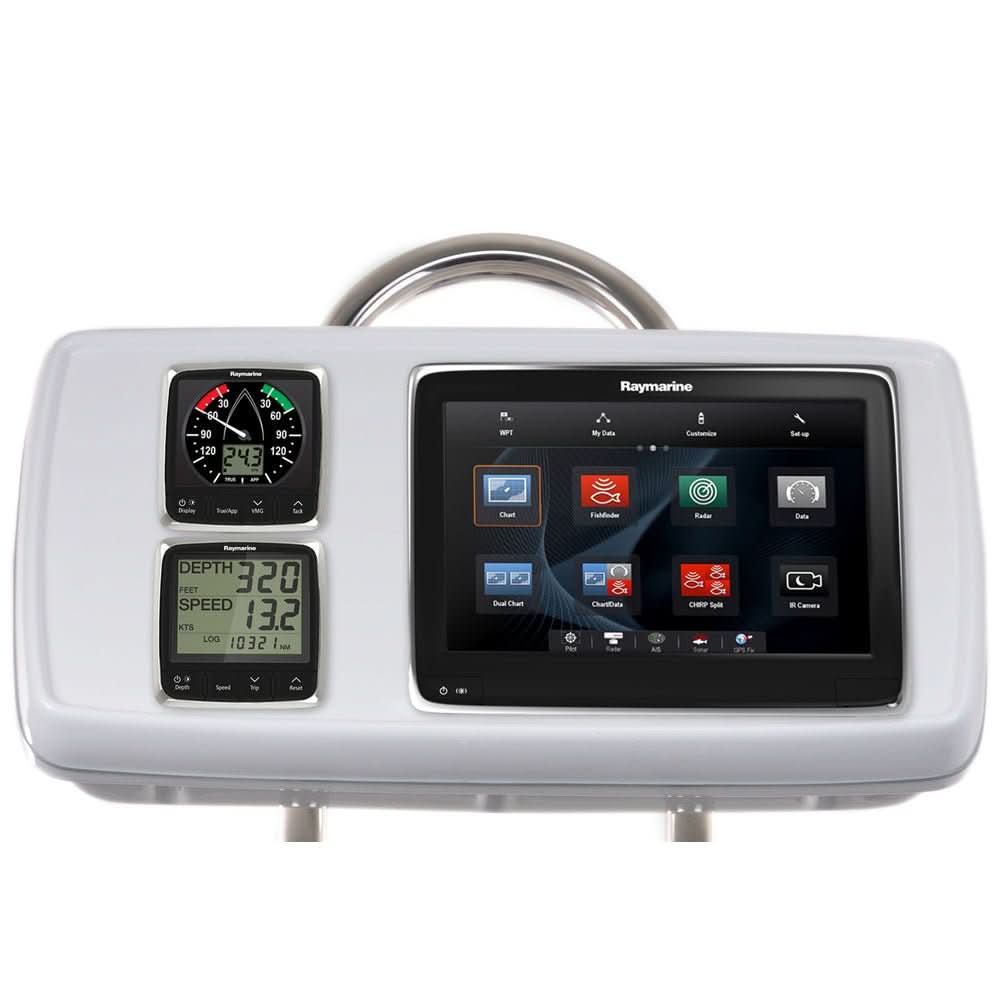

NavPod GP1170-04 SystemPod Pre-Cut f/Raymarine a125/a127/a128 & 2 Instruments f/9.5" Wide Guard

GP1170-04 SystemPod Pre-Cut for Raymarine a125/a127/a128 & 2 Instruments for 9.5" Wide Guard

NavPod GP1170 Series for 9.5" Guard, SystemPods for Sail are for mounting multiple pieces of electronics in one NavPod. This is a good way to reduce the height of a system. In addition to mounting a radar or chartplotter, you can have room for an autopilot, instrument, stereo controller, or VHF mic.

A SystemPod is best mounted on a Single Bend AngleGuards

SystemPods for Power are for mounting on a SK135 Stachion Kit can be used to mount a SystemPod on a flat surface, such as the flybridge. Stachion Kits can also be used with a SystemPod for overhead mounting applications.

Sizing:

Overall Size: 11.750"H x 23.25"W x 6.75"D

Usable Face: 9.9"H x 20.5"W x 5.375"D

Max Cutout: 9.125"H x 20"W

Instrument Cutout: 3.6"

All SystemPods include:

• Acrylic capped ABS plastic
• Chromed stainless steel tamper-proof fasteners
• Double seal for watertight integrity
• Models are available pre-cut for popular electronics
• Stainless steel mounting hardware and mounting gaskets

*See Literature tab for an image with dimensions
