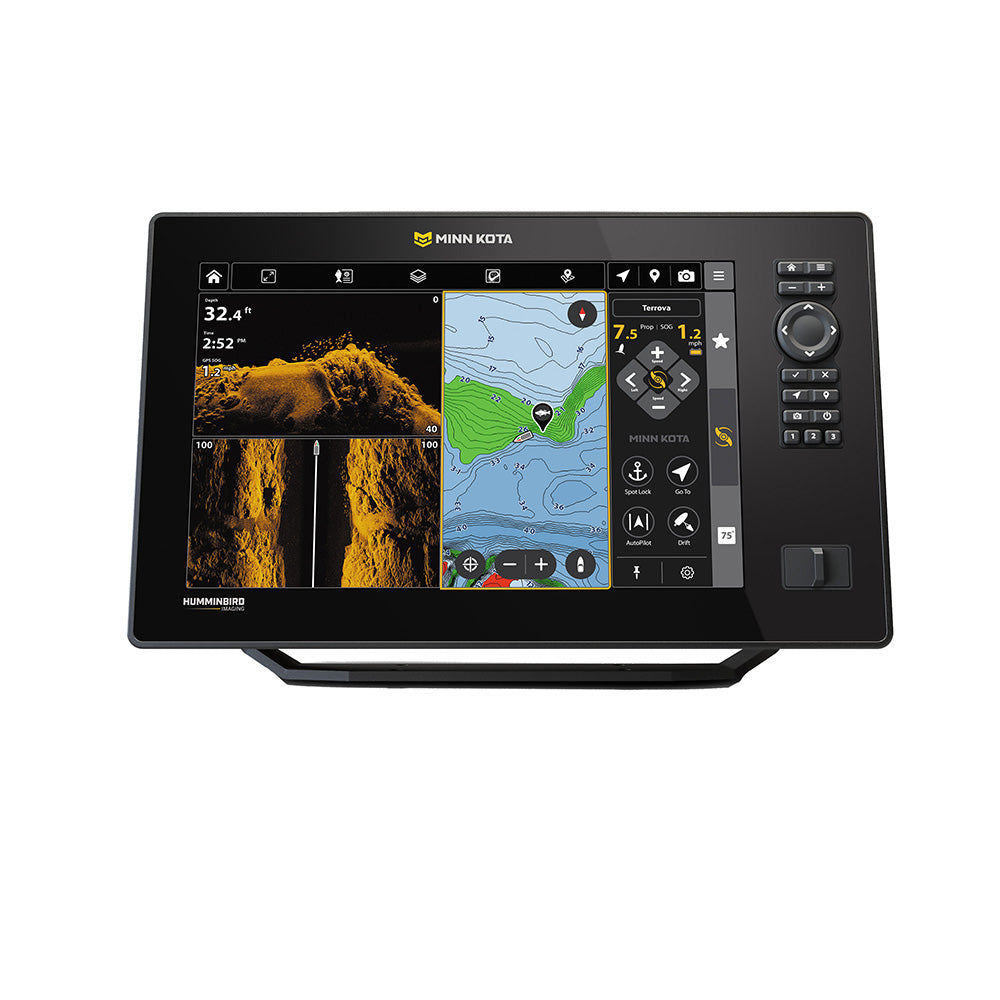

Minn Kota X12 CMSI+ VX 12" GPS/Fishfinder w/Transom Mount Transducer - 412390-1VX

Frequently Asked Questions (FAQs)

1. What is the Minn Kota X12 CMSI+ VX 412390-1VX?

The Minn Kota X12 CMSI+ VX is a premium 12.1-inch GPS chartplotter and fishfinder featuring Humminbird-powered sonar technology, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, and advanced boat-control integration. It is designed for anglers who want detailed underwater imaging, GPS navigation, and connected fishing technology in one system.

2. What size screen does the Minn Kota X12 have?

The Minn Kota X12 features a 12.1-inch color TFT display with 1280 x 800 resolution. Its high-resolution touchscreen provides excellent visibility in bright sunlight, rainy conditions, and while wearing polarized sunglasses.

3. Does the Minn Kota X12 CMSI+ VX include a transducer?

Yes. Model 412390-1VX includes a transom-mount imaging transducer. Minn Kota's specifications identify the included transducer as the XM 14 HW CMSI T, while its package list identifies the XNT 14 HW CMSI 150 T. Confirm the exact transducer model if a specific mounting configuration is required.

4. What sonar technologies are included with the Minn Kota X12?

The X12 includes three primary sonar technologies: MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP. Together, they provide detailed views of fish, underwater structure, bottom contours, and surrounding areas.

5. What is MEGA Side Imaging+ on the Minn Kota X12?

MEGA Side Imaging+ uses high-frequency sonar to produce detailed images of underwater structure and fish on both sides of the boat. It helps anglers locate submerged trees, rocks, vegetation, and other fish-holding areas without driving directly over them.

6. How far can the Minn Kota X12 Side Imaging sonar reach?

The X12 supports up to 400 feet of total side-to-side coverage using MEGA Side Imaging+ and up to 800 feet of total side-to-side coverage using 455 kHz imaging. Actual performance depends on water conditions, installation, and sonar settings.

7. What is MEGA Down Imaging+?

MEGA Down Imaging+ provides detailed sonar images directly beneath the boat. It helps anglers distinguish fish from submerged structure and identify bottom features that may not be as clear with traditional sonar.

8. How deep can the Minn Kota X12 detect fish?

With its standard transducer, the Minn Kota X12 has a maximum traditional sonar depth rating of 600 feet. It also supports up to 200 feet with MEGA Down Imaging and 400 feet with 455 kHz Down Imaging. An optional compatible Airmar CHIRP transducer can extend traditional sonar capability to 3,500 feet.

9. Does the Minn Kota X12 have built-in GPS?

Yes. The X12 includes an internal GPS receiver and GPS chartplotting capabilities. Anglers can mark waypoints, create routes, record tracks, and navigate to saved fishing locations.

10. Does the Minn Kota X12 include navigation maps?

Yes. The X12 includes a Minn Kota map card and supports Minn Kota Maps navigation features. Optional Minn Kota Maps Premium products provide additional charting capabilities.

11. What is Draw and Navigate on the Minn Kota X12?

Draw and Navigate allows anglers to draw a route directly on the touchscreen. When connected to a compatible Minn Kota trolling motor, the system can automatically guide the boat along the selected route.

12. Can the Minn Kota X12 control a trolling motor?

Yes. The X12 integrates with compatible Minn Kota trolling motors to provide connected navigation and boat-positioning functions. Available controls depend on the specific trolling motor and its installed technology.

13. What is Intelligent Depth Control?

Intelligent Depth Control monitors changing water depths and provides alerts when shallow conditions are detected. With compatible connected equipment, the system can automatically engage Spot-Lock and deploy supported shallow-water anchors when necessary.

14. Is the Minn Kota X12 compatible with MEGA Live sonar?

Yes. The X12 supports compatible MEGA Live and MEGA Live 2 sonar systems, allowing anglers to view real-time fish movement and underwater activity. Live sonar equipment is sold separately.

15. Can the Minn Kota X12 connect to other marine electronics?

Yes. The X12 supports Ethernet networking, Wi-Fi, Bluetooth, and NMEA 2000 connectivity. These connections allow integration with compatible fishfinders, trolling motors, shallow-water anchors, radar, and other supported marine equipment.

16. Does the Minn Kota X12 support AutoChart Live?

Yes. AutoChart Live allows anglers to create custom fishing maps while navigating. It records information such as depth contours, bottom hardness, and vegetation. The X12 includes eight hours of built-in AutoChart Live recording capacity, with additional capacity available using compatible AutoChart Zero Line cards.

17. Can I use the Minn Kota X12 with the Minn Kota Fishing App?

Yes. The Minn Kota Fishing App allows users to manage compatible connected equipment and organize fishing waypoints. Anglers can sync, edit, group, and sort waypoints using a compatible mobile device.

18. What comes in the box with the Minn Kota X12 CMSI+ VX?

According to Minn Kota, the package includes:

• Minn Kota X Series 12.1-inch control head

• Minn Kota map card

• Transom-mount imaging transducer

• 10-foot fishfinder power cable

• Mounting bracket

• Premium silicone unit cover

Additional network cables, mounting accessories, or compatible trolling motor equipment may be required for certain installations.

19. Does the Minn Kota X12 require an external GPS antenna?

The X12 has a built-in GPS receiver for standard installations. However, Minn Kota requires an external GPS antenna for in-dash installations to ensure accurate positioning and navigation. The external antenna is sold separately.

20. What warranty comes with the Minn Kota X12 CMSI+ VX?

The Minn Kota X12 includes a two-year limited manufacturer warranty, which extends to three years with qualifying product registration. Warranty coverage is subject to Minn Kota's terms and registration requirements.
