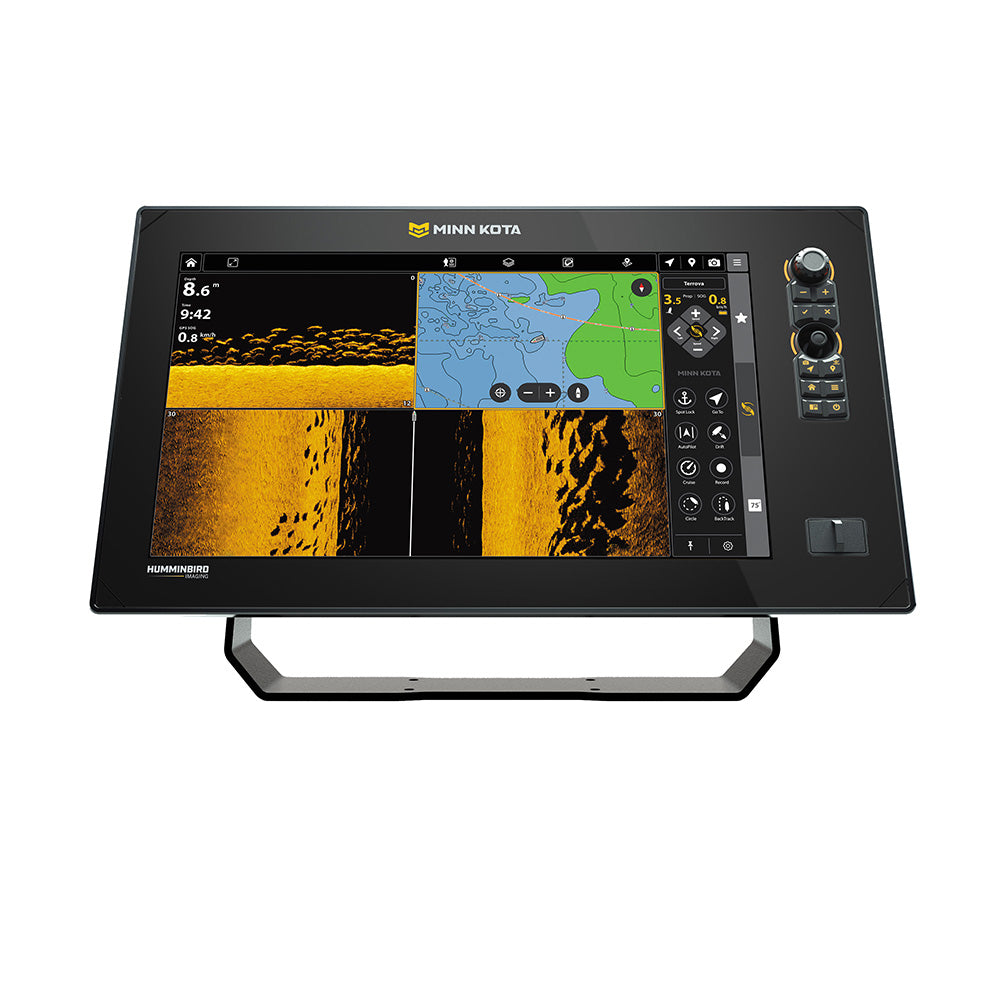

Minn Kota A16 MSI+ VX 16" GPS/Fishfinder w/Transom Mount Transducer - 412460-1VX
Couldn't load pickup availability
The Minn Kota A16 MSI+ VX GPS Fishfinder combines a high-definition color display with advanced Humminbird Imaging sonar and integrated navigation features. Its 15.6-inch screen uses a 1920 x 1080 pixel matrix and is engineered for clear viewing in rain, bright sunlight, and while wearing polarized lenses. The Cross Touch interface lets you control the display by touchscreen or keypad, while the quick-launch home screen provides convenient access to key functions.
Advanced sonar includes Dual Spectrum CHIRP, MEGA Down Imaging+, and MEGA Side Imaging+, helping reveal fish and underwater structure with detailed views. The unit supports 50, 83, 200, 455, and 800 kHz frequencies, along with HW DSC CHIRP and MEGA. Standard sonar depth reaches 1,200 feet with the included transducer, while Down Imaging and Side Imaging provide coverage based on the selected frequency.
Built-in Ethernet, Wi-Fi, Bluetooth, HDMI video input and output, and NMEA 2000 networking support an integrated boat system. The fishfinder can connect with compatible Minn Kota trolling motors, shallow water anchors, sonar, mapping tools, and other networked devices. Features include Draw and Navigate, Intelligent Depth Control, AutoChart Live mapping, wireless software updates, waypoint management through the Minn Kota Fishing App, and media tools for capturing and sharing underwater views.
The Minn Kota A16 MSI+ VX includes a power adapter, gimbal bracket, and XM 14 HW MSI T transom mount transducer. It is compatible with Live Sonar and Minn Kota Maps Premium, which are sold separately. A 2-year limited warranty is included and may be extended to 3 years with product registration.
Features:
- High-Definition Display: 15.6-inch color TFT display with a 1920 x 1080 pixel matrix and polarized-eye-relief design.
- Cross Touch Interface: Control the fishfinder using the touchscreen or keypad.
- Advanced Sonar: Includes Dual Spectrum CHIRP, MEGA Down Imaging+, and MEGA Side Imaging+.
- Supported Frequencies: Supports 50, 83, 200, 455, and 800 kHz, HW DSC CHIRP, and MEGA.
- Standard Sonar Depth: Reaches 1,200 feet with the standard transducer.
- Down Imaging: Supports coverage up to 400 feet at 455 kHz, 250 feet with MEGA, and 125 feet at 800 kHz.
- Side Imaging: Provides side-to-side coverage up to 800 feet at 455 kHz, 500 feet with MEGA, and 250 feet at 800 kHz.
- Networking: Includes Ethernet, Wi-Fi, Bluetooth, HDMI video input and output, and built-in NMEA 2000 networking.
- Navigation and Mapping: Supports Draw and Navigate, Intelligent Depth Control, AutoChart Live, and Minn Kota Maps Premium.
- Wireless Management: Works with the Minn Kota Fishing App for waypoint management, system control, media sharing, and software updates.
- Included Components: Power adapter, gimbal bracket, and XM 14 HW MSI T transom mount transducer.
- Warranty: Includes a 2-year limited warranty, extendable to 3 years with product registration.
Minn Kota A16 MSI+ VX 16" GPS/Fishfinder w/Transom Mount Transducer
The Minn Kota A16 MSI+ VX GPS Fishfinder combines a high-definition color display with advanced Humminbird Imaging sonar and integrated navigation features. Its 15.6-inch screen uses a 1920 x 1080 pixel matrix and is engineered for clear viewing in rain, bright sunlight, and while wearing polarized lenses. The Cross Touch interface lets you control the display by touchscreen or keypad, while the quick-launch home screen provides convenient access to key functions.
Advanced sonar includes Dual Spectrum CHIRP, MEGA Down Imaging+, and MEGA Side Imaging+, helping reveal fish and underwater structure with detailed views. The unit supports 50, 83, 200, 455, and 800 kHz frequencies, along with HW DSC CHIRP and MEGA. Standard sonar depth reaches 1,200 feet with the included transducer, while Down Imaging and Side Imaging provide coverage based on the selected frequency.
Built-in Ethernet, Wi-Fi, Bluetooth, HDMI video input and output, and NMEA 2000 networking support an integrated boat system. The fishfinder can connect with compatible Minn Kota trolling motors, shallow water anchors, sonar, mapping tools, and other networked devices. Features include Draw and Navigate, Intelligent Depth Control, AutoChart Live mapping, wireless software updates, waypoint management through the Minn Kota Fishing App, and media tools for capturing and sharing underwater views.
The Minn Kota A16 MSI+ VX includes a power adapter, gimbal bracket, and XM 14 HW MSI T transom mount transducer. It is compatible with Live Sonar and Minn Kota Maps Premium, which are sold separately. A 2-year limited warranty is included and may be extended to 3 years with product registration.
Features:
- High-Definition Display: 15.6-inch color TFT display with a 1920 x 1080 pixel matrix and polarized-eye-relief design.
- Cross Touch Interface: Control the fishfinder using the touchscreen or keypad.
- Advanced Sonar: Includes Dual Spectrum CHIRP, MEGA Down Imaging+, and MEGA Side Imaging+.
- Supported Frequencies: Supports 50, 83, 200, 455, and 800 kHz, HW DSC CHIRP, and MEGA.
- Standard Sonar Depth: Reaches 1,200 feet with the standard transducer.
- Down Imaging: Supports coverage up to 400 feet at 455 kHz, 250 feet with MEGA, and 125 feet at 800 kHz.
- Side Imaging: Provides side-to-side coverage up to 800 feet at 455 kHz, 500 feet with MEGA, and 250 feet at 800 kHz.
- Networking: Includes Ethernet, Wi-Fi, Bluetooth, HDMI video input and output, and built-in NMEA 2000 networking.
- Navigation and Mapping: Supports Draw and Navigate, Intelligent Depth Control, AutoChart Live, and Minn Kota Maps Premium.
- Wireless Management: Works with the Minn Kota Fishing App for waypoint management, system control, media sharing, and software updates.
- Included Components: Power adapter, gimbal bracket, and XM 14 HW MSI T transom mount transducer.
- Warranty: Includes a 2-year limited warranty, extendable to 3 years with product registration.
BRAND: Minn Kota
Manufacturer Part Number: 412460-1VX
Minn Kota A16 MSI+ VX 16" GPS/Fishfinder w/Transom Mount Transducer - 412460-1VX is backordered and will ship as soon as it is back in stock.
