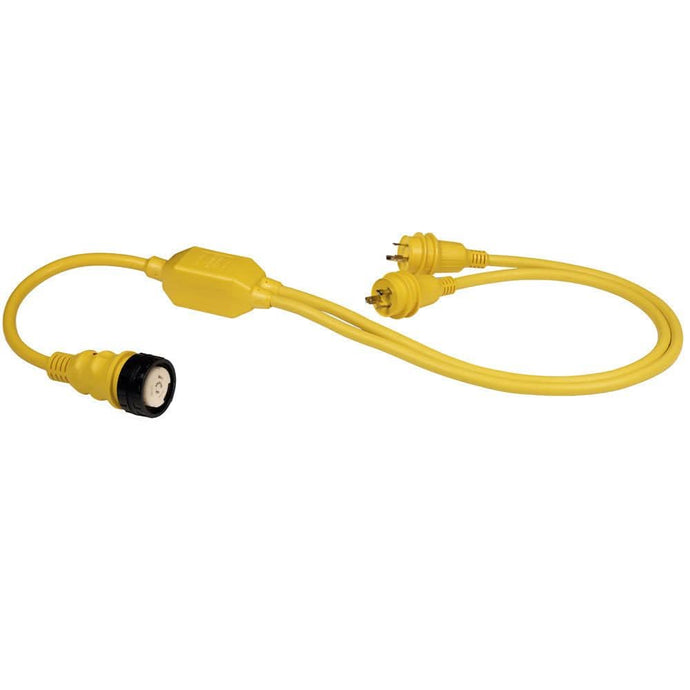

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable - RY504-2-30
$334.99
$563.33
Unit price
/
Unavailable
SKU:
49257
Manufacturer Part #: RY504-2-30
Couldn't load pickup availability
Marinco RY504-2-30 50A Female to 2-30A Male Reverse Y Cable - RY504-2-30
Reverse Y Adapter
The Reverse Y Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse Y provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse Y will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.
Boat Side: Female Connector
Dock Side: Male Plug
Reverse Y Adapter
The Reverse Y Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse Y provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse Y will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.
Boat Side: Female Connector
- 50A 125/250V
- with Sealing Collar System
- Attaches to boat inlet or cordset
Dock Side: Male Plug
- 2-30A 125V
- Locking
- Attaches to dockside receptacle or cordset
Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable - RY504-2-30 is backordered and will ship as soon as it is back in stock.
