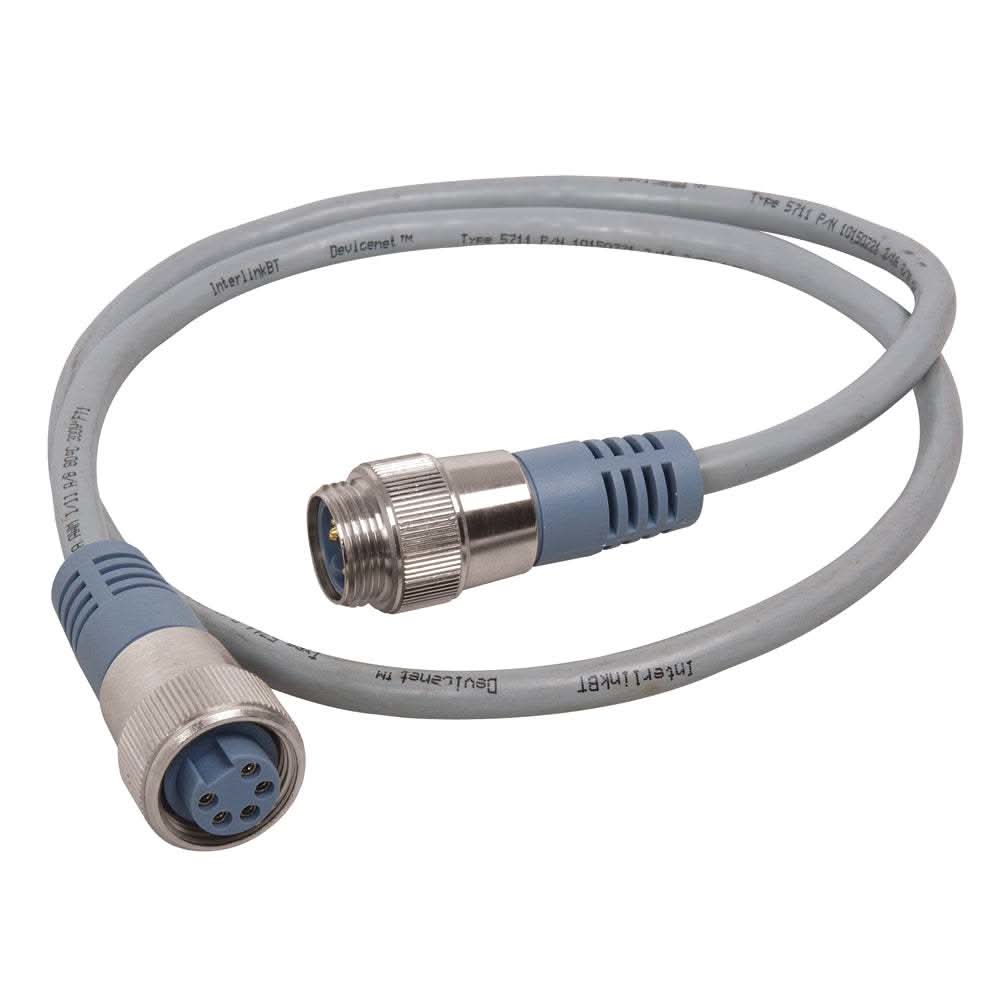

Maretron Mini Double-Ended Cordset - 3 Meter - NM-NG1-NF-03.0
$54.99
Unit price
/
Unavailable
SKU:
31824
Manufacturer Part #: NM-NG1-NF-03.0
Couldn't load pickup availability
Maretron Mini Double-Ended Cordset - 3 Meter - NM-NG1-NF-03.0
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 1.06
Electrical
Current Rating: 9.0 Amps
Voltage Rating: 300 V
Cable
Outer Jacket Mat/Color: PVC/Blue
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x15 AWG, 2x18 AWG, 18 AWG Drain Wire
Shielding (3-Levels): Braid (Overall), Foil (Power Pair),
Foil (Data Pair)
Environmental
Protection Class: IEC IP67, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
Approval
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
Mechanical
Electrical
Cable
Environmental
Approval
Maretron Mini Double-Ended Cordset - 3 Meter - NM-NG1-NF-03.0 is backordered and will ship as soon as it is back in stock.
