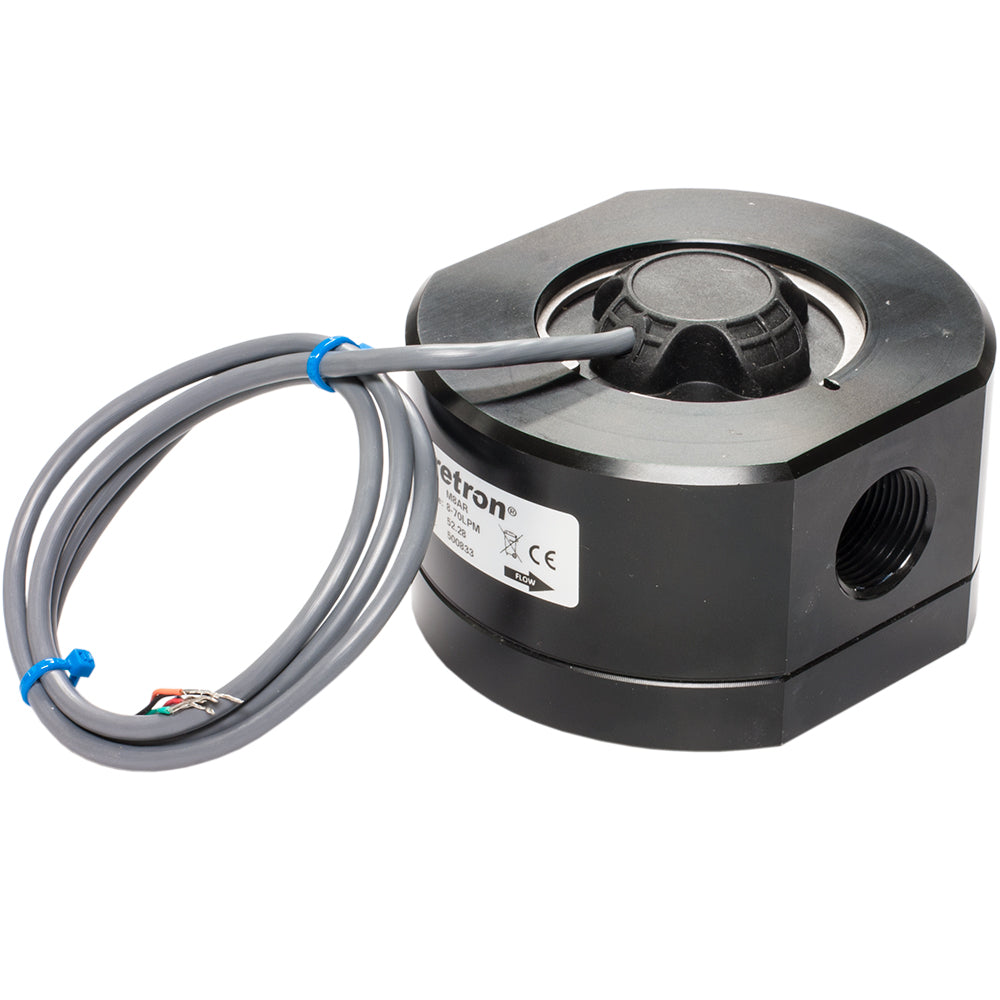

Maretron Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM - M8AR

Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM

When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

Specifications:

• Construction: Housing Material Aluminum

• Port Size: 3/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Strainer Size: 60 Mesh (If not already installed after fuel filter)
