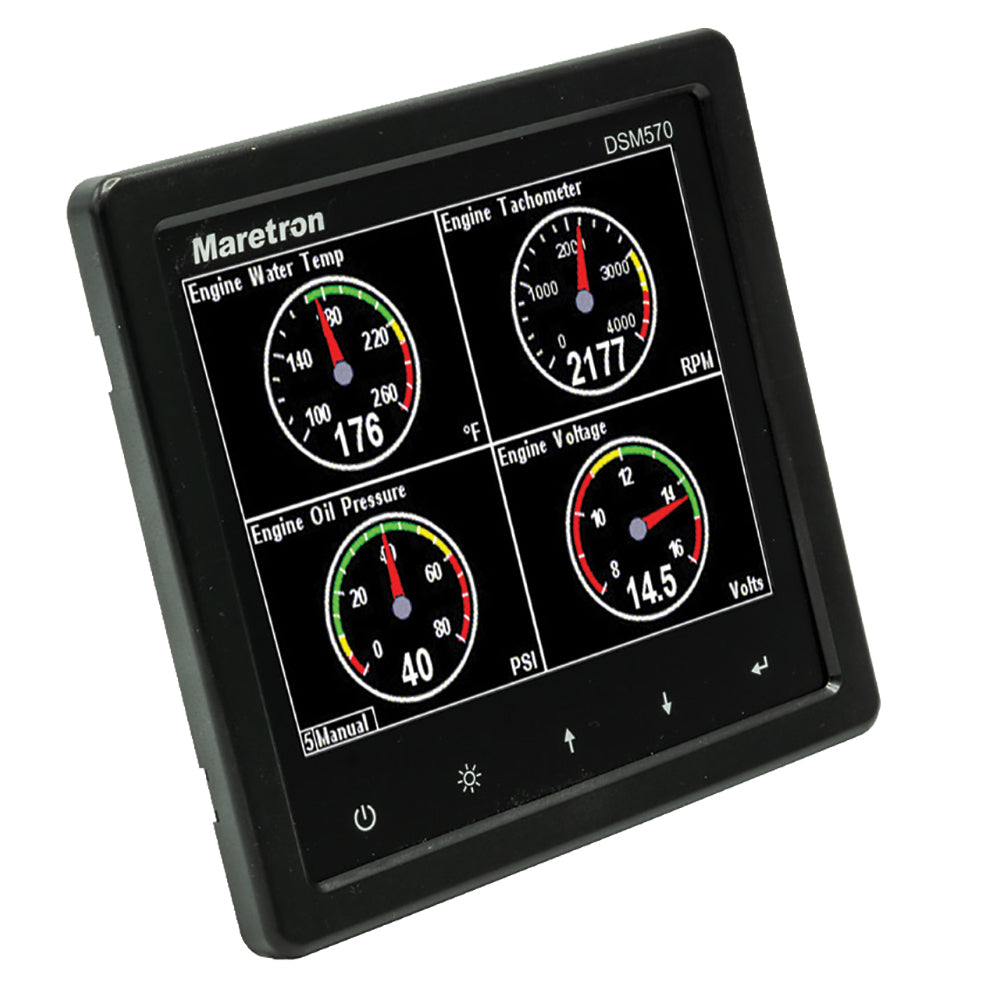

Maretron DSM570 5.7" High Resolution Color Display with Black Enclosure - DSM570-01

Maretron DSM570 5.7" High-Resolution Color Display – Black Enclosure – DSM570-01

Transform your helm station with the Maretron DSM570 5.7" High-Resolution Color Display (DSM570-01) — a premium, NMEA 2000-integrated multifunction display that delivers vivid graphics, intuitive navigation, and real-time system monitoring. Designed for boats and yachts of all sizes, the DSM570 enables you to view navigation data, engine and tank information, alarms, weather, and more on a crisp, bright 5.7-inch display that’s easy to read in all lighting conditions.

Built with marine-grade materials and a durable black enclosure, the DSM570 thrives in harsh offshore environments while providing reliable performance day after day. Its high-resolution color screen produces clear, easy-to-read fonts, gauges, charts, and icons — giving you immediate insights into your vessel’s systems. With versatile display layouts and customizable pages, you can tailor the DSM570 to present the information most important to your operation.

By integrating seamlessly with your NMEA 2000 network, the Maretron DSM570 becomes a central hub for onboard data — pulling inputs from sensors, GPS receivers, tank senders, engine modules, and more. Whether you’re underway, at anchor, or cruising offshore, the DSM570 enhances situational awareness and vessel control.

Technical Specifications

• Brand: Maretron

• Model: DSM570 High-Resolution Color Display

• Part Number: DSM570-01

• Screen Size: 5.7 inches

• Display Type: Full-color, high-resolution LCD

• Network: NMEA 2000 (IEC 61162-3)

• Enclosure Color: Black

• Power Source: Powered via NMEA 2000 backbone

• Operating Environment: Marine-rated for saltwater and UV exposure

• Interfaces: NMEA 2000 (backbone), optional Ethernet/Wi-Fi via gateways

• Mounting Options: Flush or panel mount

Benefits

• Centralizes critical vessel data in one easy-to-read display

• Enhances situational awareness for navigation and systems

• Reduces cockpit clutter with customizable screen pages

• Integrates seamlessly with existing NMEA 2000 sensors and modules

• Enables configurable alarms for safety and preventative action

Applications

• Engine and system monitoring

• Fuel, water, and waste tank status

• GPS, speed, depth, and environmental sensors

• Alarm annunciation and vessel diagnostics

• Navigation and chart overlays (with compatible software)

.Summary for the User

The DSM570 is a "fit and forget" solution for boaters who want a dedicated, high-quality screen without the power draw or complexity of a full chartplotter. Its IP67 rating and aluminum construction ensure it can handle the vibration and salt spray of an open cockpit or a hot engine room.

Installation Tip: Because this unit has a Load Equivalence Number (LEN) of 9, ensure your NMEA 2000 backbone has sufficient power overhead, especially if you are adding it to a network with many other sensors.

Manufacturer : Maretron
Manufacturer Part No : DSM570-01
