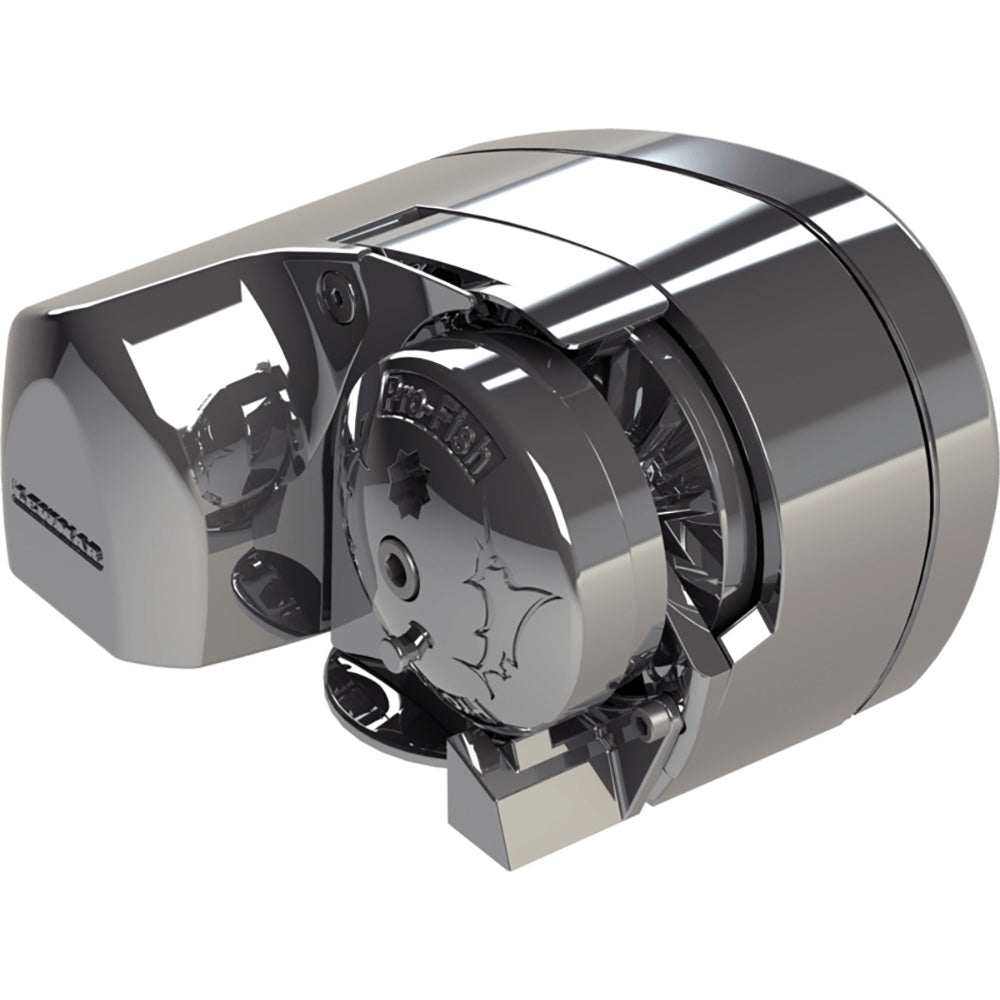

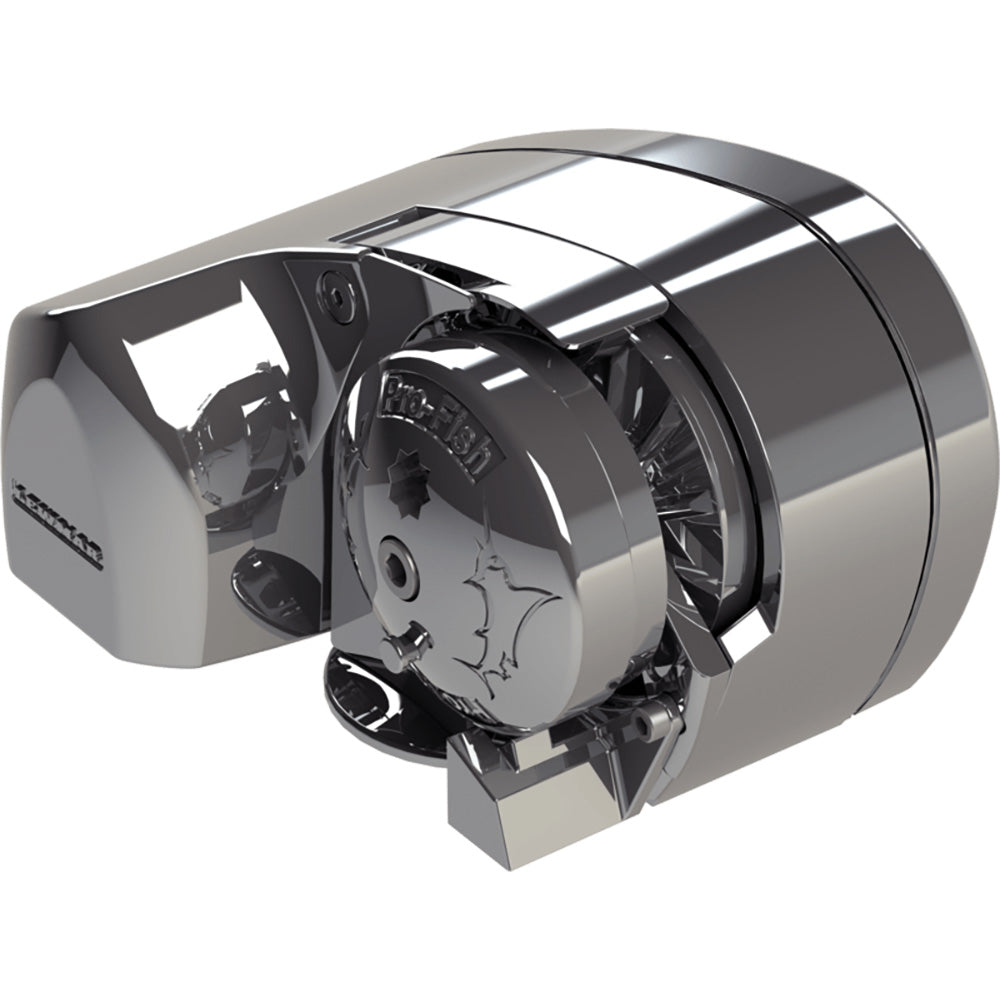

Lewmar Pro-Series Horizontal 700 Windlass Kit - 12V - 6656011967-310

Lewmar Pro-Series Horizontal 700 Windlass Kit - 12V - 6656011967-310

The Lewmar Pro-Series Horizontal 700 Windlass Kit – 12V is a premium anchor handling solution engineered for performance, durability, and smooth operation on a wide range of recreational and performance vessels. Built with precision marine engineering and rugged construction, this horizontal windlass kit provides powerful, reliable anchor retrieval and deployment while minimizing maintenance and maximizing corrosion resistance.

Powerful and Efficient Anchor Handling

Designed for boats where deck space or vertical clearance is limited, the Pro-Series Horizontal 700 features a compact, horizontally mounted gearbox and motor that deliver up to 700 lb (318 kg) of pull — ideal for small to medium cruising yachts and performance boats. Its efficient 12-volt DC motor ensures strong pulling power and smooth engagement whether anchoring in deep water or heavy weather.

Smooth, Reliable Operation

The Lewmar Pro-Series windlass uses a precision gearbox with helical gears for quiet, efficient power transfer and reduced wear over time. Whether handling chain, rope, or rope-and-chain rode, this windlass provides dependable performance with controlled deployment and retrieval.

Complete Kit for Easy Installation

This horizontal windlass kit includes everything needed for a complete anchor install:

• Durable 12 V DC motor and gearbox

• Chain gypsy for smooth chain engagement

• Rope runner for integrated rope handling

• Mounting hardware and fasteners

• Clearly labeled wiring kit for streamlined setup

With its thoughtfully engineered components and integrated design, the Pro-Series 700 kit simplifies installation and reduces the need for extra accessories.

Marine-Grade Durability

Built to withstand corrosive marine environments, the Pro-Series 700 features sealed DC motor components, corrosion-resistant finishes, and heavy-duty construction that hold up in saltwater conditions. Routine maintenance is minimal, helping keep your anchor system dependable over years of use.

Ideal For:

• Cruisers and coastal sailboats up to ~35 ft

• Performance powerboats and sport yachts

• Boats needing efficient horizontal windlass installation

• Chain and rope rode anchor systems

Key Features

• DIY-Ready: Features a simple "above-deck" installation; you only need to drill holes for the chain/rope and the mounting bolts.

• 100% 316 Stainless Steel: The entire exterior housing and gypsy are made from marine-grade stainless steel for maximum corrosion resistance and a mirror-like finish.

• Efficient Power: Provides a fast line speed of up to 105ft per minute, allowing for quick anchor retrieval.

• Manual Recovery: Includes a built-in emergency recovery feature using a standard 1/2" socket wrench.

• Quiet & Strong: Utilizes a highly efficient spur gearbox that combines low power consumption with high pulling strength.

• 5-Year Warranty: Backed by Lewmar’s industry-leading 5-year warranty on components (3-year on motor/solenoids).

In The Box

• 1x Lewmar Pro-Series 700 Windlass

• 1x Dual-Direction Solenoid (Contactor)

• 1x 50A Circuit Breaker

• 1x Guarded Rocker Switch

• Mounting Hardware & Base Gasket

• Emergency Manual Recovery Handle/Wrench

Upgrade your vessel’s anchoring system with the Lewmar Pro-Series Horizontal 700 Windlass Kit — a dependable, high-performance solution engineered for smooth anchor retrieval, long-lasting durability, and confident handling at anchor.

Manufacturer : Lewmar
Manufacturer Part No : 6656011967-310
