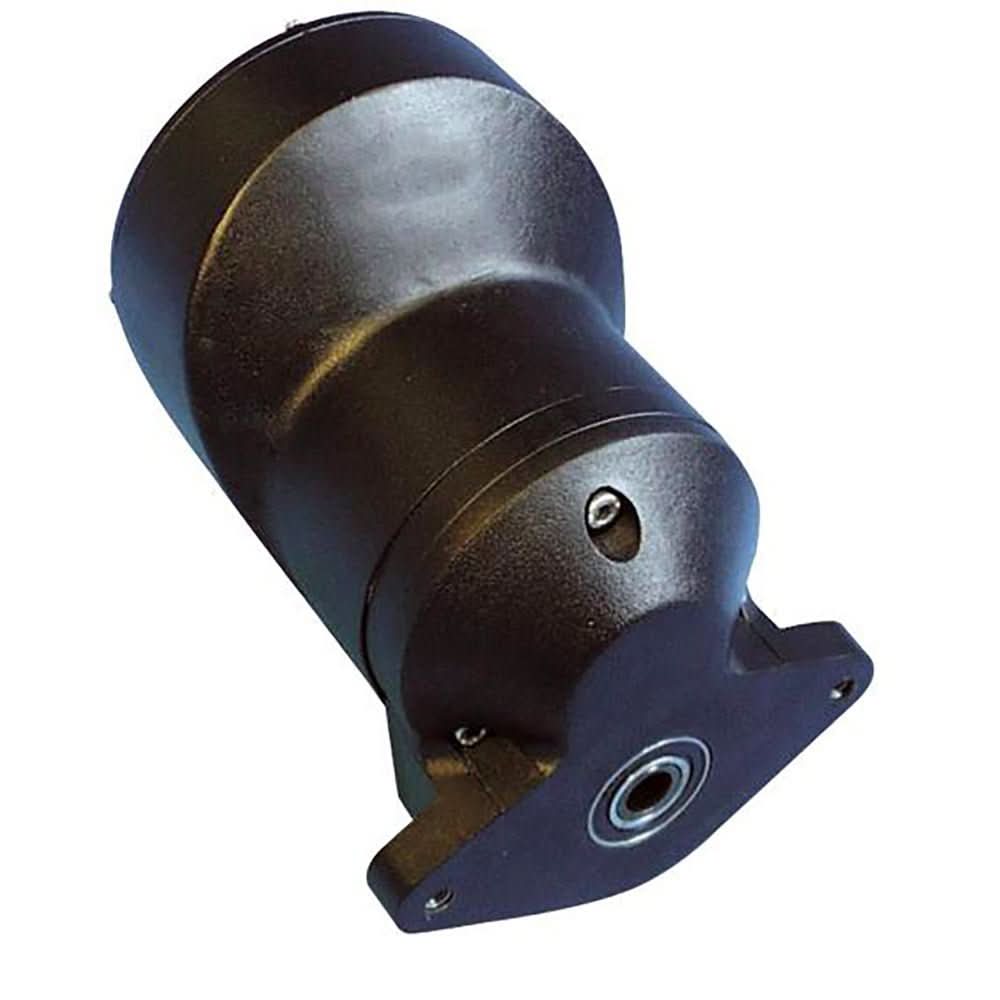

Lewmar Mamba Autopilot Drive - 12V - 89300053

Mamba Autopilot Drive - 12V

These unique autopilot drives are directly coupled to Mamba systems, eliminating the need for separate platforms, chains, and sprockets.

Specifications:

• Horsepower: 1/4
• Volts: 12
• Maximum Output Torque: 125 (ft. lbs.) / 169 (Nm)
• No Load Speed RMP: 10
• Maximum Rudder Torque: 1794 (ft. lbs.) / 248 (MGK)
• Average Current Consumption: 4A
• Circuit Breaker: 16A (motor) / 3A (clutch)
• Weight: 9 (kg) / 19.8 (lb.)
• Guide to Boat size: Up to 16.75m (60 ft.)
