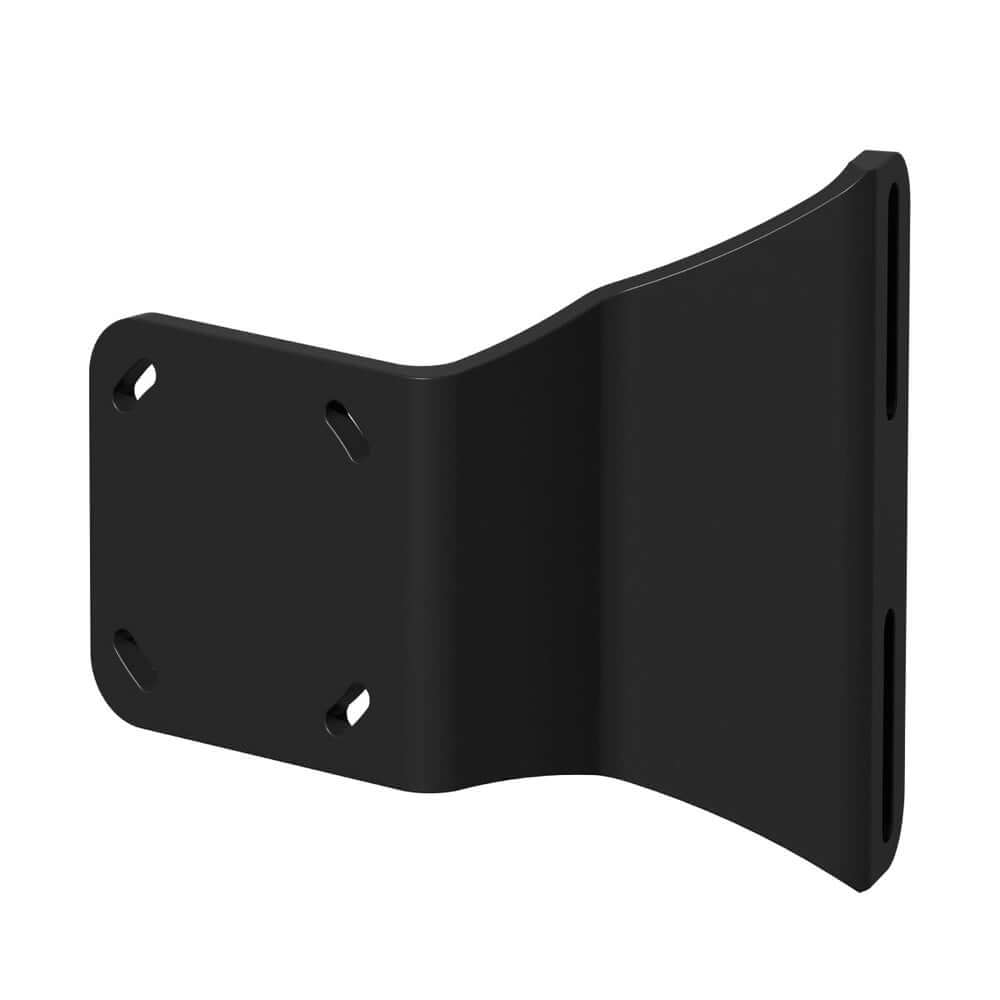

Lewmar Jack Plate Mounting Bracket for Axis & Vector Shallow Water Anchors – Black (2024028460)
The Lewmar Jack Plate Mounting Bracket (2024028460) provides a secure and convenient way to install Lewmar Axis™ and Vector™ shallow water anchors directly to your boat’s jack plate. Designed for simple installation, this bracket allows you to mount your anchor without drilling holes in the hull or removing the outboard motor, preserving the structural integrity of your boat.
Constructed from heavy-duty E-coated aluminum, the bracket delivers long-lasting strength and corrosion resistance in demanding marine environments. Its symmetrical design allows installation on either the port or starboard side, making it versatile for a variety of boat configurations.
The bracket is compatible with Lewmar quick-release mounting brackets, enabling easy removal of your shallow water anchor for transport or storage using basic tools. Installation hardware is included for a straightforward DIY setup.
Ideal for anglers and boaters using Lewmar shallow water anchors, this mounting bracket provides a clean, secure installation that keeps your deck and transom uncluttered while maintaining full motor functionality.
Key Features & Benefits
-
Jack Plate Integration: Specifically engineered to mount to the side of most T-H Marine Atlas and other popular jack plate brands, keeping the anchor tucked neatly behind the engine.
-
Heavy-Duty Build: Constructed from high-strength aluminum with a durable black powder coat finish to resist corrosion and handle the high torque of shallow water anchor deployment.
-
Universal Port/Starboard Design: This single bracket is reversible and can be used to mount an anchor on either the Port or Starboard side of your jack plate.
-
Clean Installation: By utilizing existing jack plate holes, it provides a much cleaner look and allows for easier adjustment of the anchor height relative to the waterline.
What’s In The Box
-
(1) Lewmar Jack Plate Mounting Bracket (Black)
-
Stainless Steel Mounting Hardware
-
Installation Instructions
Propulsion & Performance
The ATLAS 8" Heavy Duty Jack Plate and Turning Point Express Mach4 are designed for high-performance outboards, focusing on speed and engine positioning.
-
Jack Plate (AHJ-8VHD-B-DP): 8" setback, rated for 300hp/600lbs, 5.8" vertical travel, and an 8-second lift time.
-
Propeller (31431530): 13.5" diameter x 15" pitch, 4-blade stainless steel, right-hand rotation. Requires a 500 Series Hub Kit.
Navigation & Lighting
The Hella Marine NaviLED PRO and Hydro Glow HG1000G offer specialized illumination for compliance and fishing.
-
Stern Light (017462101): 3nm visibility, Multivolt (9-33V DC), draws <2W, and is IP67 waterproof.
-
Fishing Light (HG1000G): 42" length, 84 Watts, 7 Amp draw, and green LED output for attracting fish.
Safety & Network Systems
The Xintex P-1BS-R and TALOS Lightning Detector provide critical environmental alerts for your vessel.
-
Propane Detector: Triggers at 20% LEL, includes a 12V solenoid shut-off, and fits a standard 2-3/16" gauge hole.
-
Lightning Detector: 25-mile detection range, NMEA 2000 certified (LEN 1), and provides color-coded threat levels.
Rigging & Power
The and handle the fundamental infrastructure of your boat.
-
Shore Power: 25 feet, 50 Amp 125/250V, 6/4 AWG marine-grade wire, and features an LED power indicator.
-
Steering Cable: 8 feet long, universal fit for Teleflex/Morse systems, and includes stainless steel output fittings.
Specifications
-
Brand: Lewmar
-
Part Number: 2024028460
-
Color: Black
-
Material: E-coated aluminum
-
Mounting Location: Jack plate
-
Compatibility: Lewmar Axis™ and Vector™ shallow water anchors
-
Installation: Port or starboard side
-
Application: Shallow water anchor mounting bracket
Install your shallow water anchor quickly and securely with the Lewmar Jack Plate Mounting Bracket, a rugged mounting solution designed to simplify installation while protecting your boat’s structure.
BRAND: Lewmar
Manufacturer Part Number: 2024028460
Lewmar Jack Plate Mounting Bracket for Axis & Vector Shallow Water Anchors - Black - 2024028460 is backordered and will ship as soon as it is back in stock.
