Lenco LED Indicator Integrated Tactile Switch Kit w/Pigtail for Dual Actuator Systems - 15171-001
Manufacturer Part #: 15171-001
Couldn't load pickup availability

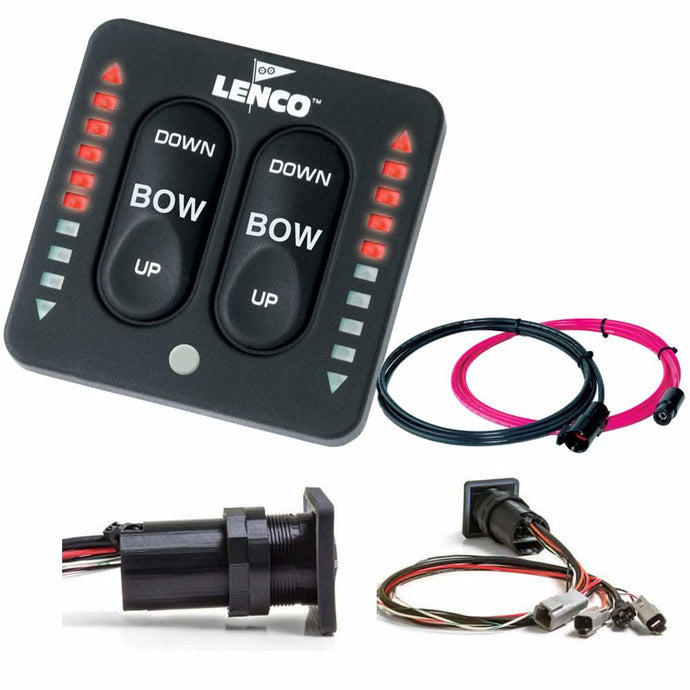

Lenco LED Indicator Integrated Tactile Switch Kit with Pigtail – Dual Actuator Systems (15171‑001)
The Lenco LED Indicator Integrated Tactile Switch Kit with Pigtail (Model 15171‑001) is a premium control solution designed specifically for dual‑actuator trim tab systems on boats. Combining a responsive tactile switch with an LED indicator, this switch kit offers intuitive control and clear visual feedback on trim tab movement right from the helm.
Built for marine environments, the integrated pigtail wiring harness simplifies installation and reduces clutter, making it easier to connect directly to your trim tab system without complex wiring. The tactile switch provides smooth, reliable actuation of both left and right trim tab actuators, while the LED indicators let you monitor tab position and deployment at a glance—enhancing safety, confidence, and ease of operation on the water.
Constructed with marine‑grade, corrosion‑resistant materials, this switch kit is designed to withstand harsh freshwater or saltwater conditions, delivering long‑lasting performance and durability. Whether you’re upgrading an existing control or replacing a worn switch kit, the Lenco 15171‑001 is a dependable choice for dual‑actuator systems.
Key Features:
-
Designed for dual‑actuator trim tab systems
-
Integrated LED indicators for real‑time actuator status
-
Tactile switch for responsive, easy control of left and right tabs
-
Includes pigtail wiring for simplified installation
-
Marine‑grade, corrosion‑resistant construction
-
Ideal as an upgrade or replacement switch kit
The Lenco 15171‑001 LED Indicator Integrated Tactile Switch Kit delivers precise control, visual feedback, and reliable performance for dual‑actuator trim tab systems, improving boat handling and ride quality.
Technical Specifications
| Feature | Details |
| Model Number | 15171-001 (Replaces 15071-001) |
| System Type | 12V or 24V DC (Dual Actuator per tab) |
| Hole Cut-Out Size | 2-1/16" Diameter (Standard gauge size) |
| Bezel Dimensions | 2.75" x 2.75" |
| Mounting Depth | 4.08" clearance required behind the dashboard |
| Harness Length | 30" harness from bezel + 36" power pigtail |
| Compliance | CE Certified |
Key Features
-
All-In-One Integration: Similar to the single-actuator version, this model integrates the control box functionality directly into the keypad bezel.2 This eliminates the need to mount a separate, bulky control box under the dash, significantly simplifying your wiring.
-
High-Intensity LED Indicators: Features two columns of bright LEDs that provide real-time visual confirmation of each tab's position.
-
Automatic Retraction: A vital safety feature that automatically retracts both sets of dual actuators when the engine's ignition is turned off, preventing damage to the rams during hauling or storage.
-
Intelligent Lighting: An integrated photo eye adjusts the brightness of the indicators based on ambient light conditions, while the backlit buttons ensure easy operation at night.
-
Dual Actuator Synchronization: The internal processor is specifically programmed to handle the higher amperage draw of four total actuators and ensures they move in perfect sync to prevent blade twisting.
Installation & Compatibility
-
Compatibility Note: This switch is designed for modern Lenco systems with waterproof Deutsch connectors. It is generally not compatible with Lenco components manufactured in 2016 or earlier.
-
Plug & Play: The kit is designed for a simple installation process, but because it controls dual actuators, ensure your power source can handle the combined amp draw of all four motors.
-
Maintenance Free: The solid-state design has no moving parts inside the control unit, making it highly resistant to the vibrations and moisture found in marine environments.
