Lenco 9" x 9" Standard Performance Trim Tab Kit without Switch Kit 12V - 15034-101
Manufacturer Part #: 15034-101
Couldn't load pickup availability
Lenco 9" x 9" Standard Performance Trim Tab Kit without Switch Kit 12V – 15034-101
The Lenco 15034-101 is a 9" x 9" Standard Performance Trim Tab Kit designed to deliver faster response, increased lift, and improved handling compared to standard trim tabs. Ideal for smaller boats and performance-oriented vessels, this kit enhances planing efficiency, ride stability, and overall control in changing sea conditions.
Built on Lenco’s proven all-electric trim tab technology, the 12-volt electric actuators provide quick, quiet, and reliable operation without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent choice for replacement installations, upgrades, or custom helm configurations where a compatible Lenco tactile or LED indicator switch is already installed.
The Standard Performance tab design generates quicker lift and more responsive adjustments, helping reduce bow rise during acceleration, minimize porpoising at cruising speeds, and correct side-to-side list caused by uneven passenger or gear weight. Constructed from marine-grade, corrosion-resistant materials, the Lenco 15034-101 is engineered for durability in harsh saltwater environments.
Key Benefits
-
9" x 9" performance trim tabs for quick response and efficient lift
-
Faster planing with reduced bow rise
-
Improves side-to-side leveling and overall stability
-
Minimizes porpoising at cruising speeds
-
Enhances fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
9" x 9" Standard Performance Trim Tabs
-
12V electric actuators for fast, quiet, and dependable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15034-101
-
Tab Dimensions: 9" x 9"
-
Tab Type: Standard Performance
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 9" x 9" Standard Performance Trim Tab Kit without Switch Kit is ideal for:
-
Small center console boats
-
Bay boats and flats boats
-
Performance-focused recreational vessels
-
Replacement or custom trim tab installations
Maintenance-Free Electric Precision
Lenco has set the marine industry standard by replacing high-maintenance hydraulic systems with fast-acting electric technology.
-
Instant Leveling: The included 12V 101 Standard Actuators provide immediate feedback. There is no hydraulic lag—the moment you touch the control, the boat responds.
-
Oil-Free Design: No messy hydraulic pumps, no hoses to bleed, and zero risk of fluid leaks into the bilge or the environment.
-
Waterproof Durability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, ensuring 100% submersible reliability in harsh saltwater.
Built to Last
-
Stainless Steel Construction: The 9" x 9" blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum lift and strength.
-
Flexible Integration: As a "Without Switch" kit, this SKU allows you to pair the hardware with any Lenco-compatible switch—including the Standard Tactile, LED Indicator, or integrated digital switching.
-
Fuel Efficiency: By optimizing your boat's running angle and reducing engine strain, this kit helps you save money at the fuel dock while providing a drier, more comfortable ride.
Technical Specifications
| Feature | Details |
| Model Number | 15034-101 |
| Blade Size | 9" Width x 9" Length |
| Boat Length Range | 14' – 18' |
| Voltage | 12V |
| Material | 12-Gauge 304 Stainless Steel |
| Switch Included | No (Sold Separately) |
| Actuators | (2) 101 Standard Actuators |
In the Box
-

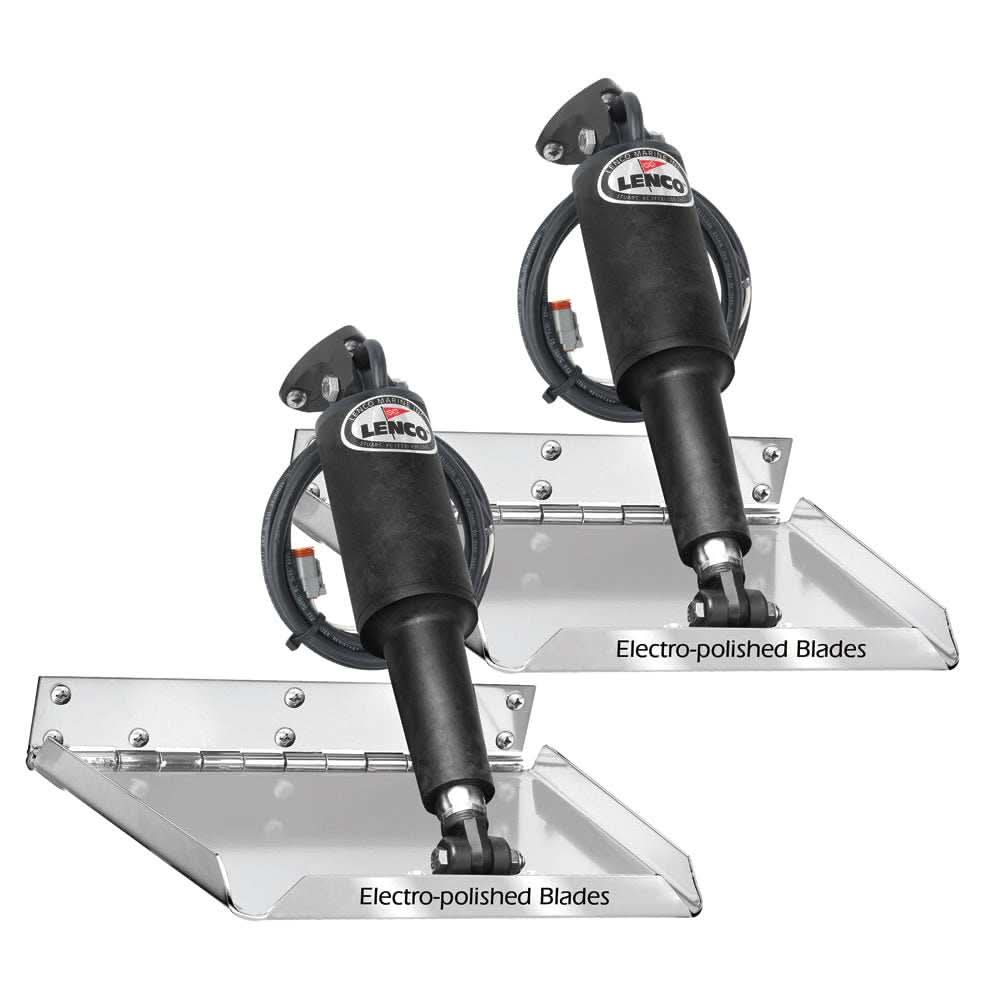

(2) 9" x 9" Stainless Steel Trim Tab Blades
-
(2) 101 Standard Actuators with 6' leads and Deutsch plugs
-
(2) Upper Mounting Brackets with Gland Seals
-
(2) Lower Mounting Brackets (Pre-attached)
-
(1) Full Stainless Steel Mounting Hardware Pack
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for Product Selection
"The 15034-101 is the perfect 'Direct Replacement' kit. If your existing Lenco blades are bent or your actuators have reached the end of their lifespan after years of service, this kit allows you to swap out the transom hardware while reusing your existing Lenco switch and wiring."
Upgrade your boat with the Lenco 15034-101 Standard Performance Trim Tab Kit for quicker planing, smoother rides, and precise all-electric trim control trusted by boaters worldwide.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15034-101
UPC : 874847004565
Lenco 9" x 9" Standard Performance Trim Tab Kit without Switch Kit 12V - 15034-101 is backordered and will ship as soon as it is back in stock.
