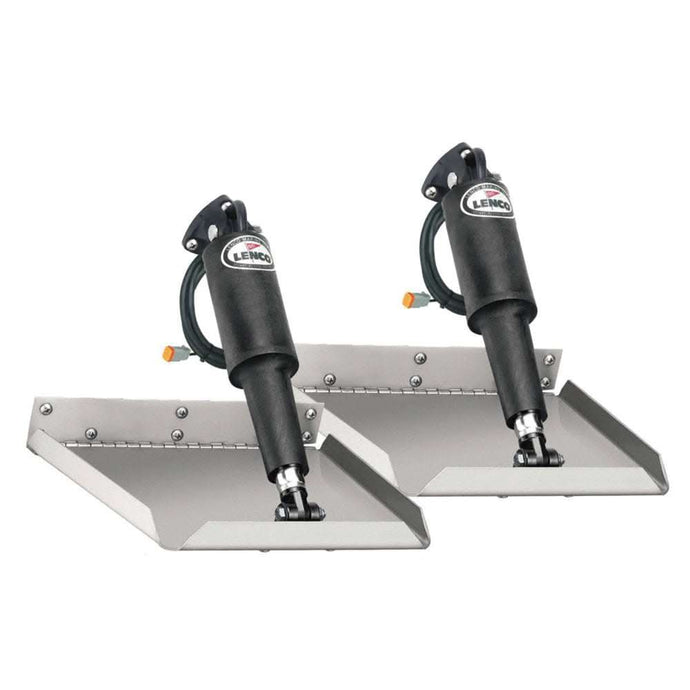

Lenco 9" x 9" Edgemount Trim Tab Kit without Switch Kit 12V - 15013-101
Manufacturer Part #: 15013-101
Couldn't load pickup availability
Lenco 9" x 9" Edgemount Trim Tab Kit without Switch Kit 12V – 15013-101
The Lenco 15013-101 is a 9" x 9" Edgemount Trim Tab Kit designed to provide precise trim control while maximizing usable transom space. The edgemount design positions the trim tabs along the outer edges of the transom, making this kit ideal for boats equipped with swim platforms, ladders, jack plates, or other transom-mounted accessories.
Built with Lenco’s proven all-electric trim tab technology, this 12-volt system delivers fast, quiet, and dependable performance without the complexity of hydraulic pumps, hoses, or fluid. This kit is supplied without a switch, making it an excellent choice for replacement installations, upgrades, or custom helm setups where a compatible Lenco tactile switch, LED indicator switch, or integrated control system is already installed.
The 9" x 9" trim tabs provide balanced lift to reduce bow rise during acceleration, correct side-to-side list caused by uneven passenger or gear weight, and minimize porpoising at cruising speeds. Constructed from marine-grade, corrosion-resistant materials, the Lenco 15013-101 is engineered to withstand harsh saltwater environments and deliver long-lasting, reliable performance.
Key Benefits
-
Edgemount design preserves valuable transom space
-
9" x 9" trim tabs for precise lift and responsive control
-
Reduces bow rise for faster planing and improved visibility
-
Corrects side-to-side list for balanced and stable operation
-
Minimizes porpoising at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
9" x 9" Edgemount Trim Tabs for transom-edge mounting
-
12V electric actuators for fast, quiet, and reliable operation
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Compatible with Lenco standard tactile switches, LED indicator switches, and integrated control systems
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab technology
Specifications
-
Model Number: 15013-101
-
Tab Dimensions: 9" x 9"
-
Mounting Style: Edgemount
-
Voltage: 12V
-
Switch Kit: Not Included
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 9" x 9" Edgemount Trim Tab Kit without Switch Kit is ideal for:
-
Small center console boats
-
Bay boats and flats boats
-
Boats with limited transom space or transom-mounted accessories
-
Replacement or custom trim tab installations
Maintenance-Free Electric Precision
Lenco’s all-electric design has set the industry standard by eliminating the maintenance and environmental risks of hydraulic systems.
-
Instant Feedback: The included 12V 101 Standard Actuators provide immediate stern lift. Unlike hydraulic systems that suffer from lag, electric tabs allow for micro-adjustments in real-time.
-
Oil-Free Reliability: No hydraulic pumps to mount, no hoses to run, and zero risk of messy oil leaks in your bilge.
-
Submersible Durability: Actuators are housed in high-impact, UV-resistant glass-filled nylon with double O-ring seals, specifically designed to be 100% waterproof and submersible for years.
Premium Marine Grade Materials
-
Heavy-Duty Construction: The 9" x 9" blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for maximum structural integrity.
-
Custom Flexibility: Because this is a "Without Switch" kit, it provides the freedom to select your preferred control interface, whether it's a Lenco LED Indicator Switch, a Tactile Switch, or a digital switching system.
-
Plug-and-Play Wiring: Features waterproof Deutsch connectors for a secure, corrosion-resistant electrical connection.
Technical Specifications:
| Feature | Details |
| Model Number | 15013-101 |
| Blade Size | 9" Width x 9" Length |
| Mounting Style | Edgemount (Low-profile) |
| Boat Length Range | 14' – 18' |
| Voltage | 12V |
| Material | 12-Gauge 304 Stainless Steel |
| Switch Included | No (Sold Separately) |
In the Box: 15013-101 Kit
-
(2) Edgemount Trim Tab Blades: 9" x 9" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads and Deutsch plugs.
-
(2) Upper Mounting Brackets: Featuring specialized gland seals.
-
(2) Lower Mounting Brackets: (Pre-attached to blades).
-
(1) Hardware Pack: Complete set of stainless steel mounting screws.
-
Note: This kit does not include a helm switch or the 20' extension wiring harnesses.
Pro-Tip for Product Selection:
"The 9" x 9" Edgemount is the best-selling solution for small center consoles and flats boats. If you have a boarding ladder on one side and a transducer on the other, the Edgemount design gives you the flexibility to install powerful stabilization where a standard kit simply won't fit."
Upgrade your boat with the Lenco 9" x 9" Edgemount Trim Tab Kit (15013-101) for smoother rides, improved handling, and dependable all-electric trim control—without sacrificing valuable transom space.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15013-101
UPC : 874847004343
Lenco 9" x 9" Edgemount Trim Tab Kit without Switch Kit 12V - 15013-101 is backordered and will ship as soon as it is back in stock.
