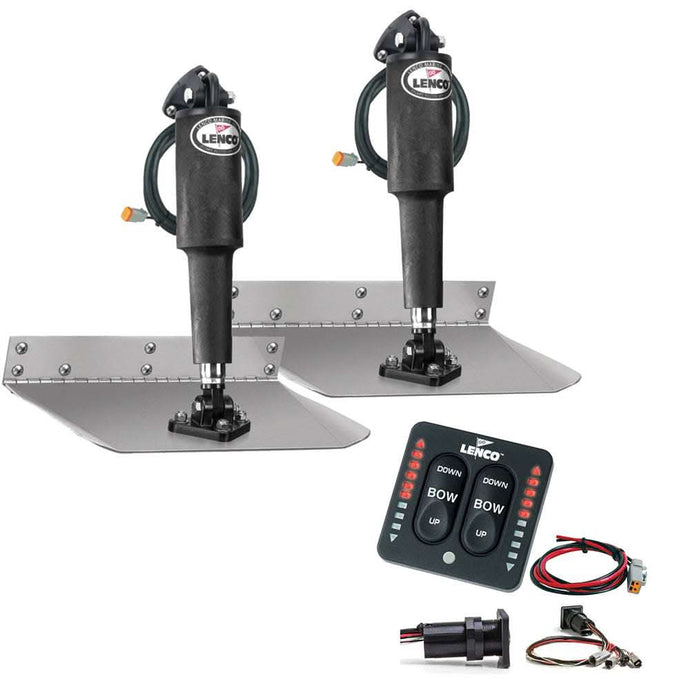

Lenco 9" x 24" Standard Trim Tab Kit with LED Indicator Switch Kit 12V - TT9X24I

The Lenco TT9X24I is a high-performance Standard Mount Trim Tab Kit designed for mid-to-large sized vessels. This kit features 9" x 24" stainless steel planes and comes bundled with Lenco's premium LED Indicator Switch Kit, offering precise control and real-time visual feedback of your boat's attitude.

Wide-Span Performance

The 24-inch "span" (width along the transom) of these tabs provides exceptional lift and lateral stability. This wider configuration is ideal for boats that struggle to get on plane at lower speeds or those with uneven weight distributions, as the increased surface area creates more hydrodynamic lift with less drag than a longer, narrower tab.

Key Features:

• LED Indicator Switch Kit: Includes a waterproof tactile keypad with two high-intensity LED displays. It features a photo eye for automatic dimming and a built-in retractor that automatically raises the tabs when the ignition is turned off.

• Instant Response Actuators: Lenco’s electric ballscrew design is up to three times more powerful than hydraulic systems and provides immediate reaction for precise leveling in rough seas.

• Maintenance-Free: The system is fully submersible, oil-free, and sealed for life—eliminating the mess and potential failure points of hydraulic pumps and hoses.

• Heavy-Duty Construction: Features 12-gauge laser-cut 304 stainless steel planes with a 5/8" flared trailing edge for added strength and lift.

Benefits

• Enhances boat stability and handling

• Reduces bow rise and improves planing performance

• Helps correct side-to-side list

• Provides intuitive LED feedback at the helm

• Clean, time-saving installation

Applications

• Powerboats, sport boats, bay boats, and more

• Coastal cruising and offshore conditions

• Replacement or upgrade to existing trim tab systems

Technical Specifications:

What’s Included in the Box:

• (2) 12-gauge stainless steel standard finish trim tab blades

• (2) 12V actuators with 6' leads and Deutsch connectors

• (1) Tactile LED Indicator Switch Kit (Keypad and Control Box)

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with mechanical gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware

Installation Pro-Tip:

For a 24-inch wide tab, ensuring a perfectly flat mounting surface is critical. If your transom has a slight curve, do not force the hinge to bend; instead, use a marine-grade shim or additional 3M 5200 sealant to fill any gaps. To maximize efficiency, mount the tabs as far outboard as possible (usually 3–4" from the chine), but ensure they remain at least 8 inches away from the propeller to avoid inducing cavitation.
