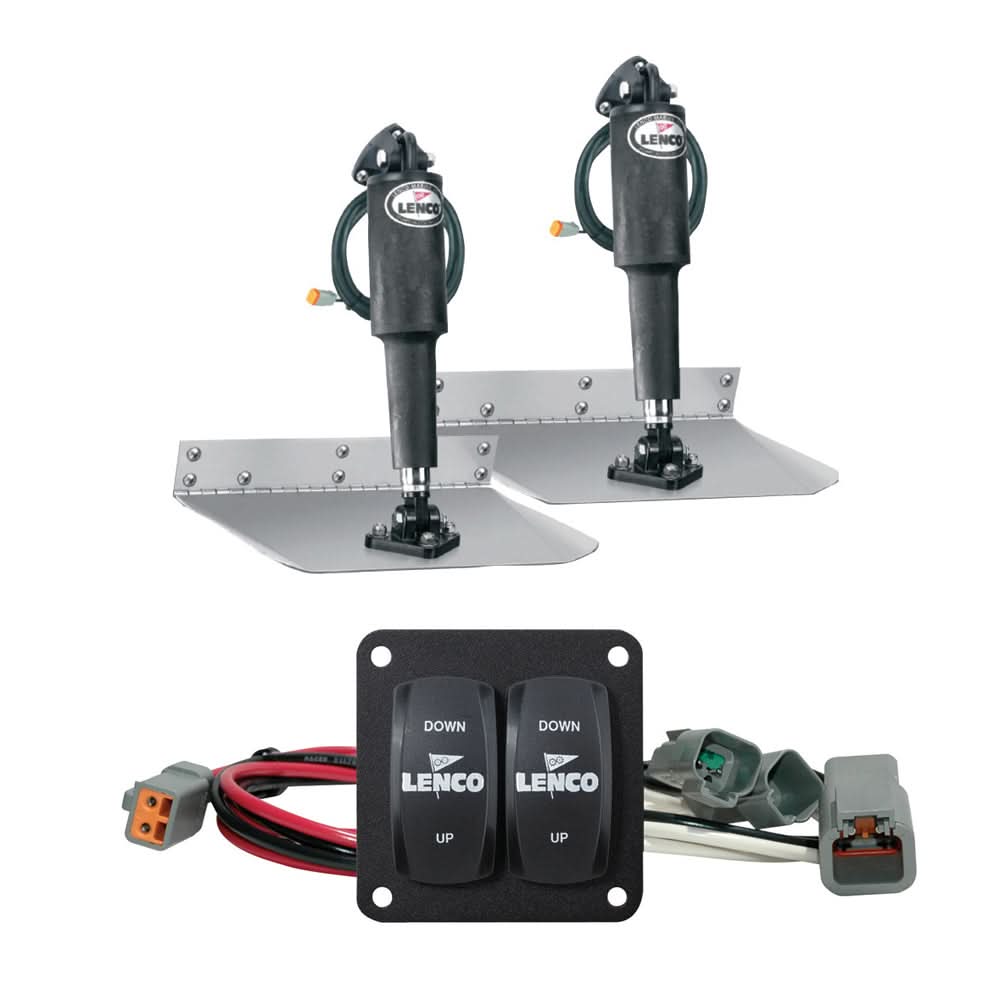

Lenco 9" x 12" Standard Trim Tab Kit w/Double Rocker Switch - 15101-104

Lenco 9" x 12" Standard Trim Tab Kit w/Double Rocker Switch - 15101-104

Improve your boat’s performance and handling with the Lenco 15101-104 9" x 12" Standard Trim Tab Kit featuring a Double Rocker Switch. Designed for boats from 16' to 25', this complete 12V electric trim tab system delivers smoother rides, faster planing, improved fuel efficiency, and greater stability in rough water conditions.

Built with durable 12-gauge stainless steel trim tab blades and fast-response electric actuators, the Lenco trim tab system provides instant adjustments with fully submersible waterproof connections for reliable marine performance. The included Double Rocker Switch offers easy and precise trim control from the helm.

Perfect for center consoles, fishing boats, and recreational vessels, the Lenco 15101-104 trim tab kit helps reduce bow rise, improve visibility, and optimize overall ride comfort.

Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.

Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.

Core Technology & Performance

• Instant-Response Electric Actuators: Features Lenco's signature electric ballscrew design, which responds immediately to helm inputs and is three times more powerful than traditional hydraulic rams.

• Heavy-Duty Stainless Blades: The 12-gauge, 304 stainless steel planes feature a 5/8" flared trailing edge and a rugged 1/8" hinge pin, providing optimal lift and enduring heavy wave impact.

• Double Rocker Switch: Includes Lenco's standard double rocker switch panel with an integrated power connector, allowing for independent control of the port and starboard tabs.

• Submersible Plug & Play Layout: The system utilizes fully waterproof Deutsch connectors on all wiring harnesses, simplifying installation and eliminating bare wire splicing at the transom.

Technical Specifications

In The Box

• (2) 12-Gauge Stainless Steel Standard Finish Blades

• (2) Lenco 15054-001 Actuators with 6’ Leads

• (2) 20-Foot Actuator Extension Harnesses

• (1) Lenco Double Rocker Switch Panel

• All Stainless Steel Mounting Hardware & Brackets

Installation Tip: When mounting the upper hinge of the actuator to the transom, verify that you have a minimum of 14 inches of vertical clearance on your transom from the bottom of the hull. Use a generous amount of marine-grade polyurethane sealant in all screw holes to prevent transom rot.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
