Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit w/ LED Indicator Switch Kit 12V - RT19X14XDI
Manufacturer Part #: RT19X14XDI
Couldn't load pickup availability
Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit – 12V with LED Indicator Switch Kit (RT19X14XDI)
The Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit (Model RT19X14XDI) is designed for serious boaters seeking maximum stability, handling, and performance in all water conditions. Featuring extra-large 19" x 14" stainless steel trim tabs and heavy-duty 12V actuators, this kit is built to withstand the toughest marine environments while delivering precise control and superior lift for your vessel.
This package includes an LED indicator switch kit, giving the operator real-time visual feedback on trim tab deployment for more accurate and confident adjustments. Lenco’s extreme-duty trim tabs are ideal for larger boats, offshore vessels, and boats carrying heavy loads, providing smoother acceleration, improved planing, reduced porpoising, and enhanced fuel efficiency.
Engineered for durability and corrosion resistance, this trim tab kit performs reliably in both freshwater and saltwater. Whether navigating rough waters, hauling cargo, or maximizing performance on the open sea, the RT19X14XDI Extreme Duty Trim Tabs ensure your boat rides level, handles better, and operates efficiently.
Key Features:
-
Lenco 19" x 14" stainless steel extreme duty trim tabs
-
Heavy-duty 12V actuators for maximum reliability
-
Includes LED indicator switch kit for precise, real-time control
-
Reduces porpoising and improves planing for smoother rides
-
Enhances fuel efficiency and overall boat performance
-
Corrosion-resistant construction for freshwater and saltwater use
-
Ideal for offshore, performance, and larger recreational boats
## Technical Specifications
| Feature | Details |
| Model Number | RT19X14XDI |
| Blade Size | 19" Length (depth) x 14" Width (hinge) |
| Boat Length Range | 23' to 50' (Varies by engine configuration) |
| Blade Material | Heavy-duty 10-Gauge 304 Stainless Steel |
| Actuators | 4 XD Extreme Duty Actuators (Dual per tab) |
| Hinge Pin | 3/8" diameter stainless steel |
| Voltage | 12V DC |
| Switch Included | Yes - LED Indicator Tactile Switch Kit |
### Why the "Extreme Duty" (XD) Series?
The XD series is built for boats that "don't back away from rough sea conditions." It offers significant structural upgrades:
-
Dual Actuators: Each tab is powered by two actuators, providing double the force and structural rigidity to prevent blade flexing under extreme hydraulic pressure.
-
Thicker Steel: Uses 10-gauge stainless steel (thicker than the 12-gauge used in standard kits) to prevent warping.
-
Electro-Polished Finish: Mirror-finish blades provide maximum protection against saltwater corrosion and barnacle growth.
-
Full Back Plate: Includes a massive transom back plate and adjustable C-channel mounting brackets for maximum strength and load distribution.
### LED Indicator Switch Kit Features
The included LED Indicator Switch is a major upgrade for high-speed operation:
-
Real-Time Feedback: Dual high-intensity LED displays show the exact position of your tabs at all times.
-
Auto-Retract: Automatically raises the tabs when the engine is turned off to prevent damage
-
Ambient Light Sensor: A photo eye automatically adjusts LED brightness for visibility in direct sunlight or dimming at night.
-
Self-Diagnostic: Includes a self-check feature to ensure the system is functioning correctly upon startup.

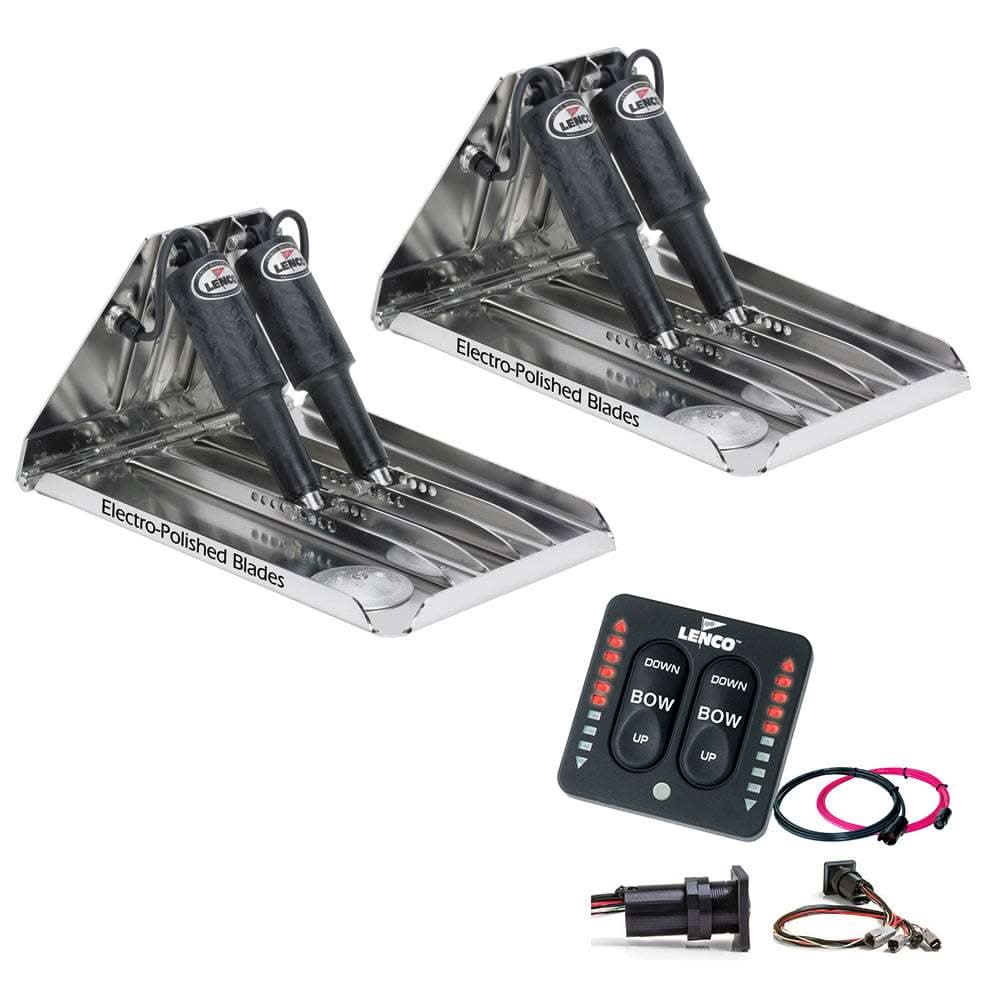

### Kit Contents
-
(2) 10-Gauge Electro-Polished Blades with 1" turned-up edges.
-
(4) 15056-001XD Extreme Duty Actuators with 6' leads.
-
(1) LED Indicator Tactile Switch Kit (Keypad and Control Box).
-
(2) 3.75" Sacrificial Anodes (Factory installed for corrosion protection).
-
Note: Actuator extension harnesses (4 required) and transom mounting hardware are typically sold separately to match your boat's specific length.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : RT19X14XDI
