Lenco 17" x 12" Extreme Duty Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT17X12XDI

Lenco 17" x 12" Extreme Duty Performance Trim Tab Kit – 12V with LED Indicator Switch Kit (RT17X12XDI)

The Lenco 17" x 12" Extreme Duty Performance Trim Tab Kit (Model RT17X12XDI) is designed for boaters who need maximum stability, precision control, and superior handling in challenging marine conditions. Featuring 17" x 12" stainless steel trim tabs and heavy-duty 12V actuators, this kit provides exceptional lift and control, improving planing, reducing porpoising, and enhancing overall ride quality.

This kit comes with an LED indicator switch, allowing operators to monitor trim tab deployment at a glance for precise, real-time adjustments. Built for offshore, performance, and larger recreational boats, these extreme-duty trim tabs help optimize fuel efficiency, maintain a level ride, and improve handling in rough or uneven water conditions.

Lenco’s trim tabs are made from marine-grade, corrosion-resistant materials, ensuring reliable, long-lasting performance in both freshwater and saltwater environments. With professional-grade construction and easy installation, the RT17X12XDI trim tab kit gives boaters confidence, comfort, and control on every voyage.

Key Features:

• Lenco 17" x 12" stainless steel extreme-duty trim tabs

• Heavy-duty 12V actuators for reliable operation

• Includes LED indicator switch for precise, real-time control

• Improves planing, reduces porpoising, and enhances fuel efficiency

• Corrosion-resistant construction for freshwater and saltwater use

• Ideal for offshore, recreational, and performance boats

The Lenco RT17X12XDI Extreme Duty Trim Tab Kit provides professional-grade performance, giving boaters superior ride stability, handling, and confidence in all water conditions.

## Technical Specifications

### Key Performance Features

• Extreme Duty (XD) Construction: Unlike standard tabs that use 12-gauge steel, these use thicker 10-gauge stainless steel to prevent warping under high-speed hydraulic pressure.

• Superior Corrosion Resistance: The blades are electro-polished, which removes surface impurities and provides a high-gloss finish that resists saltwater corrosion and barnacle growth.

• Heavy-Duty Hardware: Features a 3/8" diameter stainless steel hinge pin and a full transom back plate for maximum strength and load distribution.

• Sacrificial Anodes: The kit comes factory-assembled with 3.75" R3 anodes to protect the stainless steel components from galvanic corrosion.

### LED Indicator Switch Kit

The "DI" in the part number signifies the inclusion of Lenco's premium LED Indicator Switch:

• Visual Feedback: High-intensity LEDs show you exactly where your tabs are positioned at a glance.

• Auto-Retract: Automatically raises the tabs to the full "Up" position when the engine's ignition is turned off, protecting them during trailering or storage.

• Light Sensing: Includes a photo eye that automatically dims the LEDs at night and brightens them in direct sunlight.

### Kit Contents

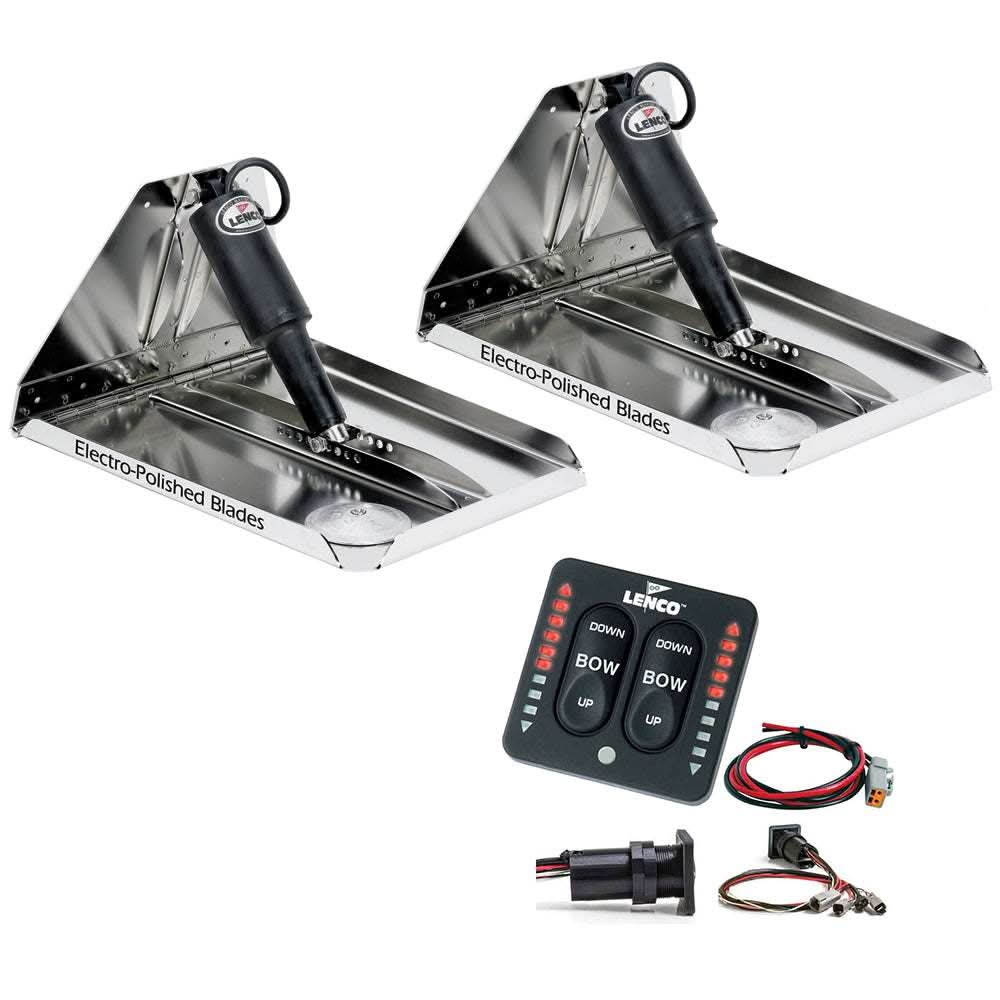

• (2) 10-Gauge Electro-Polished Blades (17" x 12")

• (2) 15056-001XD Extreme Duty Actuators with 6' leads

• (1) LED Indicator Tactile Switch Kit (Keypad and Control Box)

• (2) 3.75" R3 Sacrificial Anodes (installed)

• Note: Actuator extension harnesses (usually 20') and transom mounting bolts are typically supplied by the installer to match the boat's specific dimensions.
