Lenco 16" x 12" Standard Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT16X12I

Lenco 16" x 12" Standard Performance Trim Tab Kit with LED Indicator Switch Kit (12V) - RT16X12I

Engineered for those who push their boats to the limit, the Lenco RT16X12I Standard Performance Kit is built for speed, durability, and aggressive offshore handling.¹ This kit is a significant step up from standard mount sets, featuring electro-polished blades and a stouter hinge design to handle the higher pressures of performance boating.

The "RT" (Retail) kit includes everything you need in one box, most importantly the LED Indicator Switch Kit, giving you immediate, pinpoint control over your vessel’s running angle even in the roughest conditions.

Key Features and Benefits

• Standard Performance Design: Specifically built for boats that go "hard and fast." These tabs feature 1" turned-up edges and a 2" taper on the inside, reducing drag while providing maximum lift.

• Precision LED Indicator Switch: Never guess your tab position again.⁵ The included tactile switch features high-intensity LEDs that adjust to ambient light, showing you the exact status of your tabs even in bright midday sun.

• Upgraded Blade Strength: Constructed from 12-gauge 304 stainless steel with a thicker 1/4" diameter hinge pin, these blades offer enhanced structural integrity compared to entry-level models.

• Electro-Polished Finish: The mirror-like finish isn't just for looks; it provides an extra layer of protection against marine growth and saltwater corrosion, keeping your tabs operating smoothly for years.

• Instant-Response Actuators: Lenco’s 12V electric actuators provide immediate feedback. They are fully submersible, factory-sealed for life, and feature a built-in auto-retract function that safely stows the tabs when the power is turned off.

Technical Specifications

Why Choose the Standard Performance Series?

The Lenco RT16X12I is the ideal middle ground between recreational tabs and heavy-duty commercial gear. While a standard 12x12 tab might struggle to keep a performance hull level at high speeds, the 16-inch length of this kit provides increased leverage. This allows you to:

1. Correct Listing Instantly: Compensate for prop torque or uneven passenger weight without over-correcting.

2. Stay on Plane at Low Speeds: Keep the bow down and maintain a clear view of the horizon even when you need to throttle back in heavy chop.

3. Enhance Fuel Economy: By optimizing your boat's attitude, you reduce the wetted surface area and drag, leading to better MPG and less engine wear.

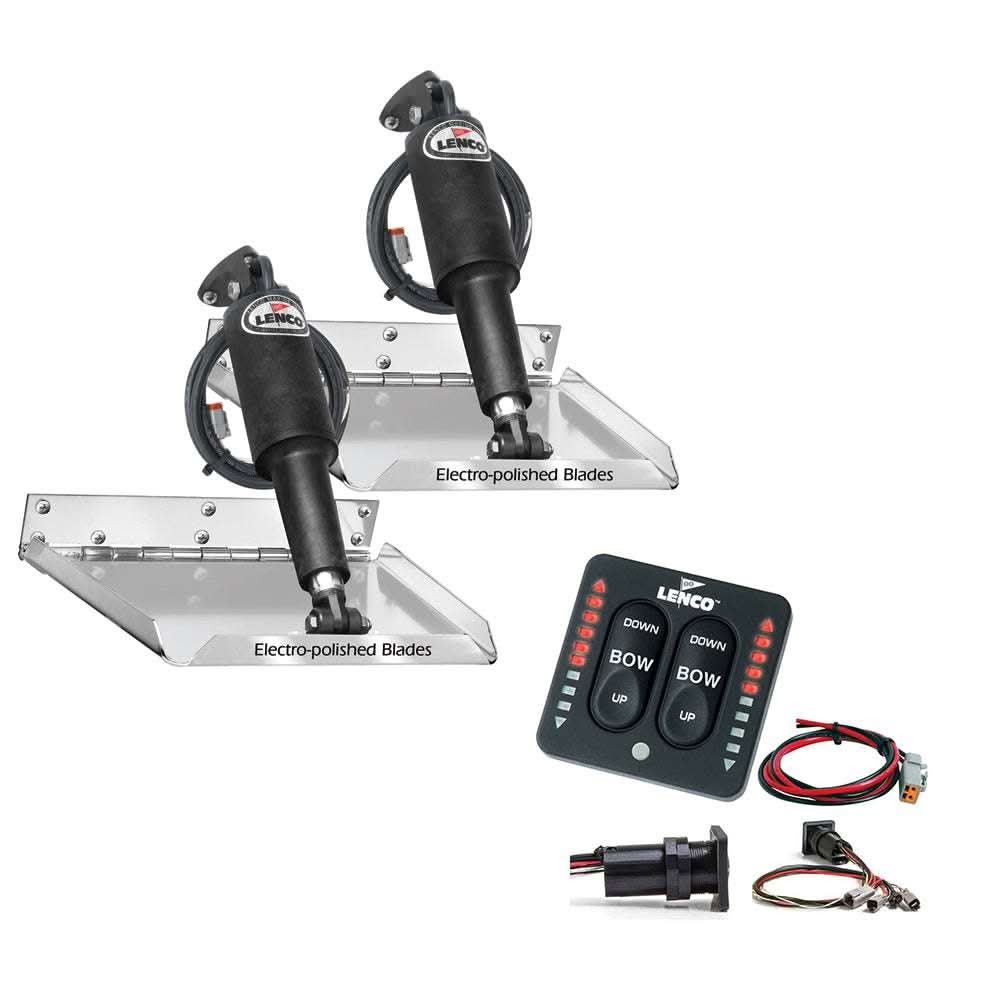

What’s Included in the Box?

• (2) 16" x 12" Electro-Polished 12-Gauge SS Trim Tab Blades

• (2) Standard Actuators with 6' leads and Deutsch Plugs

• (1) Tactile LED Indicator Switch Kit (Control box & keypad)

• (2) 20' Actuator Extension Wiring Harnesses

• (2) Upper Mounting Brackets with Gland Seals

• All necessary stainless steel mounting hardware

Professional Marine Grade Quality

Lenco Marine is trusted by top boat builders worldwide. With no hydraulic fluids to leak and a simple plug-and-play installation, the RT16X12I kit is the ultimate performance upgrade for your center console, walk-around, or high-speed cruiser.
