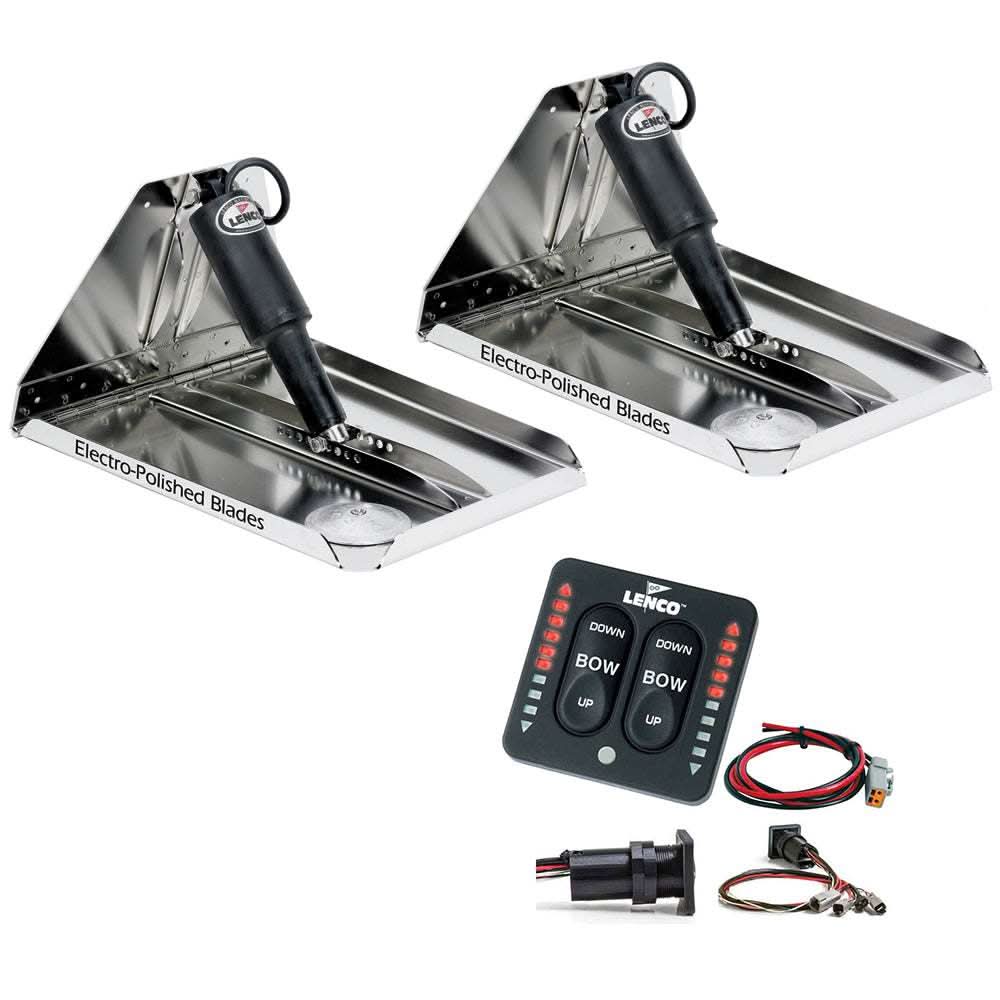

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT16X12HDI

## Technical Specifications

### Why Choose the "Heavy Duty" (HD) Series?

The RT16X12HDI is built for boats that frequently operate at high speeds in rough sea conditions.³ Its structural upgrades differentiate it from standard recreational kits:

• Reinforced Mounting: Factory-assembled with a massive transom back plate and adjustable C-channel mounting brackets. This design offers far more stability and thru-bolt strength than standard mounting tabs.

• Extreme Duty Actuators: Features actuators with 5/16" stainless steel bolts and solid stainless steel billet rams. These are chemically polished and designed to be fully submersible and maintenance-free.

• Superior Blade Geometry: The 12-gauge blades feature 1" turned-up edges and an 85-degree inside taper, which increases lift efficiency and prevents blade warping under pressure.

• Corrosion Protection: Every kit includes factory-installed 3.75" sacrificial zinc anodes to protect the stainless steel components from galvanic corrosion.

### LED Indicator Switch Benefits

The included LED Indicator Switch (the "I" in the model name) is Lenco’s top-tier control interface:

• Precise Position Monitoring: Two columns of high-intensity LEDs show the exact deployment of each tab, allowing you to return to your preferred trim setting instantly.

• Auto-Retraction: Automatically pulls the tabs into a fully up position when the ignition is turned off, protecting the actuators and blades during storage or transport.

• Smart Lighting: A built-in photo eye reads ambient light to automatically dim the LEDs at night or brighten them in direct sunlight.

### Kit Contents

• (2) 12-Gauge Electro-Polished Blades (16" x 12")

• (2) 15056-001XD Extreme Duty Actuators with 6' leads

• (1) Tactile LED Indicator Switch Kit (Keypad and Control Box)

• (2) 20' Actuator Extension Wiring Harnesses

• (2) 3.75" Zinc Sacrificial Anodes (pre-installed)

• Note: Boat-mounting hardware (bolts for the transom) is typically supplied by the installer.
