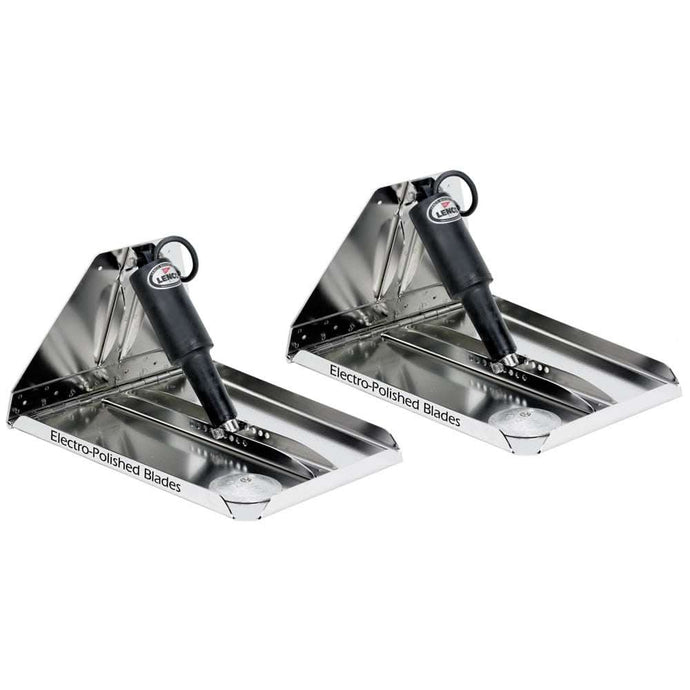

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit (Switch sold separately) - 15043-101

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit (12V) - 15043-101

Note: This specific model is a "Heavy Duty Performance" kit and typically requires a switch kit to be purchased separately.

The Lenco 15043-101 is engineered for high-performance boats and commercial vessels (20' to 38') that operate in rougher water at higher speeds. Unlike standard kits, the Heavy Duty (HD) series features reinforced components and Extreme Duty actuators designed to handle the increased stress of aggressive offshore use.

With its 16" deep by 12" wide blades, this kit provides a longer chord length for exceptional lift and high-speed stability, ensuring your hull remains level and efficient even when the conditions turn sour.

Key Features and Benefits

• Extreme Duty (XD) Actuators: Includes Lenco’s most robust 12-volt actuators with 5/16" stainless steel mounting bolts. These are built to provide instant response and maintenance-free operation under heavy loads.

• Heavy Duty Blade Construction: The 16" x 12" blades are laser-cut from 12-gauge 304 stainless steel with a 1" turned-up trailing edge for added strength and a 5-degree taper on the inside.

• Electro-Polished Finish: Every blade is electro-polished for a mirror-like finish that offers superior resistance to corrosion and marine growth compared to standard raw stainless steel.

• Integrated Sacrificial Anodes: Factory-installed 3.75" sacrificial zinc anodes come standard to protect your system from electrolysis in saltwater environments.

• Full Transom Back Plate: Features a full-size back plate with welded-on upper and adjustable lower C-channel mounting brackets for maximum structural integrity.

Technical Specifications

Why Choose the Heavy Duty Performance Series?

Standard trim tabs are perfect for recreational cruising, but the HD Series is for boaters who demand more. The 16-inch depth (the distance the tab extends from the transom) provides a massive amount of leverage. This extra "reach" allows for more significant pitch correction with smaller movements, which is critical for staying on plane at high speeds or in heavy following seas.

What’s Included in the Box?

• (2) 16" x 12" Heavy Duty Electro-Polished Stainless Steel Blades

• (2) 15055-001 XD Extreme Duty Actuators with 6' leads

• (2) 20' Actuator Extension Wiring Harnesses

• (2) Factory-installed 3.75" Zinc Anodes

• Lenco Owner's / Installation Manual

Compatibility Note

This kit (15043-101) does not include a switch kit. To complete your installation, it is recommended to pair this with Lenco’s LED Indicator Integrated Tactile Switch Kit (Part #15170-001) or the Standard Tactile Switch Kit (Part #15069-001).
