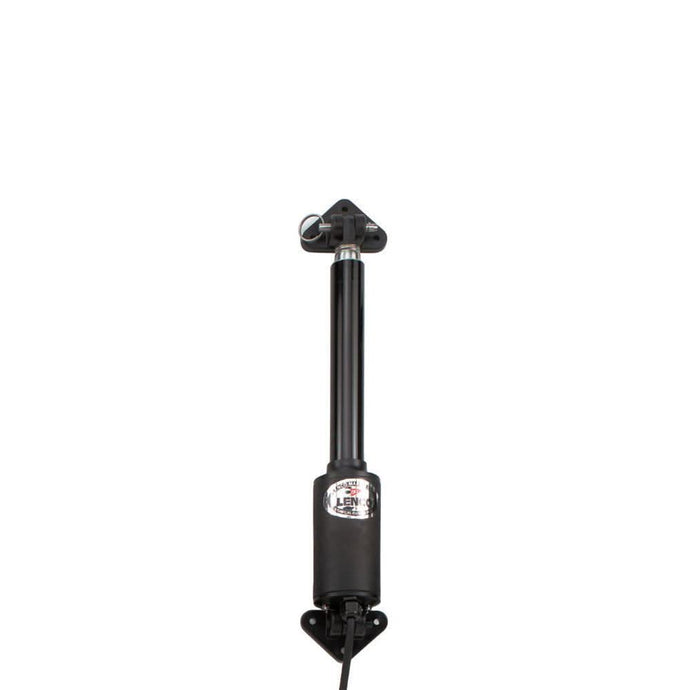

Lenco 12V 20 inch-28 inch Hatch Lift without Switch - 20764-001
Manufacturer Part #: 20764-001
Couldn't load pickup availability
Lenco 12V 20–28" Hatch Lift with Switch – 20764-001
The Lenco 12V Hatch Lift (Model 20764-001) is a versatile and powerful solution for effortlessly opening and holding boat hatches, compartments, and lids ranging from 20 to 28 inches. Designed for marine applications, this hatch lift provides smooth, controlled movement and secure positioning, enhancing both convenience and safety on board.
Equipped with a 12V actuator and integrated switch, the system allows for easy operation directly from your helm or desired location. The durable construction ensures reliable performance in harsh marine environments, with corrosion-resistant materials built to withstand freshwater or saltwater exposure.
Ideal for boats, RVs, or custom marine projects, the Lenco 20764-001 hatch lift reduces strain and improves accessibility, making hatch operation effortless for daily use or during extended voyages.
Key Features:
-
Lenco 12V hatch lift for hatches 20–28 inches
-
Includes integrated switch for easy control
-
Smooth, controlled lifting and holding action
-
Corrosion-resistant construction for marine use
-
Suitable for boats, RVs, and custom compartments
-
Enhances convenience, safety, and accessibility on board
The Lenco 20764-001 Hatch Lift delivers reliable, professional-grade operation, making it easier to open, close, and secure hatches in marine and recreational applications.
## Technical Specifications
| Feature | Details |
| Model Number | 20764-001 (also known as HL-800S) |
| Stroke Length | 8 Inches |
| Retracted Length | 20 Inches (Center-to-Center) |
| Extended Length | 28 Inches (Center-to-Center) |
| Lifting Capacity | 500 lbs (226.8 kg) |
| Voltage | 12V DC |
| Amp Draw | 10 Amps at 12V |
| Wiring | 2' Lead with Deutsch Connector |
### Key Features
-
Clutchless Ball Screw Design: Unlike cheaper actuators, Lenco uses a ball screw that will not "drift" under load. It is designed to run in perfect sync for dual-lift applications (two actuators on one hatch).
-
Self-Limiting Motor: The ball screw spins freely when the hatch is fully opened or closed. This eliminates the need for internal limit switches and prevents motor burnout if the hatch is obstructed.
-
Corrosion Proof Construction: Features clear anodized aluminum tubing and high-impact Vandar mounting brackets with stainless steel pull pins for maximum life in saltwater environments.
-
Locking Safety: The stainless steel ram is designed to lock in any position, ensuring the hatch stays exactly where you put it, even in rough seas.
-
Ignition Protected: CE-certified and ABYC compliant, making it safe for use in gasoline engine compartments.
Installation & Usage Tips
-
No Switch Included: This model is the actuator only. If you are doing a new installation, you will need to purchase a Lenco Single Rocker Switch (#15096-001) or Dual Rocker Switch (#15098-001).
-
Mounting Angle: For maximum power, the lift should be installed as close to 90° (vertical) as possible., Lifting capacity decreases significantly if the mounting angle is less than 45° when retracted.
-
Emergency Access: In the event of a total power failure, the kit includes stainless steel pull pins.11 It is highly recommended to rig these pins with a lanyard to a point outside the hatch so you can manually release the lift to gain access.
Important Installation Note: For optimal power, install the actuator as close to 90° as possible. To prevent damage, ensure the hatch does not bottom out before the lift is fully retracted; shimming may be required for a perfect fit.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : LENCO MARINE
Manufacturer Part No : 20764-001
UPC : 874847001595
