Lenco 12" x 9" Standard Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT12X9I

Lenco 12" x 9" Standard Performance Trim Tab Kit with LED Indicator Switch Kit 12V - RT12X9I

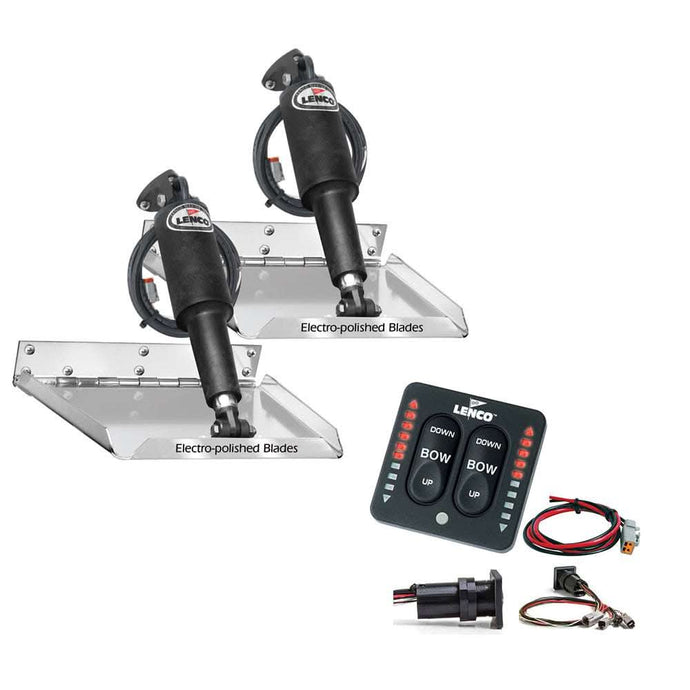

The Lenco RT12X9I is a comprehensive Standard Performance Trim Tab Kit designed for boaters who demand immediate response and high durability. This kit features 12" x 9" electro-polished stainless steel planes and comes bundled with Lenco’s premium LED Indicator Switch Kit, providing a complete solution for correcting listing, reducing porpoising, and improving fuel efficiency.

Superior Performance Series Design

The "Performance" series goes a step beyond standard tabs with electro-polished blades.³ This process creates a mirror-like finish that is not only aesthetically pleasing but also provides superior resistance to corrosion and marine growth. The blades feature a 1" turned-up edge and a 2" taper on the inside to provide maximum lift and structural rigidity for aggressive boating in rough seas.

Key Features:

• LED Indicator Switch Kit: Includes a tactile, waterproof keypad with two high-intensity LED displays that show the exact position of your tabs at all times.

• Auto-Retract & Dimming: The switch automatically retracts the tabs when power is removed to prevent damage during trailering. An integrated photo eye adjusts LED brightness for perfect visibility in any light condition.

• Instant Response Actuators: Lenco’s electric ballscrew design is significantly faster than hydraulic systems, providing immediate reaction to helm commands without the mess of hydraulic fluid.

• Maintenance-Free: The actuators are fully submersible, sealed for life, and constructed from high-impact, UV-resistant nylon.

• Electro-Polished 304 Stainless: 12-gauge stainless steel construction with a thicker reinforced hinge and a 1/4" diameter hinge pin for extreme durability.

Benefits

• Reduces bow rise and stern squat

• Helps correct side-to-side list

• Enhances fuel efficiency and performance

• Provides intuitive LED visual feedback for tab position

• Easy integration and reliable operation

Applications

• Powerboats, sport boats, and cuddy cabins

• Center console and fishing boats

• Coastal cruising and offshore conditions

• Replacement or upgrade to existing trim tab systems

Technical Specifications:

What’s Included in the Box:

• (2) 12-gauge stainless steel electro-polished trim tab planes

• (2) 12V actuators with 6' leads and Deutsch plugs

• (1) Tactile LED Indicator Switch Kit (Keypad and Control Box)

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with mechanical gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware and installation manual

Installation Pro-Tip:

For the RT12X9I, which is wider than it is long (12" wide x 9" long), ensure you have enough horizontal flat surface on your transom. This "wide-span" configuration is excellent for boats that need a lot of lift at lower speeds. When installing, use a high-quality marine sealant like 3M 5200 on all screw holes and where the actuator wire passes through the transom to ensure a permanent, watertight seal.
