Lenco 12" x 18" Standard Trim Tab Kit with LED Indicator Switch – 12V – TT12X18I

The Lenco 12″ x 18″ Standard Trim Tab Kit with LED Indicator Switch Kit – 12V (Model TT12X18I) is a complete marine electric trim tab system engineered to improve your boat’s ride quality, handling, and stability in a variety of sea conditions. Designed for small to mid-size powerboats, center consoles, cuddy cabins, and sport boats, this 12 V kit helps reduce bow rise, correct list, and promote more level, efficient cruising.

Built for marine environments, the system includes durable 12-gauge laser-cut stainless steel trim tab plates and fully submersible electric actuators with 316 stainless steel rams and UV-resistant housings for long-lasting performance. The LED indicator switch kit provides real-time tab position feedback at the helm with high-intensity LEDs that automatically adjust brightness based on ambient light. A built-in retract feature returns tabs to a safe stowed position when power is removed, and the plug-and-play wiring harness simplifies installation.

Key Features

• Complete 12″ x 18″ trim tab kit with stainless steel tabs

• 12 V DC electric actuators with sealed, submersible design

• LED indicator switch kit shows tab position at the helm

• Self-locking ballscrew actuators prevent drift even under load

• Corrosion-resistant hardware and mounts

• Plug-and-play wiring harness with Deutsch connectors

• Built-in retract and self-check features

• Includes actuators, trim tab blades, mounting brackets, extension harnesses, and hardware

Benefits

• Enhances boat handling, stability, and comfort

• Helps improve fuel efficiency by optimizing trim

• Provides precise control and visual feedback at the helm

• Designed for reliable operation in saltwater and freshwater

Applications

• Powerboats, bay boats, sport boats

• Center consoles, cuddy cabins

• Coastal and offshore cruising

• Replacement or upgrade of factory trim tab systems

Technical Specifications:

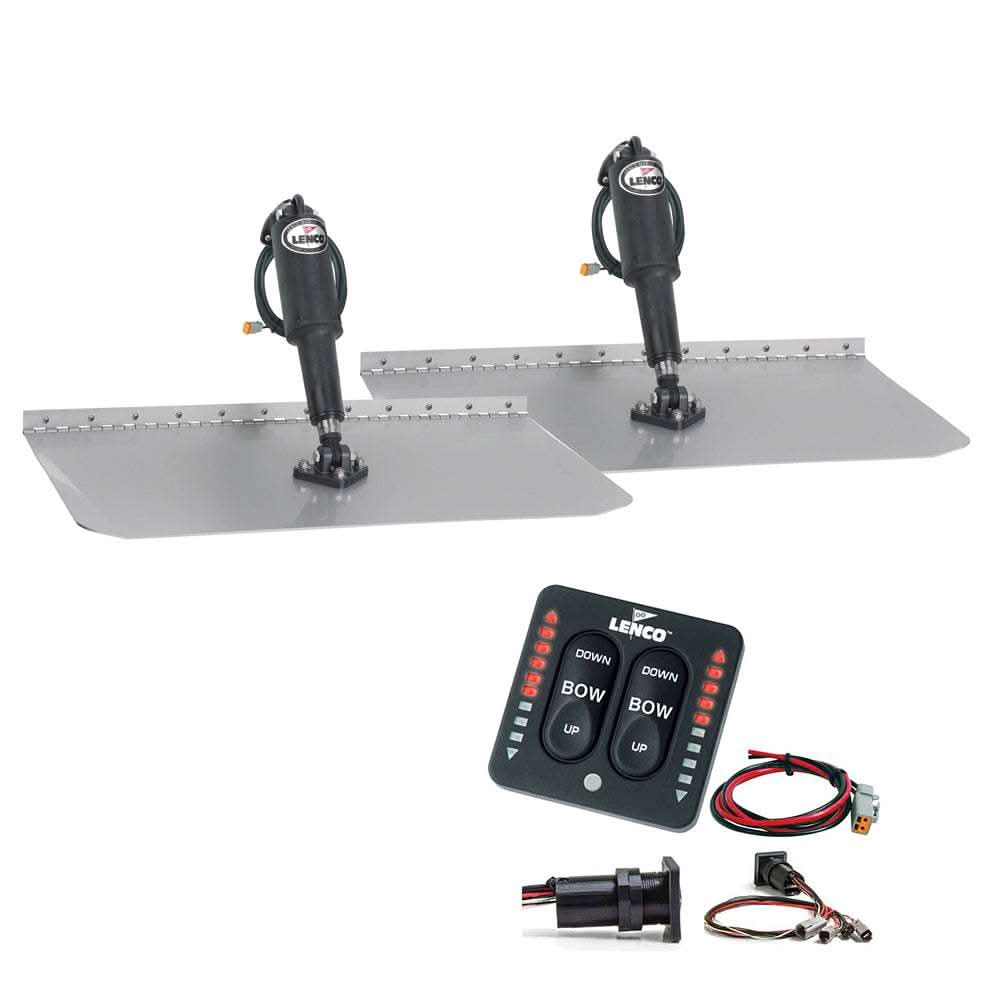

What’s Included in the Box:

• (2) 12-gauge stainless steel standard finish trim tab blades

• (2) 12V actuators with 6' leads and Deutsch connectors

• (1) Tactile LED Indicator Switch Kit (Keypad and Control Box

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with mechanical gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware and manual

Installation Pro-Tip:

For an 18-inch wide tab, ensuring the transom surface is flat is vital. If your transom has a slight radius, use extra 3M 5200 marine sealant to create a custom gasket behind the hinge to prevent stress on the stainless steel. To get the best performance, mount the tabs as far outboard as possible (usually 3–4" from the side) while ensuring they are at least 8 inches away from the propeller to avoid air cavitation.
